Power Steering Pressure Switch: Locations

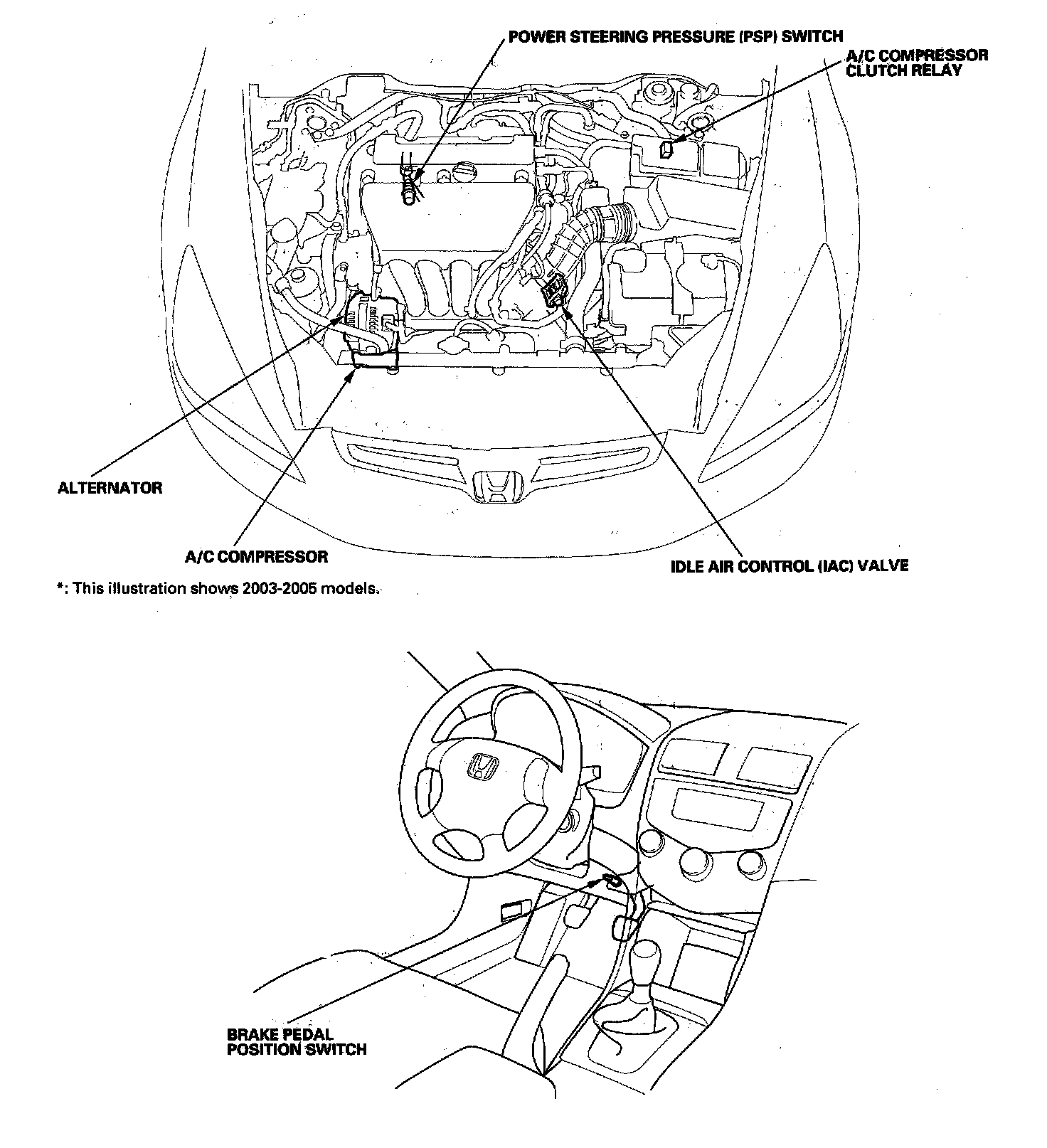

Idle Control System - Component Location Index:

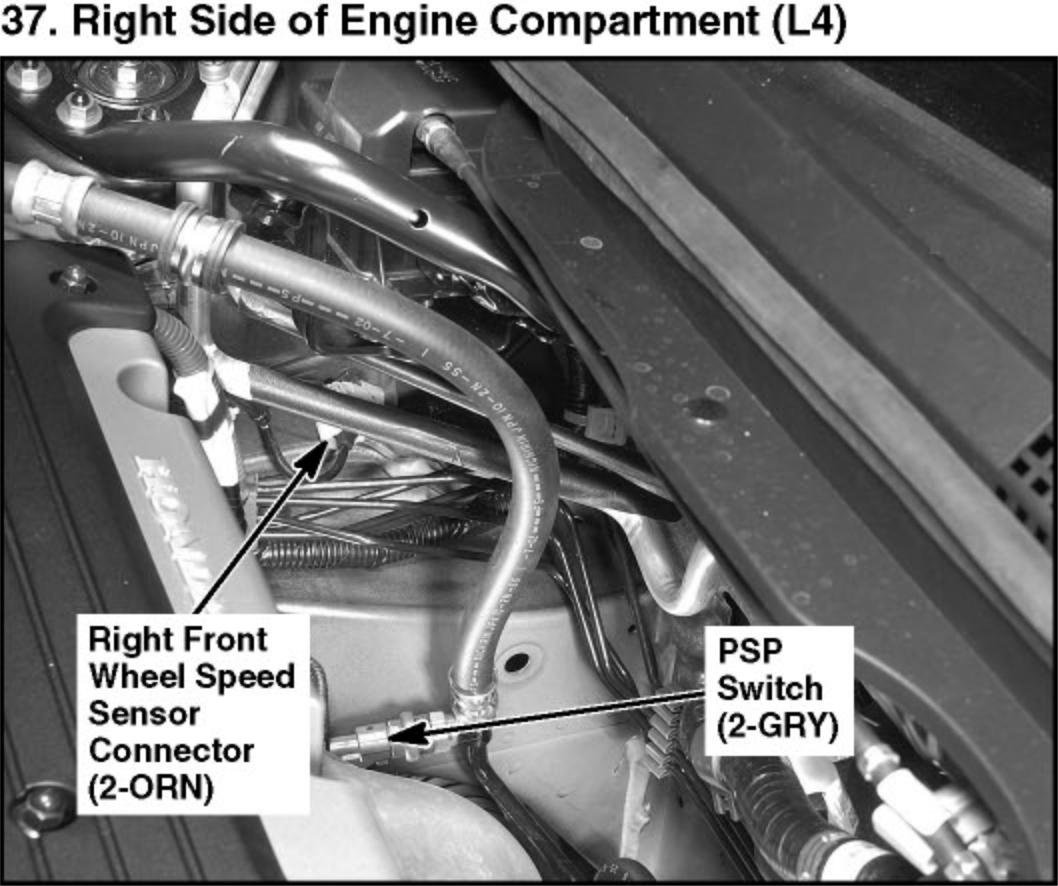

37. Right Side of Engine Compartment (L4):
