LEMON Manuals
: Even more car manuals for everyone
Home
>>
Honda
>>
2006
>>
Accord L4-2.4L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
>>
Component Locations
>>
Under-dash Fuse/Relay Box
Under-dash Fuse/Relay Box

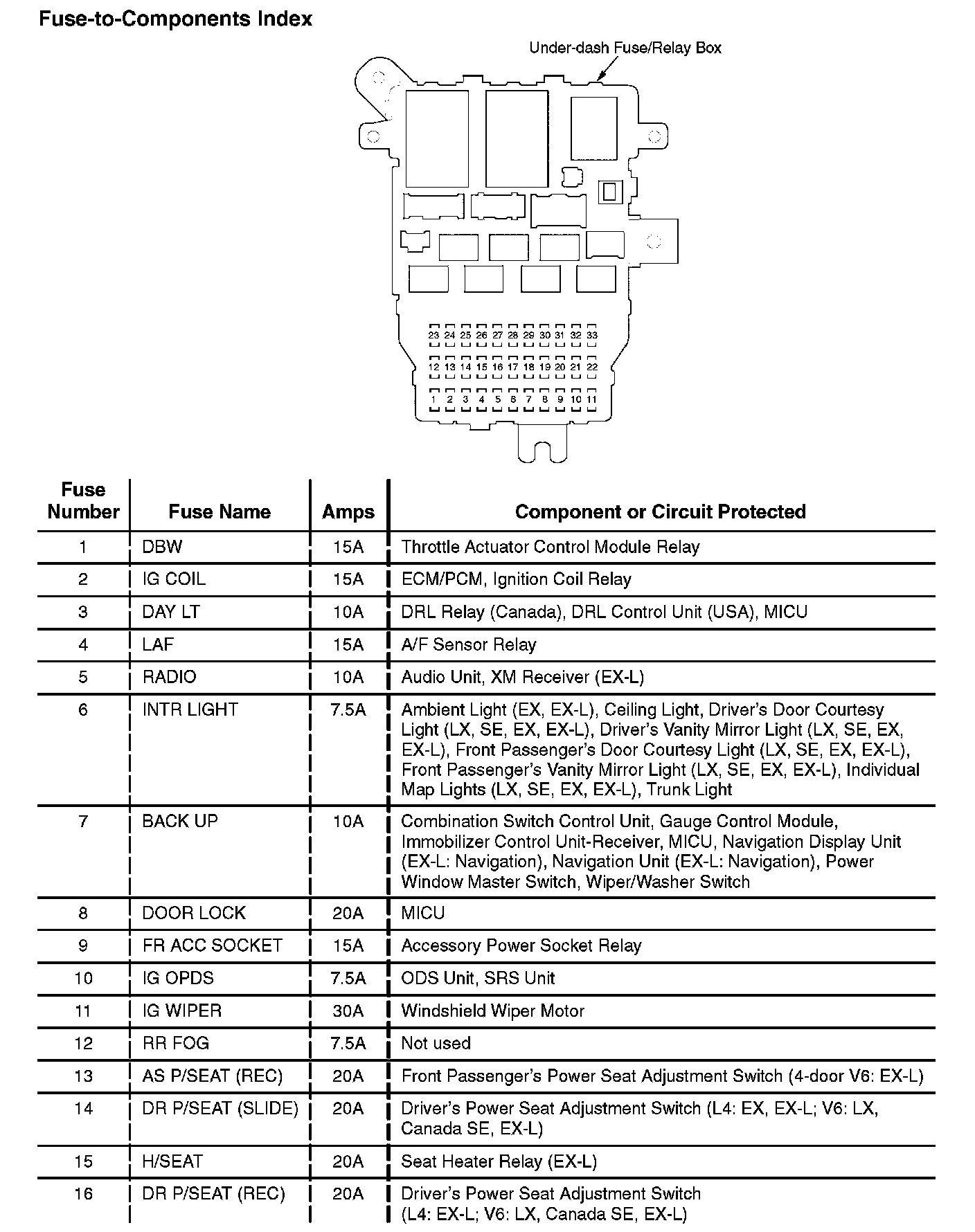

Under-dash Fuse/Relay Box - Part 1:

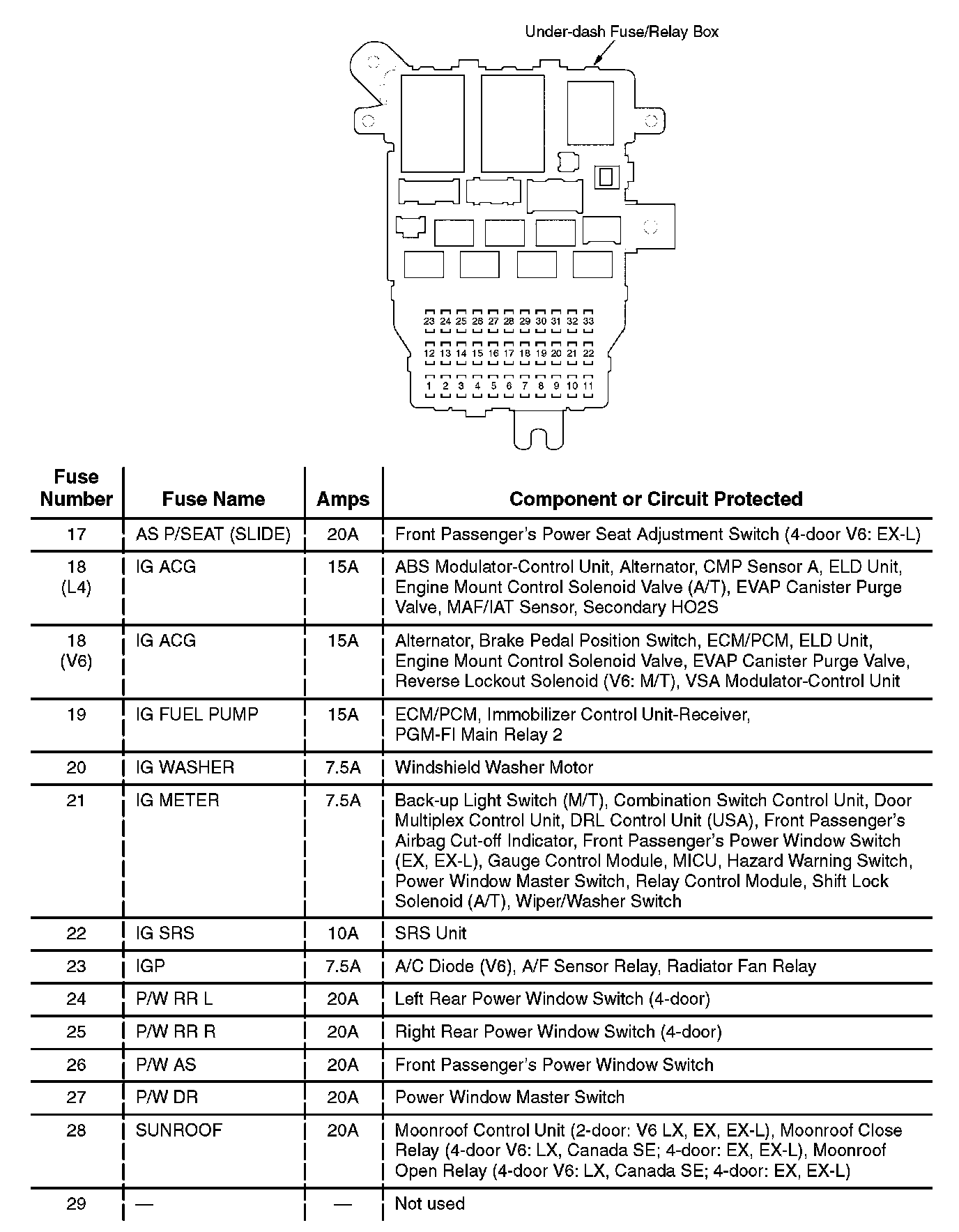

Under-dash Fuse/Relay Box - Part 2:

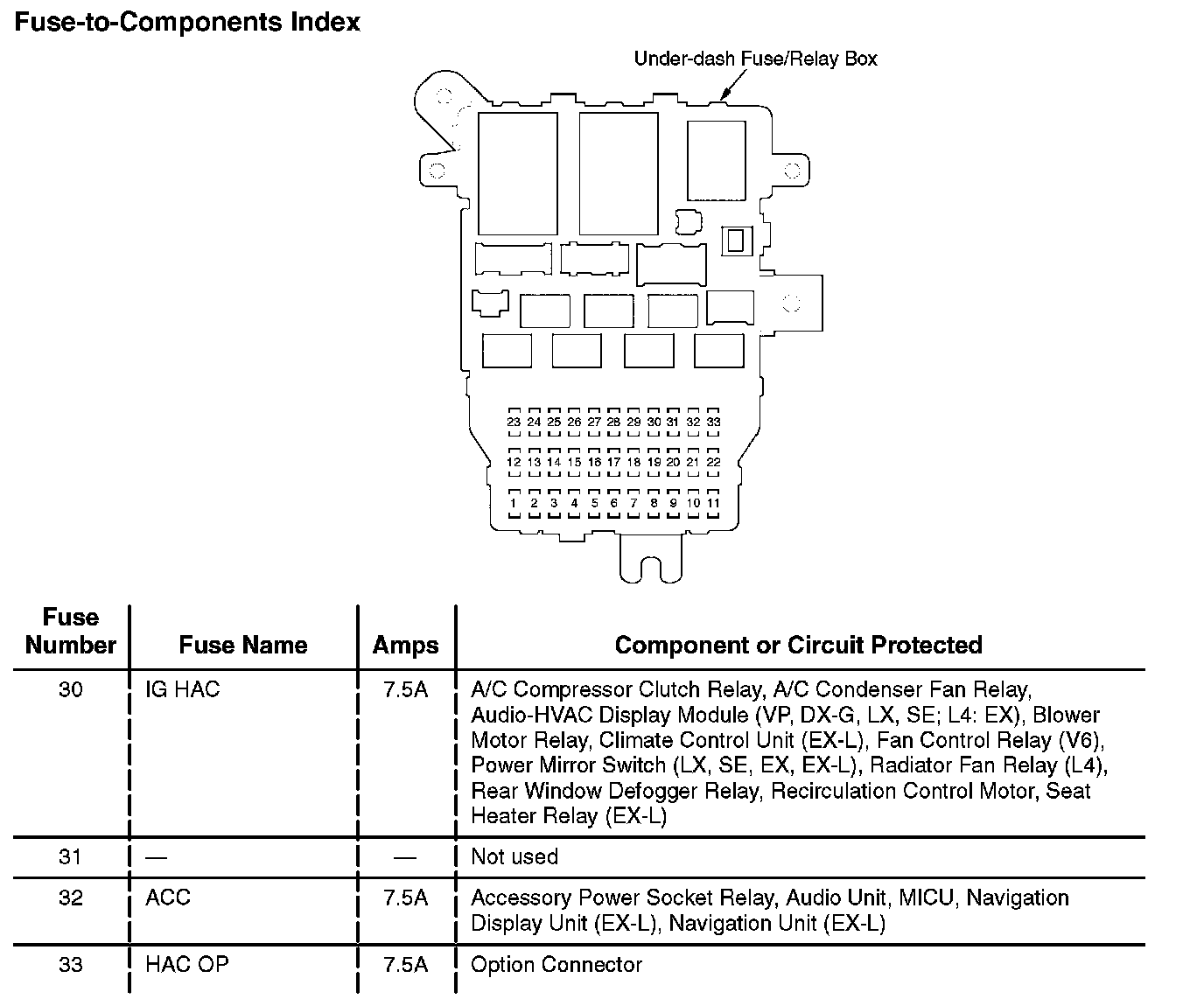

Under-dash Fuse/Relay Box - Part 3:
