Steering Control Module: Locations

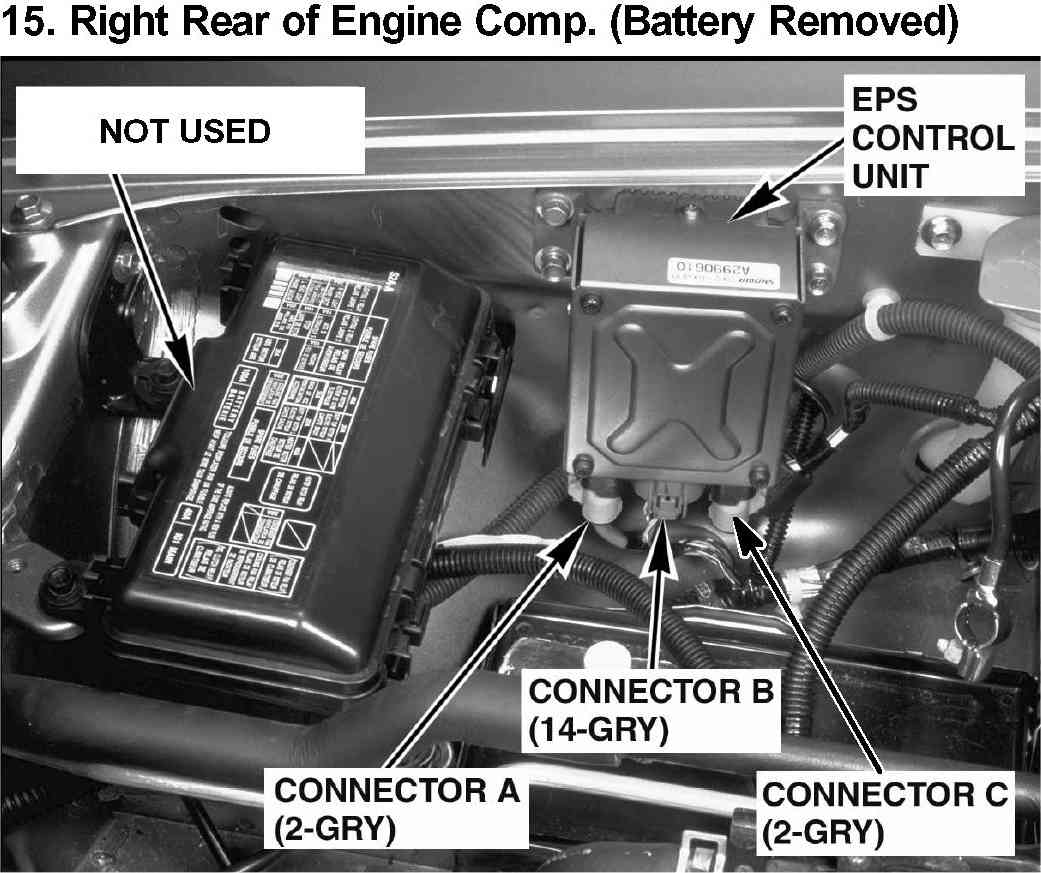

15. Right Rear of Engine Comp. (Battery Removed):

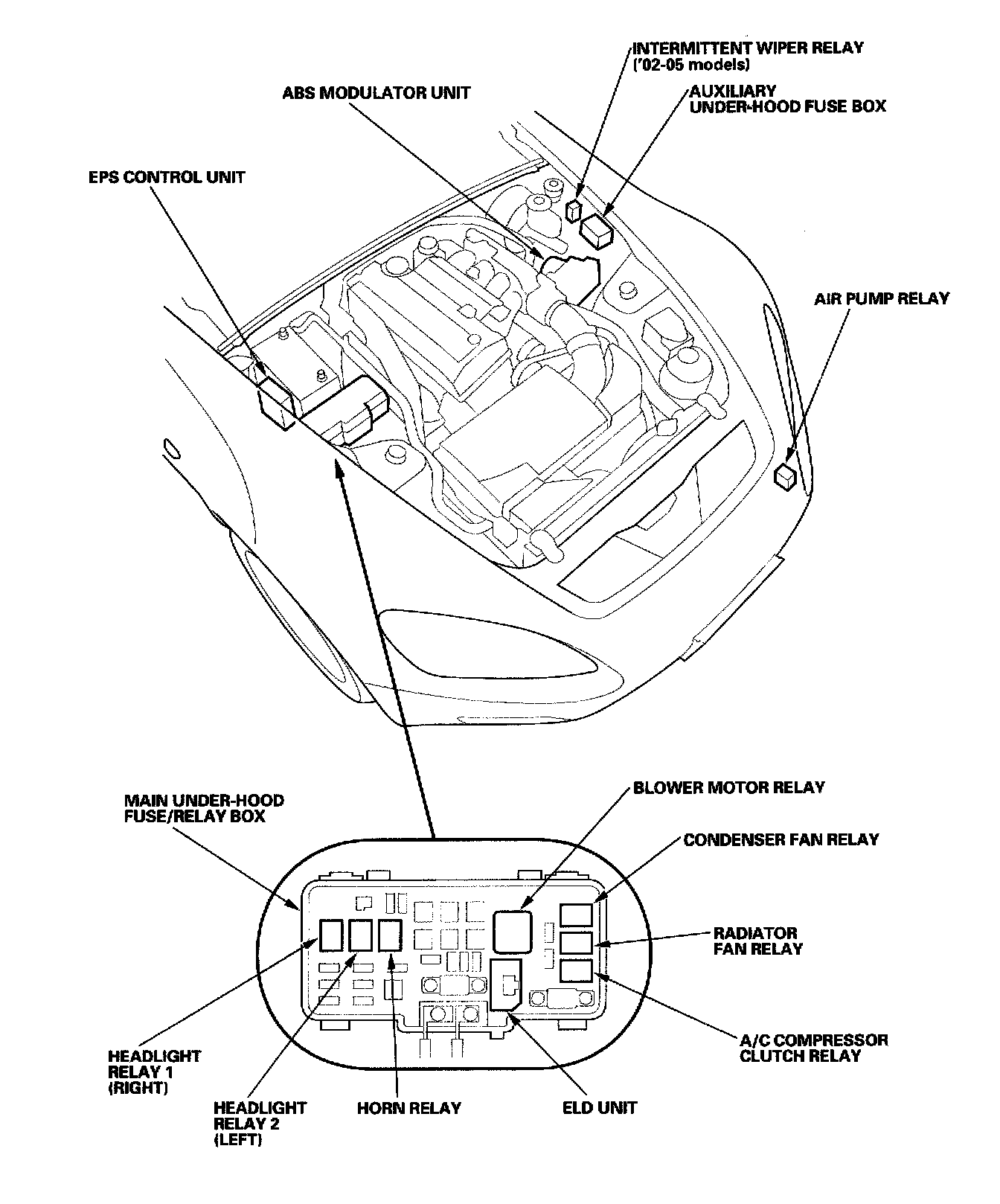

Relay And Control Unit Locations - Engine Compartment:



Idle Control System - Component Location Index:
