Brake Lamp: Service and Repair

Taillight/Brake Light LED Replacement

'04-05 models

1. Remove the taillight.

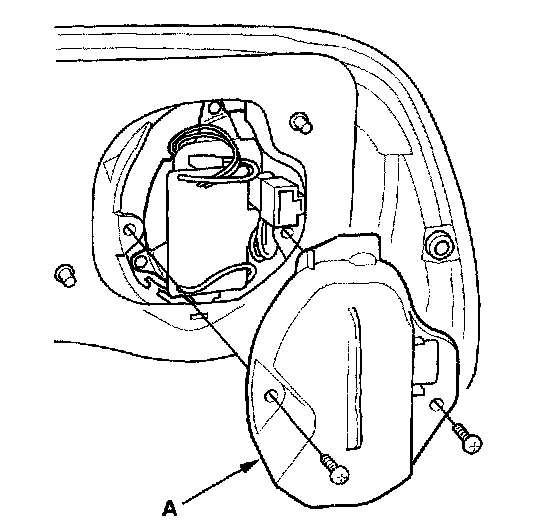

2. Remove the two screws and cover (A).

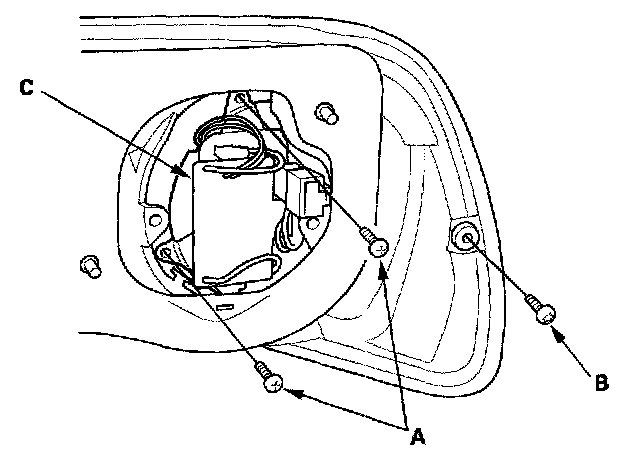

3. Remove the two screws (A) and the torx screw (B), then pull out the LED (C).
4. Before installing the taillight, check the gasket If it is distorted or stays compressed, replace it.
5. Install the new bulb in the reverse order of removal.
