Home >> Honda >> 2005 >> Pilot V6-3.5L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Shift Interlock >> Shift Interlock Relay >> Locations

Shift Interlock Relay: Locations

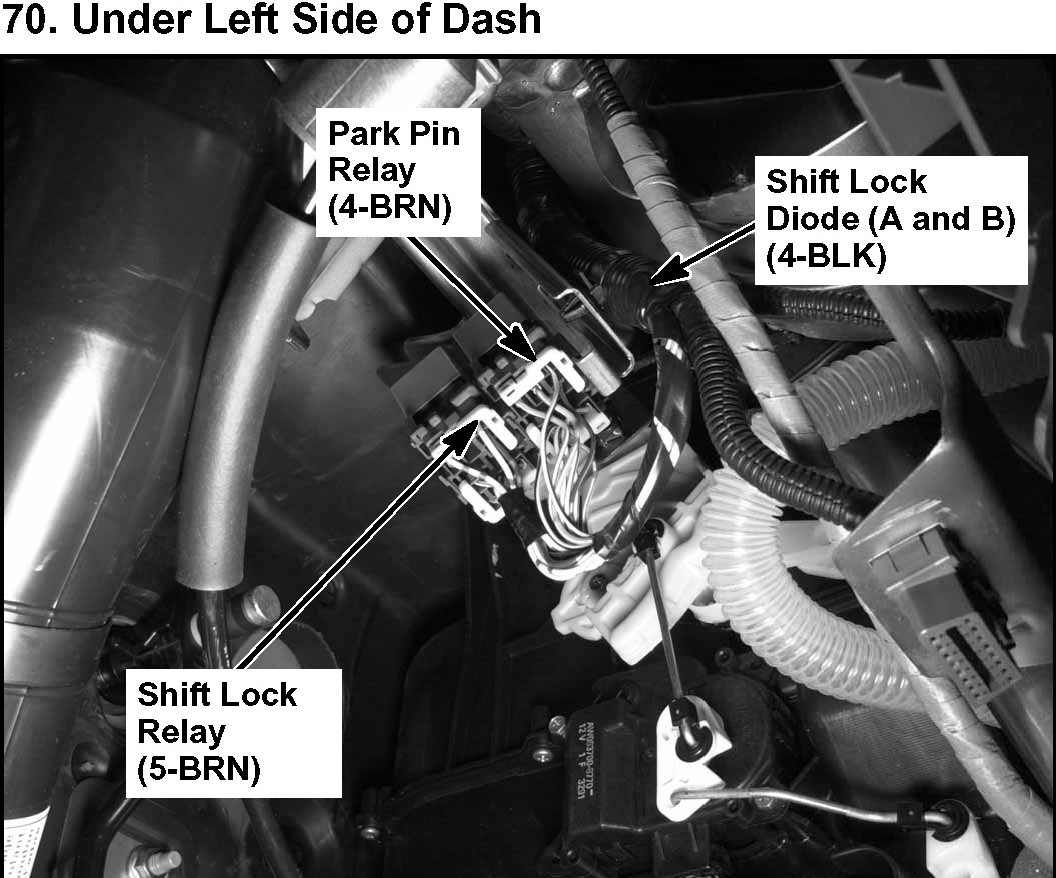

70. Under Left Side Of Dash:



Relay And Control Unit Locations - Dashboard:
