Home >> Honda >> 2005 >> Pilot V6-3.5L >> Repair and Diagnosis >> Lighting and Horns >> Locations

Lighting and Horns: Locations

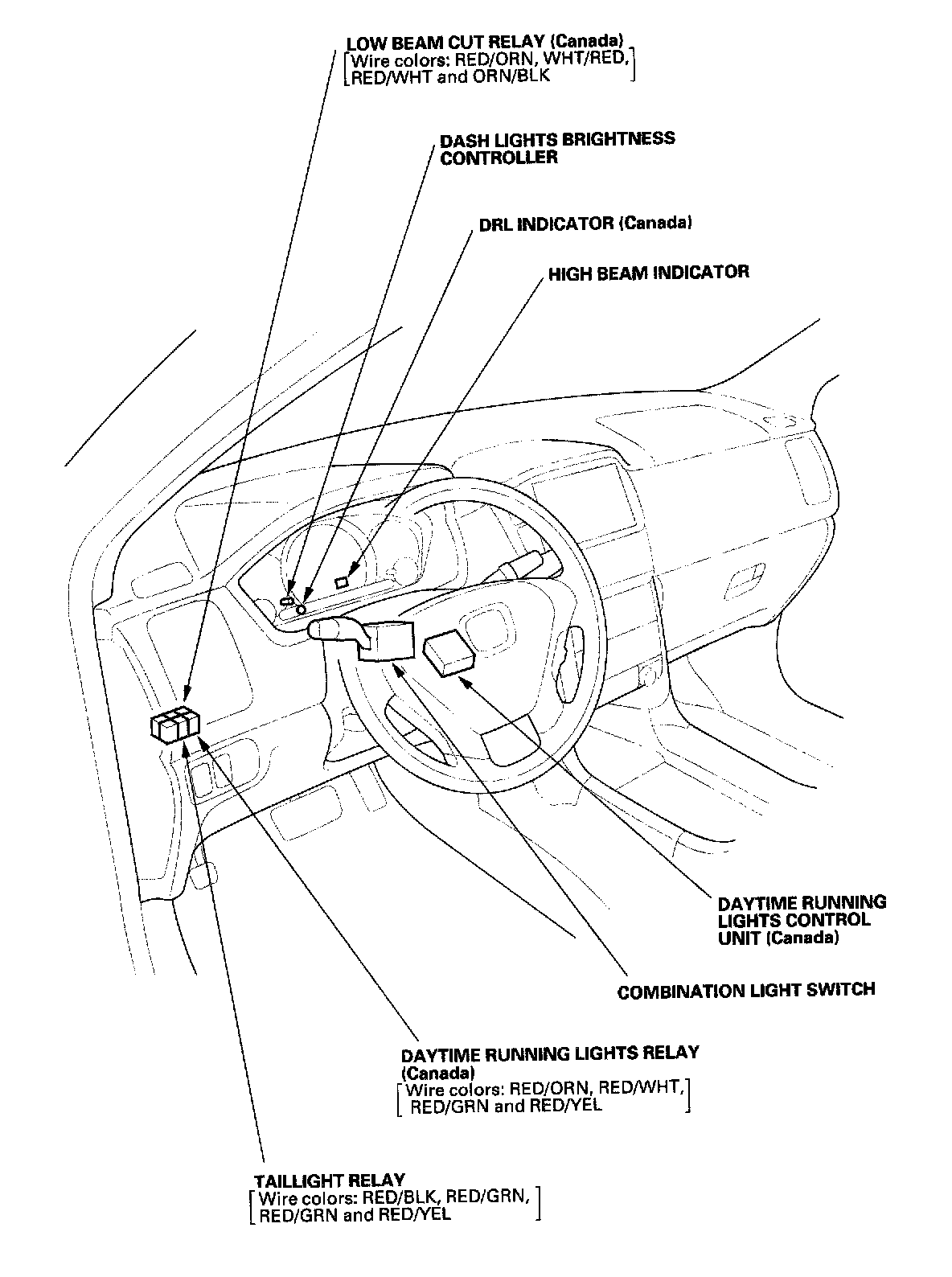

Exterior Lights - Components Location Index:

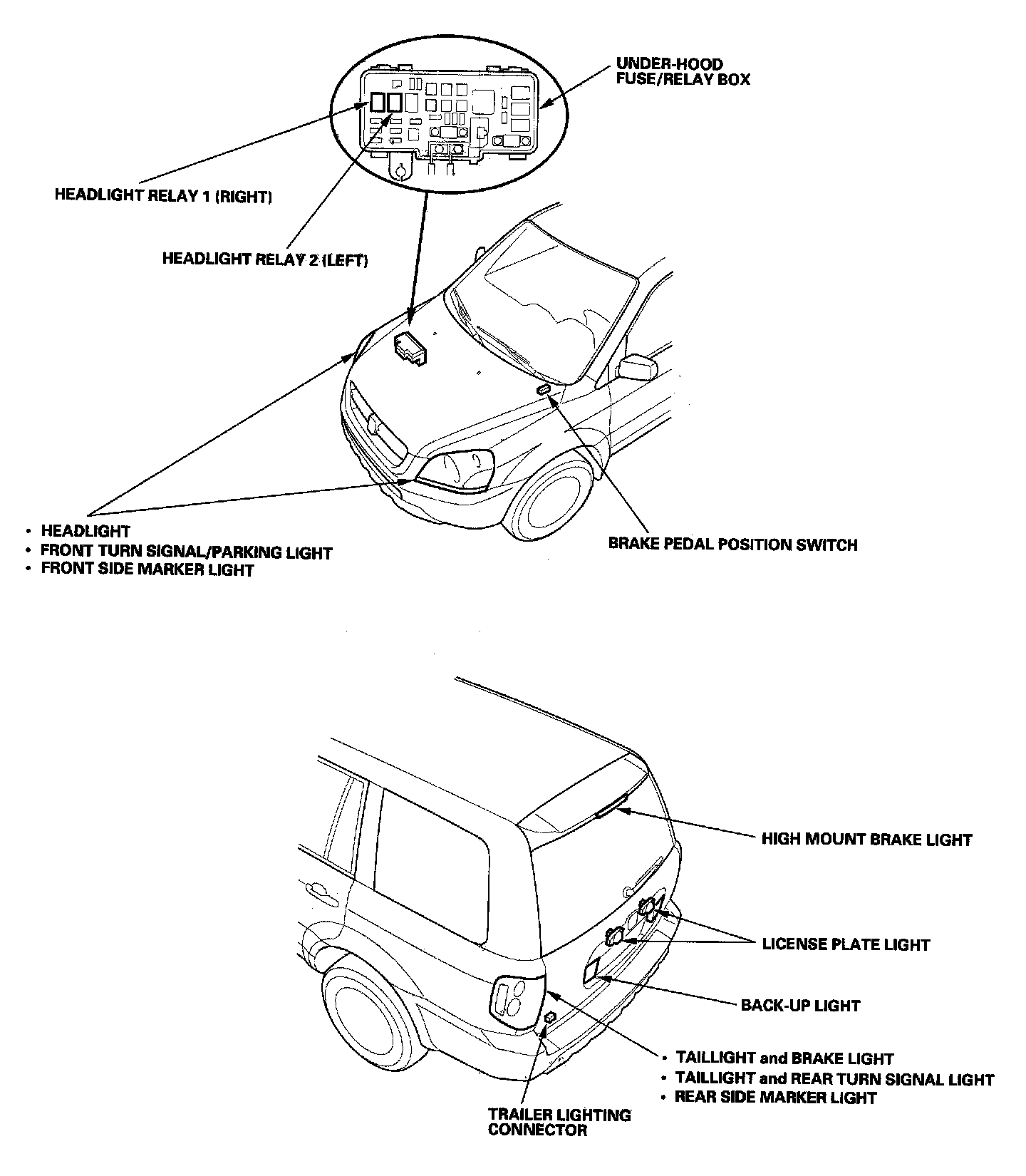

Exterior Lights - Components Location Index:
