Climate Control
Climate Control

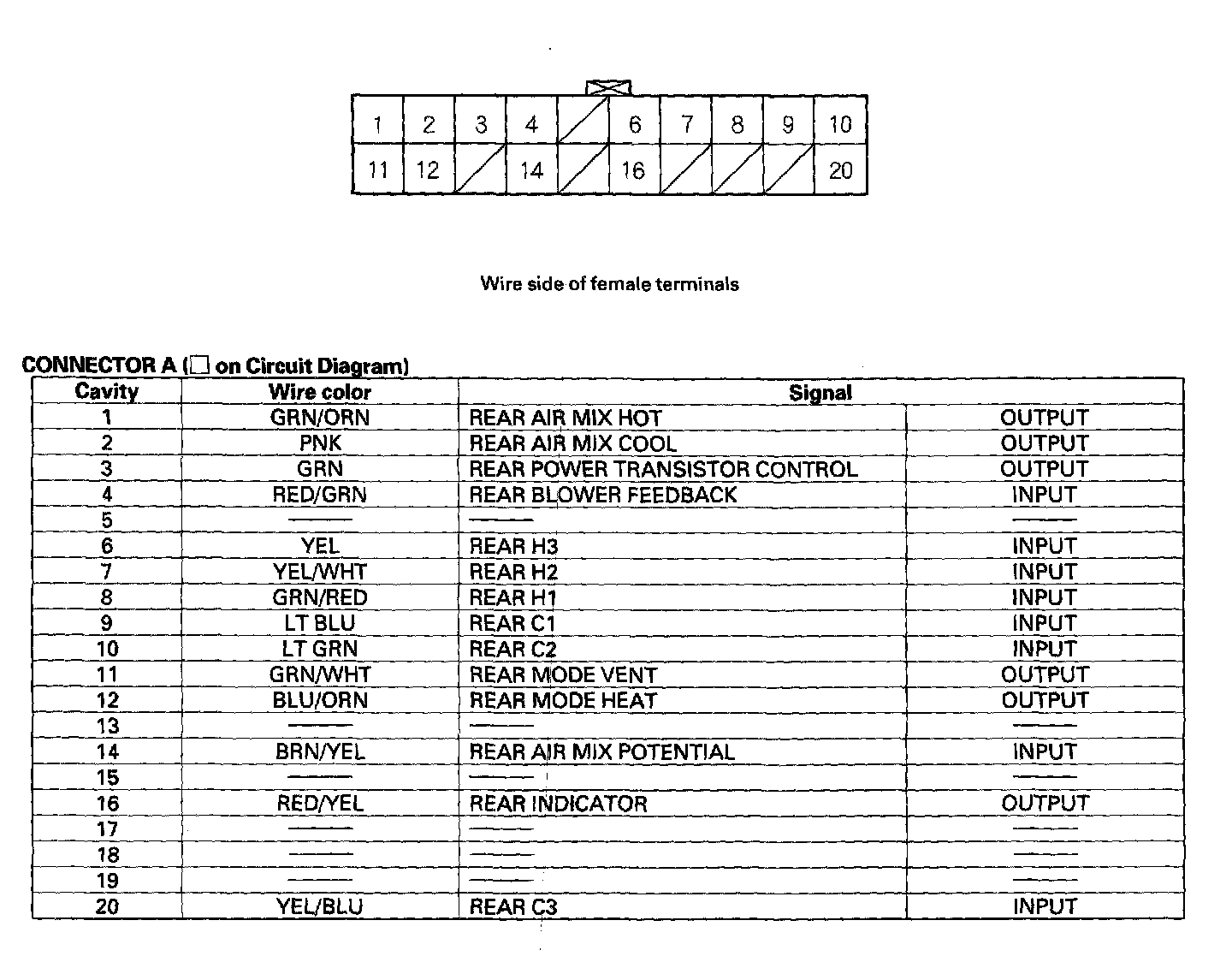

Climate Control Unit Connector A (20P) Inputs And Outputs:

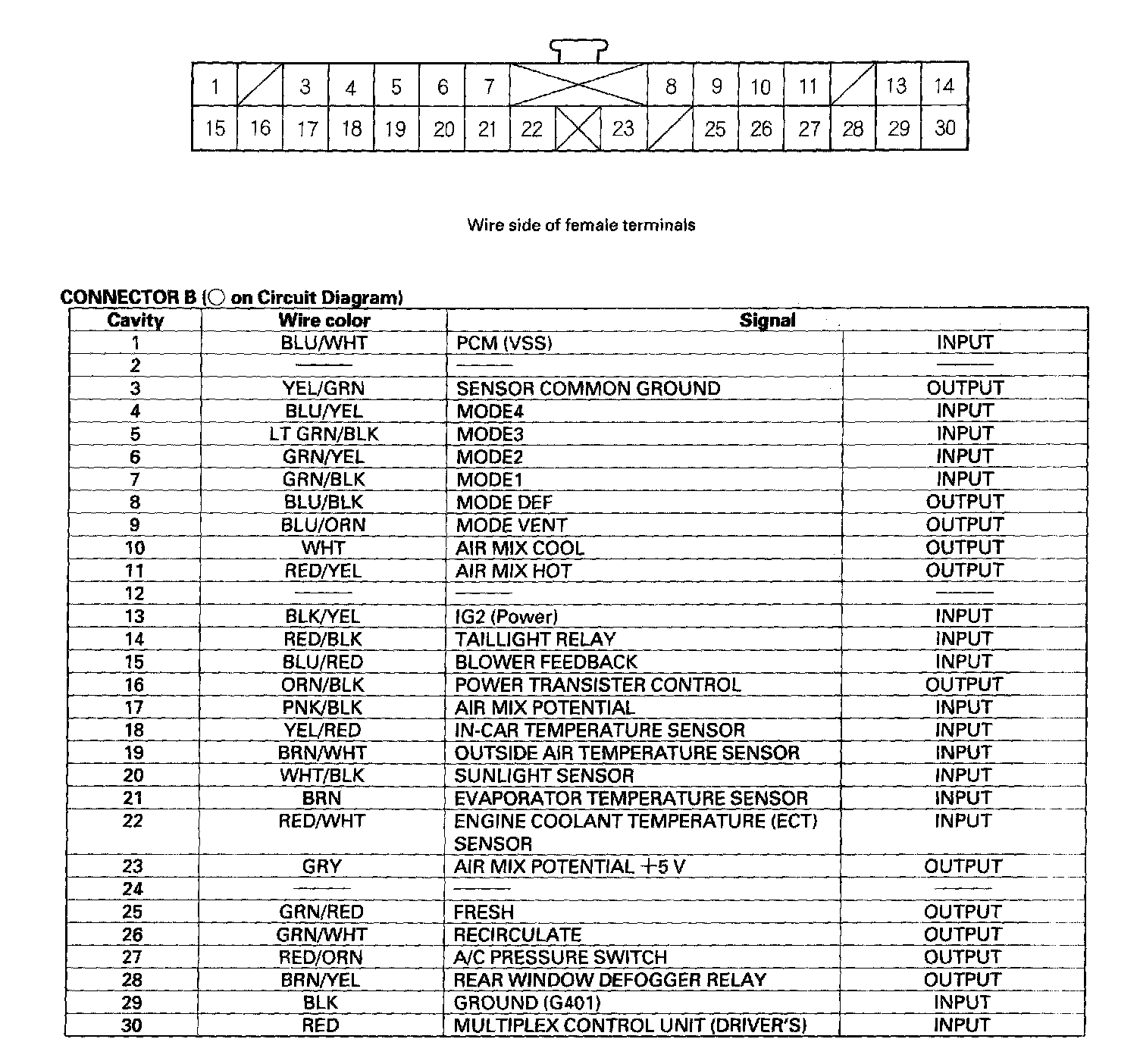

Climate Control Unit Connector B (30P) Inputs And Outputs:
