Home >> Honda >> 2005 >> Pilot V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio, Stereo, and Compact Disc >> Compact Disc Player (CD)

Compact Disc Player (CD)

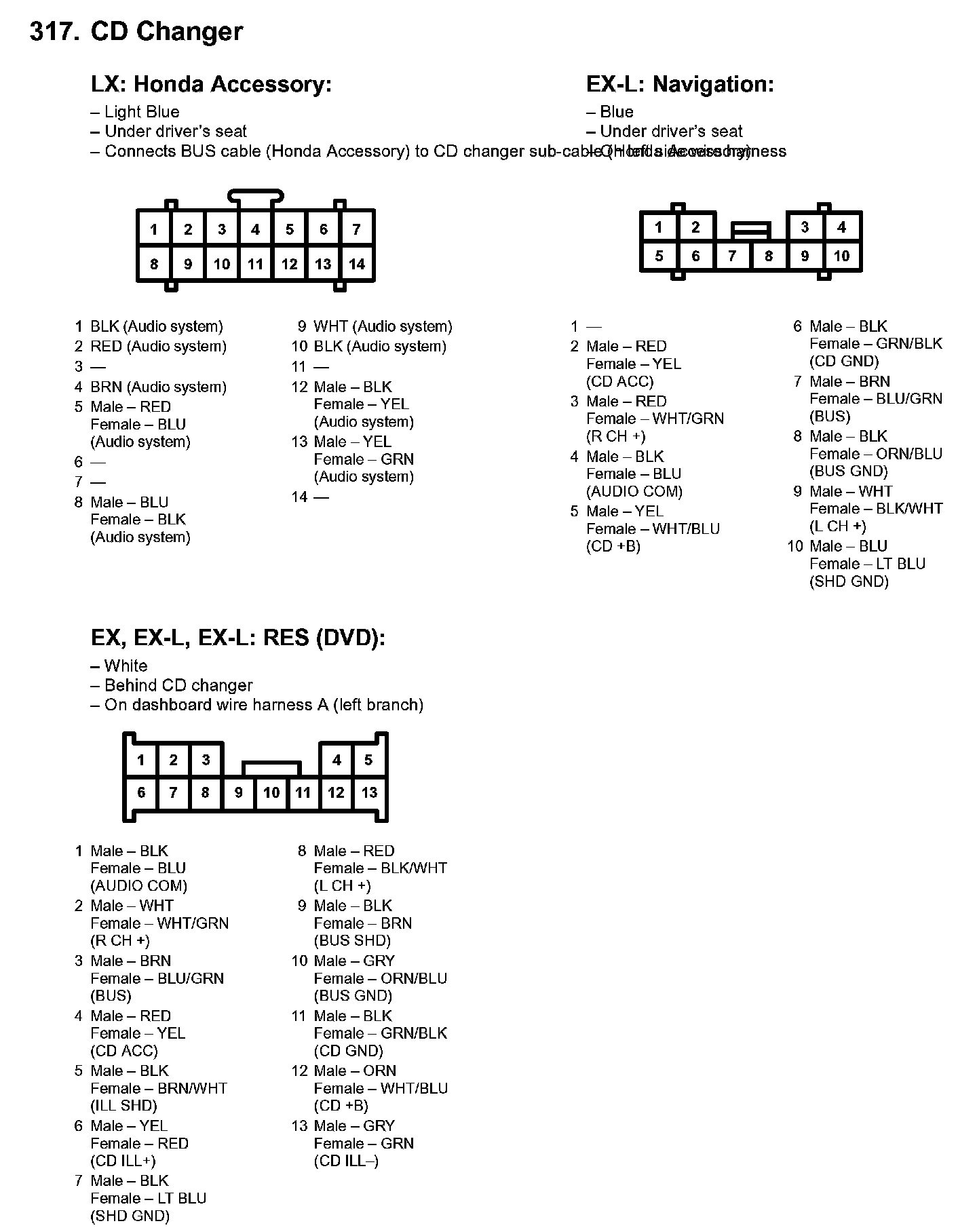

317. CD Changer:
