Fog/Driving Lamp Relay

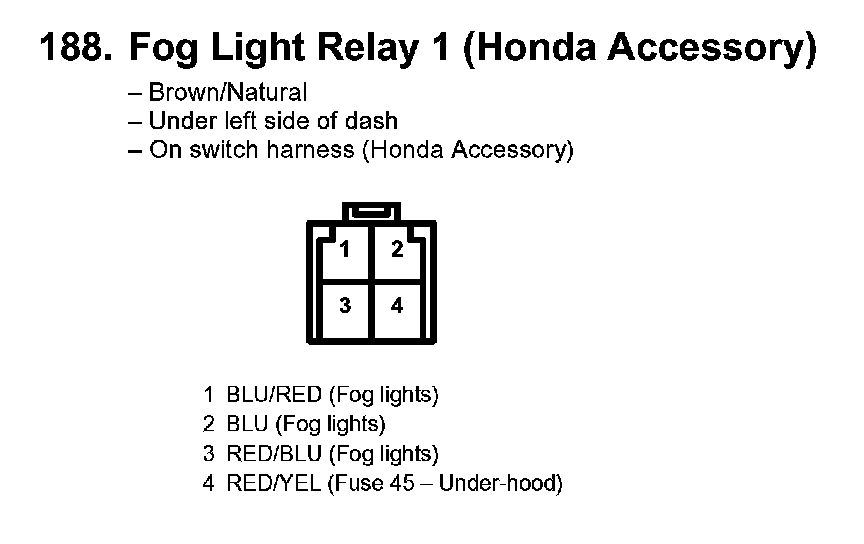

188. Fog Light Relay 1 (Honda Accessory):



189. Fog Light Relay 2 (Honda Accessory):
