System Diagram

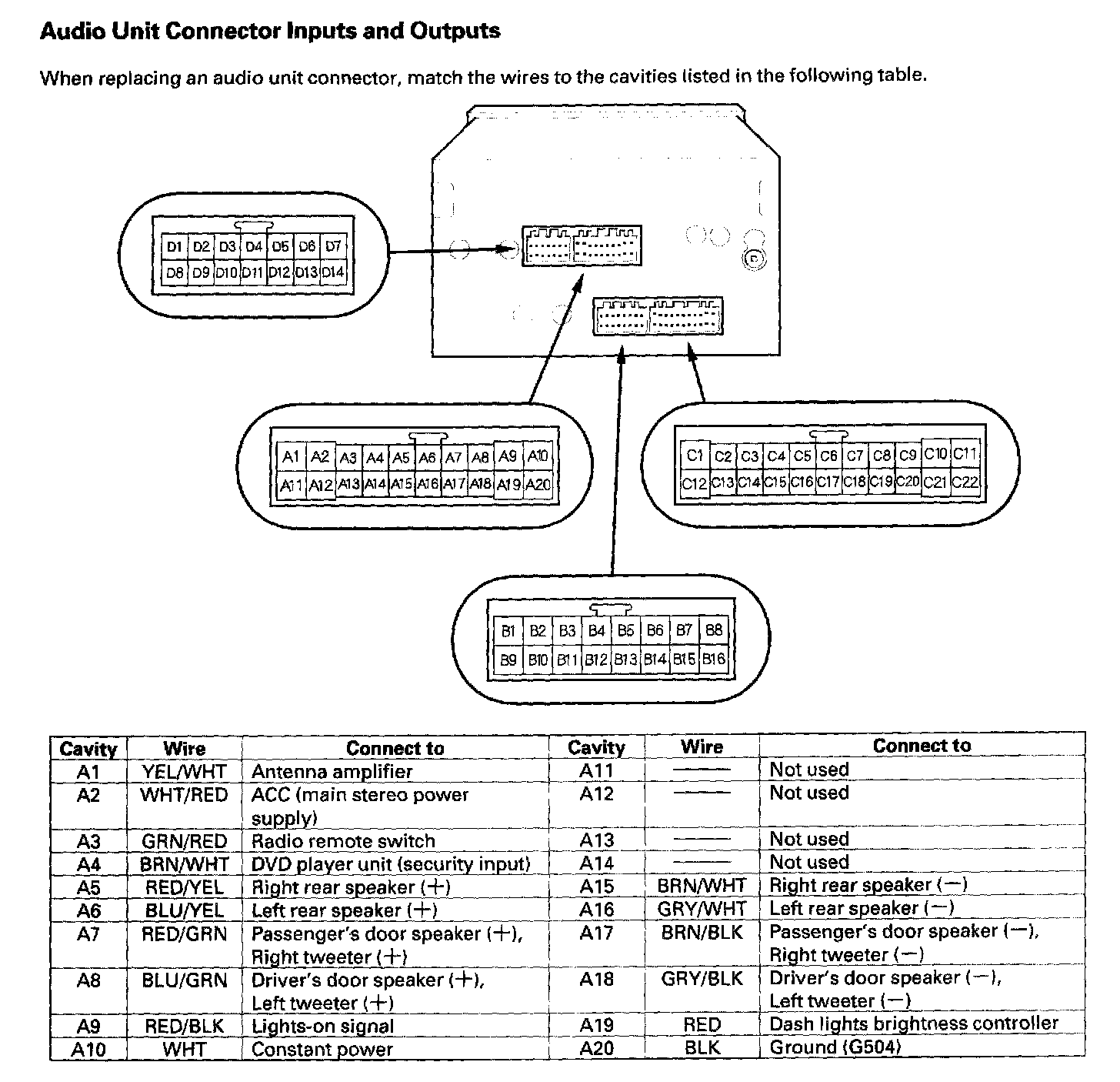

Audio Unit Connector Inputs And Outputs Part 1:

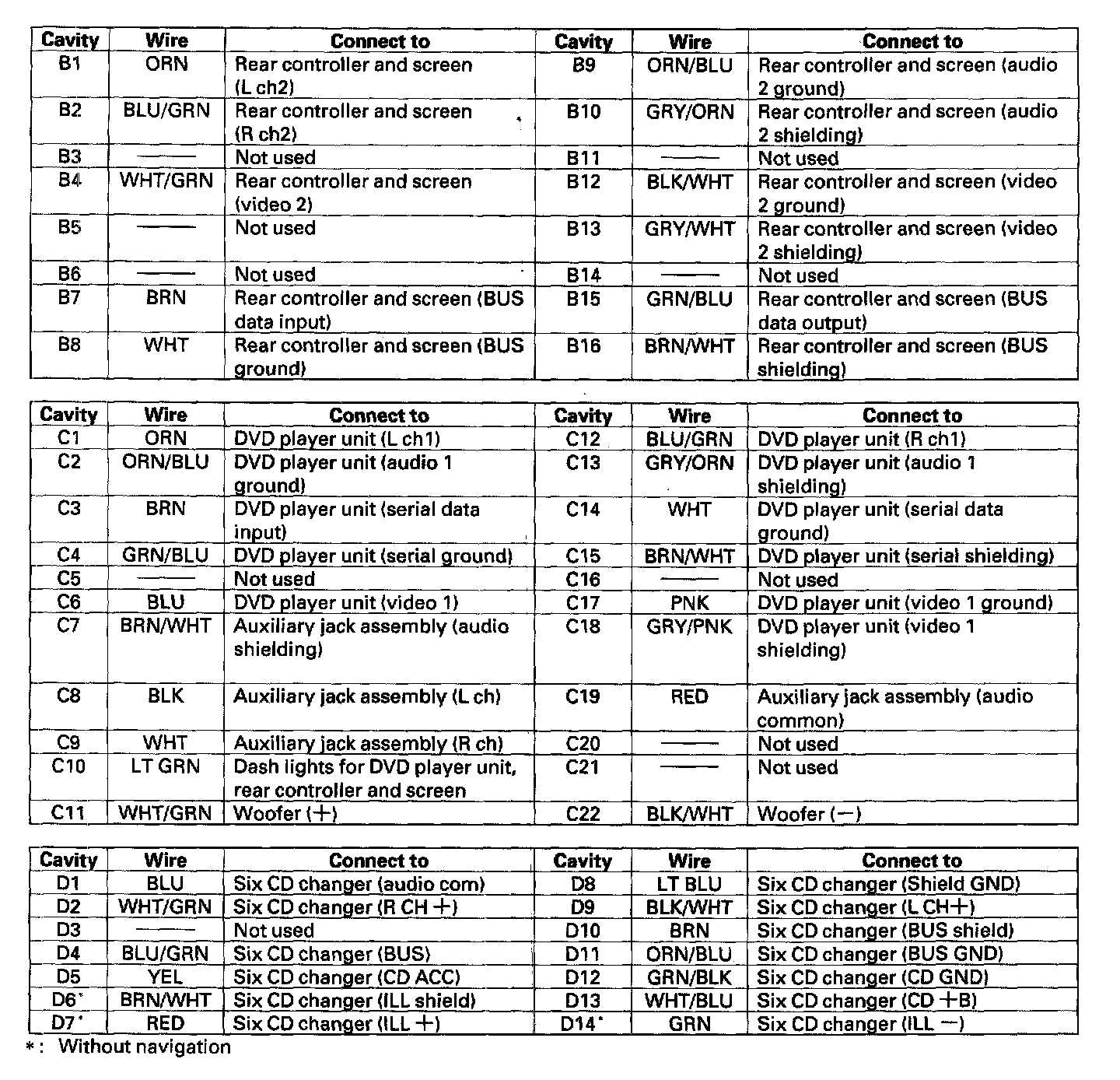

Audio Unit Connector Inputs And Outputs Part 2:

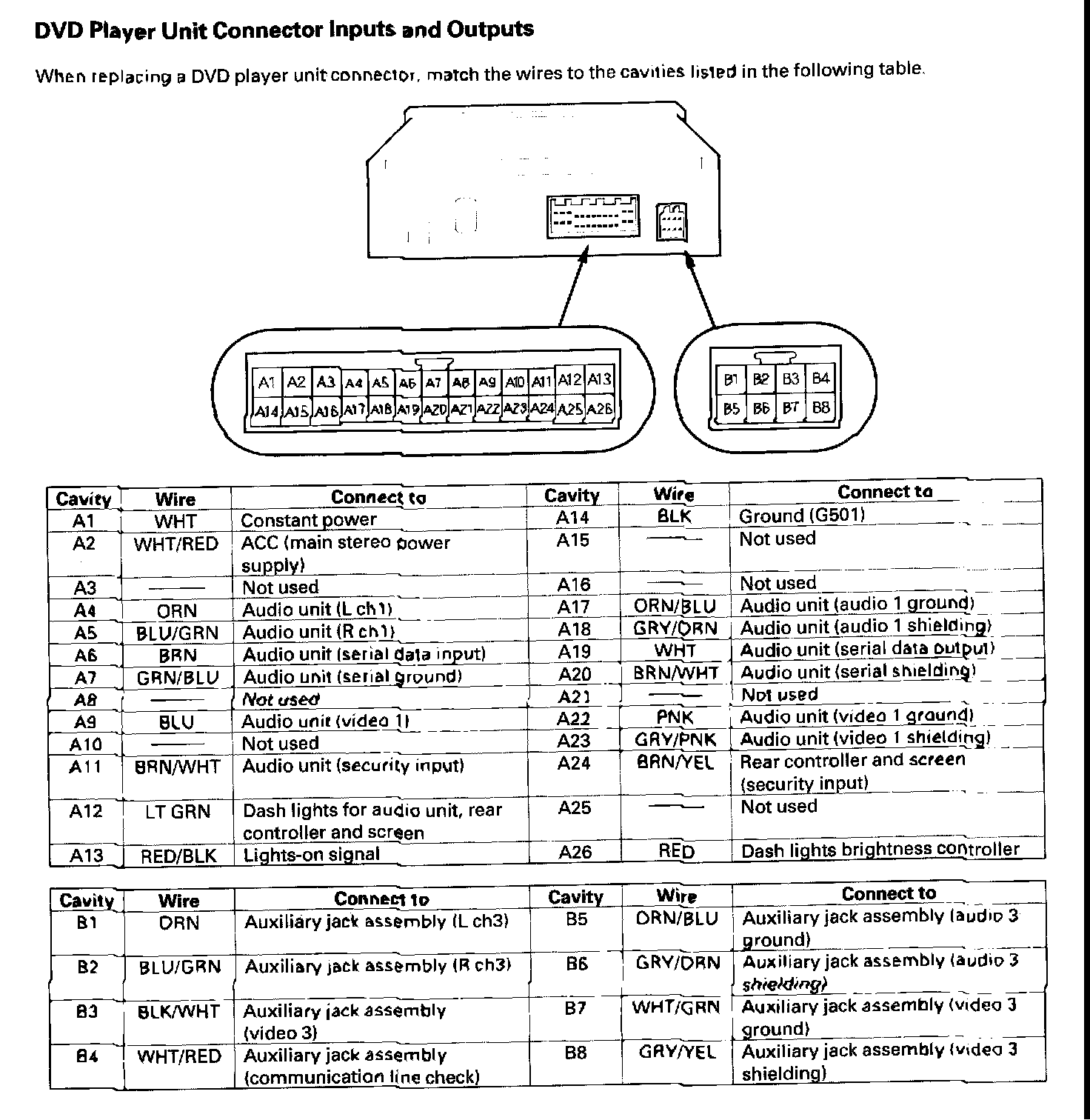

DVD Player Unit Connector Inputs and Outputs:

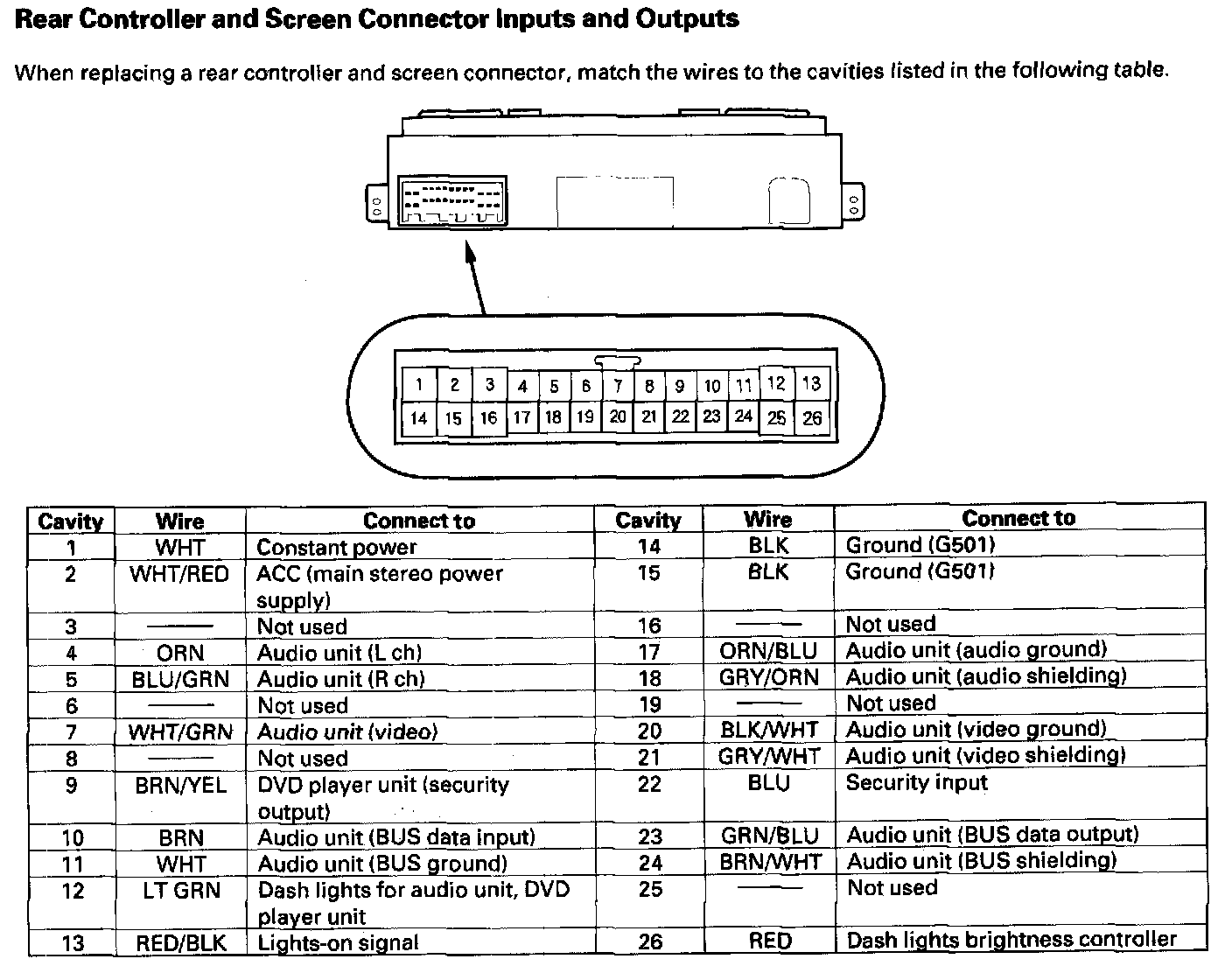

Rear Controller And Screen Connector Inputs And Outputs:

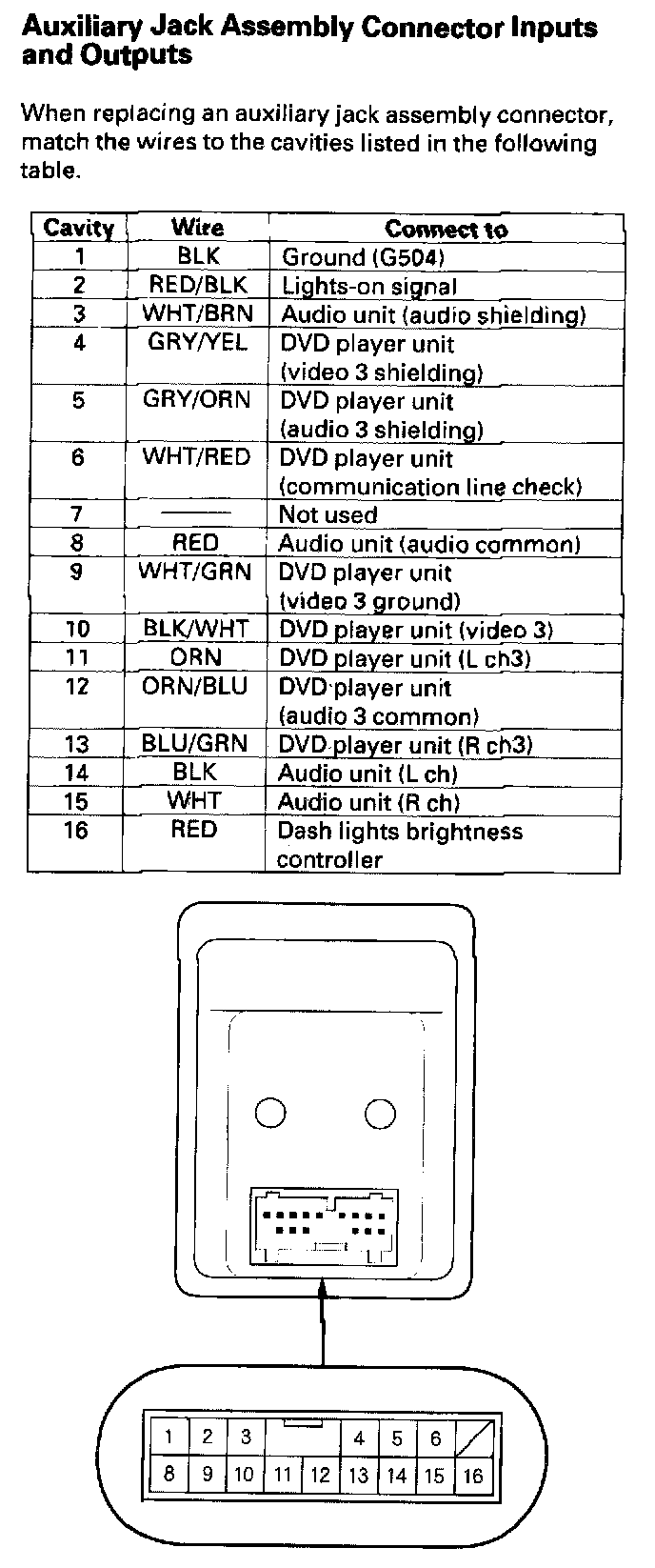

Auxiliary Jack Assembly Connector Inputs and Outputs:
