LEMON Manuals
: Even more car manuals for everyone
Home
>>
Honda
>>
2005
>>
Pilot V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Entertainment Systems
>>
Entertainment System Control Panel
Entertainment System Control Panel

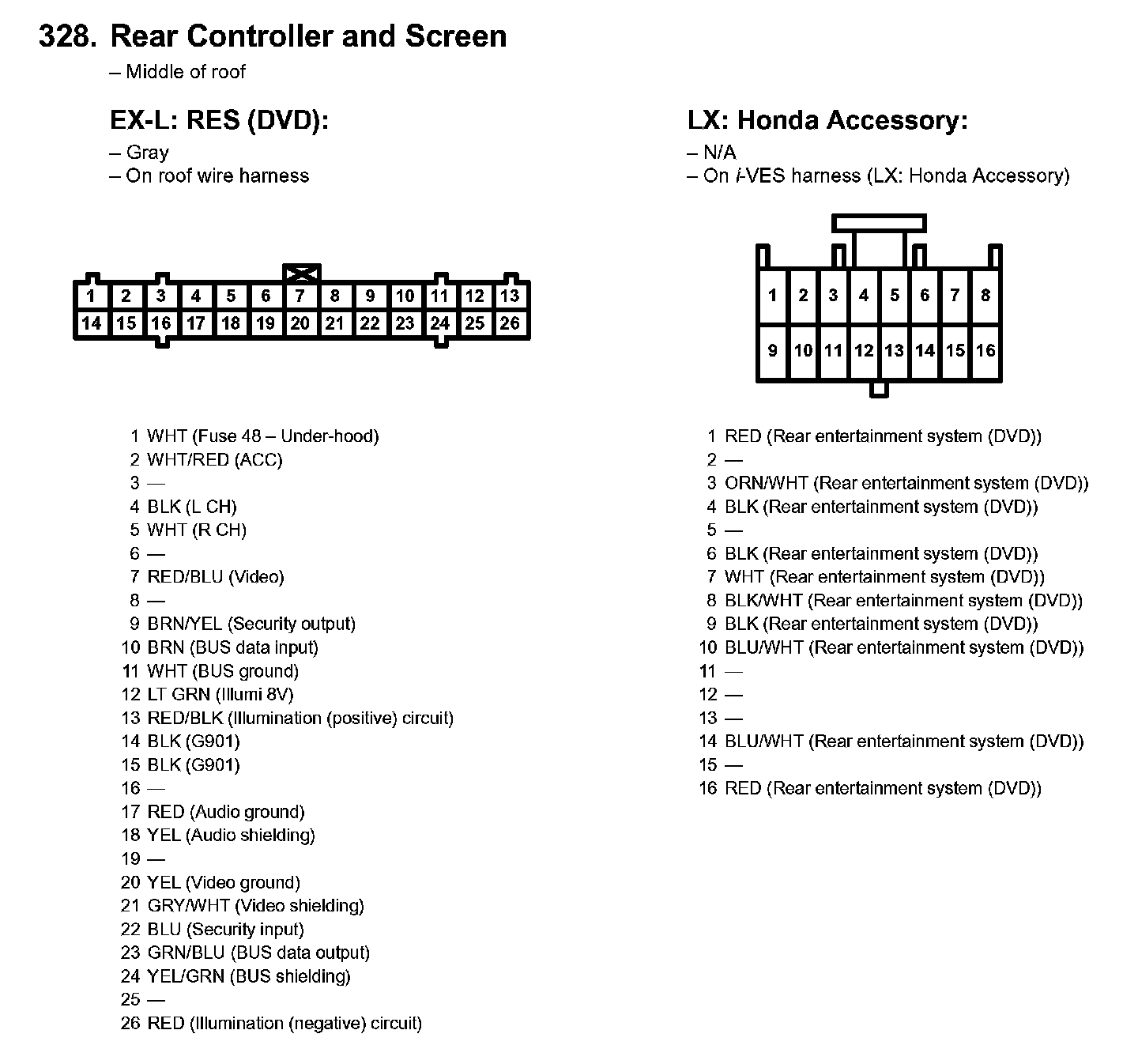

328. Rear Controller And Screen:
