Home >> Honda >> 2005 >> Pilot V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Daytime Running Lamp Relay

Daytime Running Lamp Relay

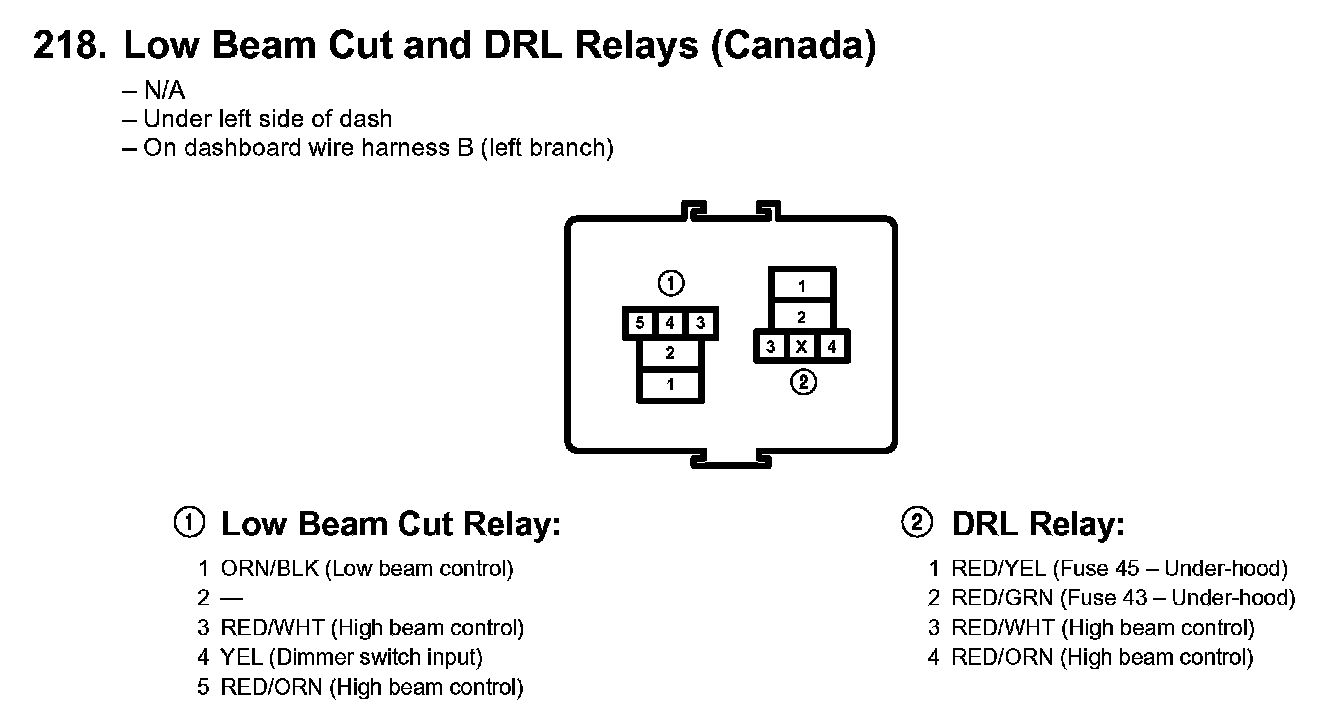

218. Low Beam Cut And DRL Relays (Canada):
