Views 51-75: 51

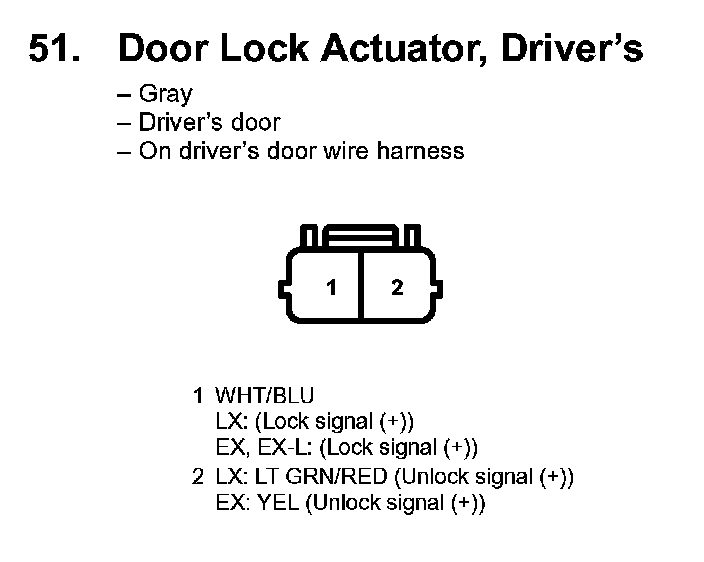

51. Door Lock Actuator, Driver's:



52. Door Lock Actuator, Front Passenger's:



53. Door Lock Actuator, Left Rear:



54. Door Lock Actuator, Right Rear:
