Home >> Honda >> 2005 >> Pilot V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> Views 301-325 >> 303

Views 301-325: 303

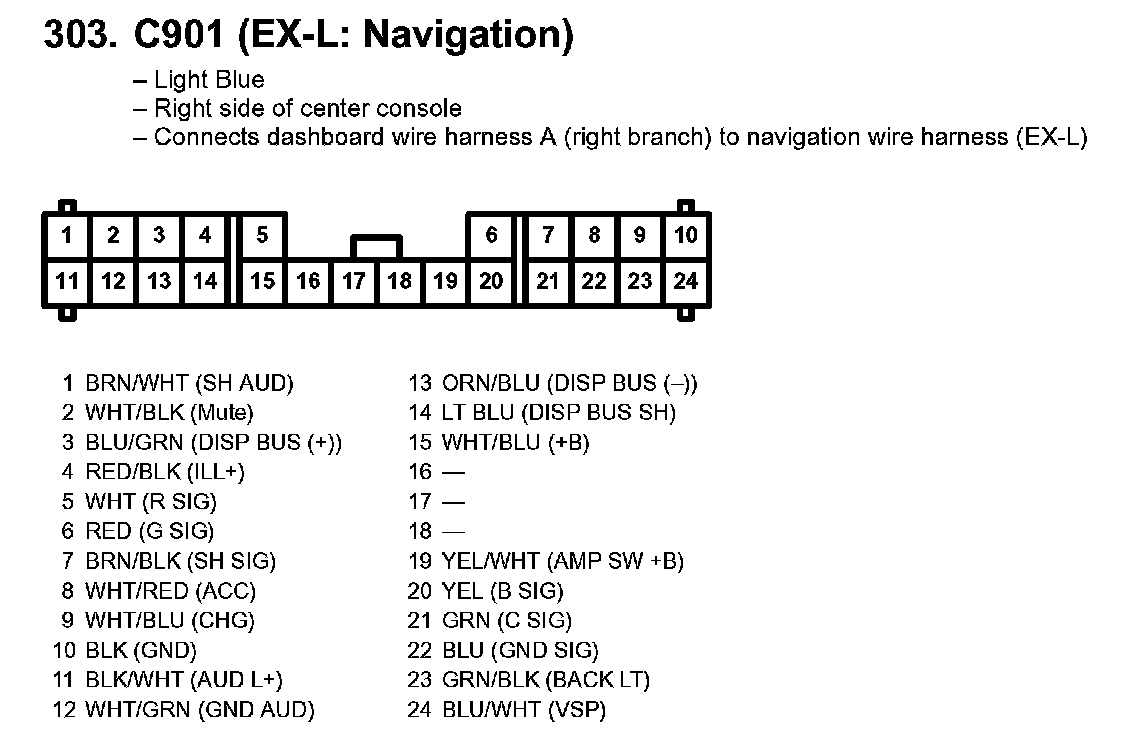

303. C901 (EX-L: Navigation):
