Home >> Honda >> 2005 >> Pilot V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> Views 276-300 >> 285

Views 276-300: 285

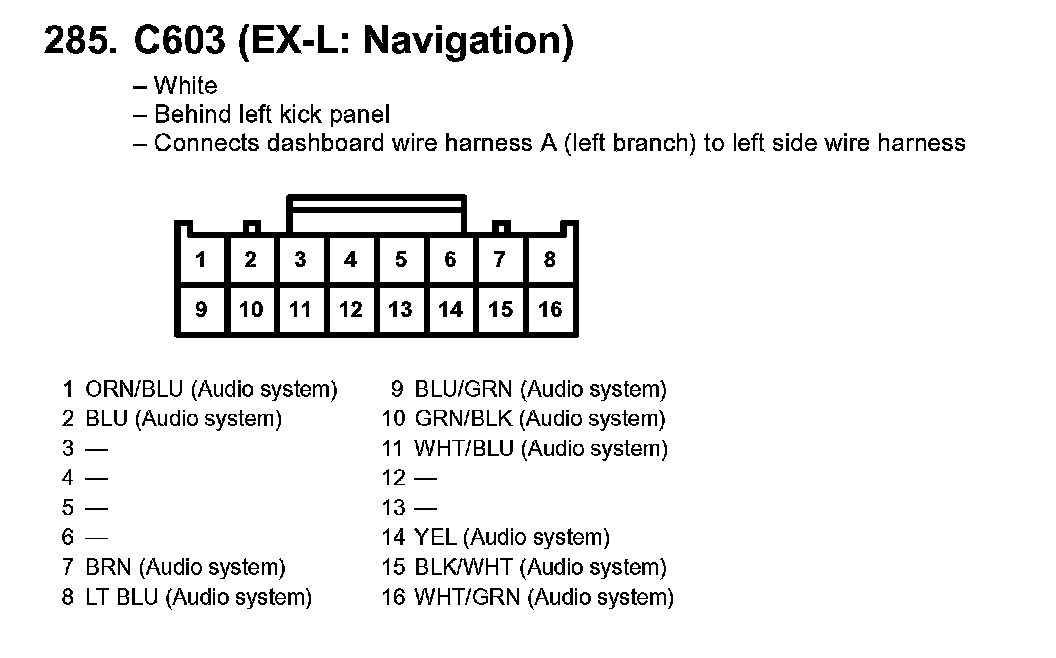

285. C603 (EX-L: Navigation):
