Home >> Honda >> 2005 >> Pilot V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> Views 251-275 >> 251

Views 251-275: 251

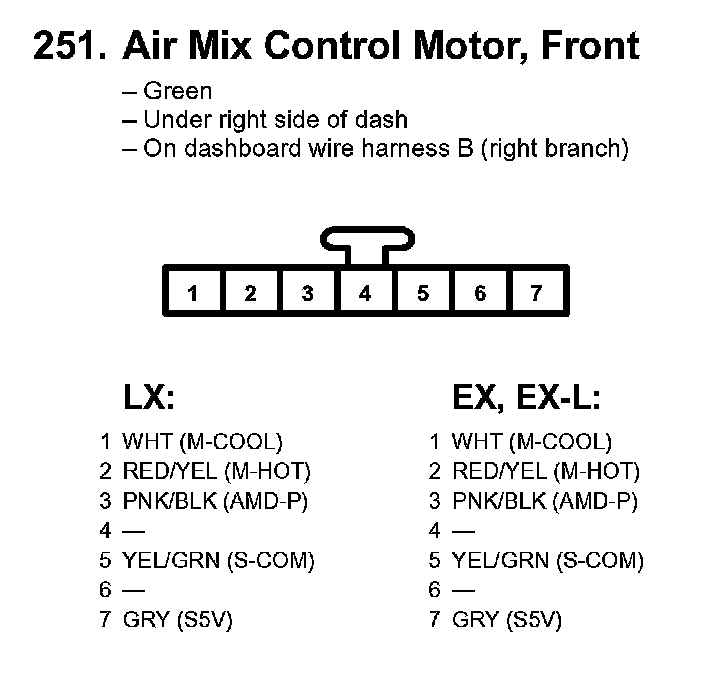

251. Air Mix Control Motor, Front:



252. Air Mix Control Motor, Rear (EX, EX-L):

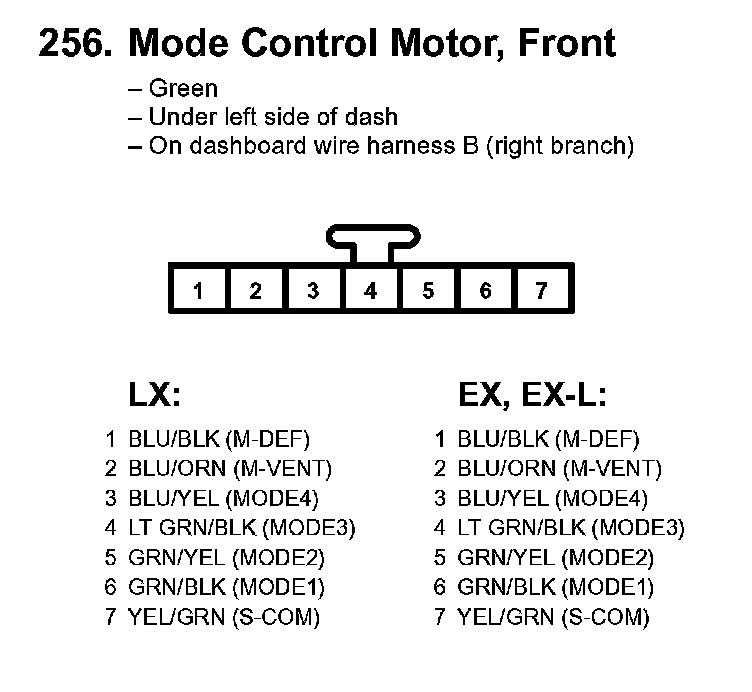

256. Mode Control Motor, Front:



257. Mode Control Motor, Rear (LX):

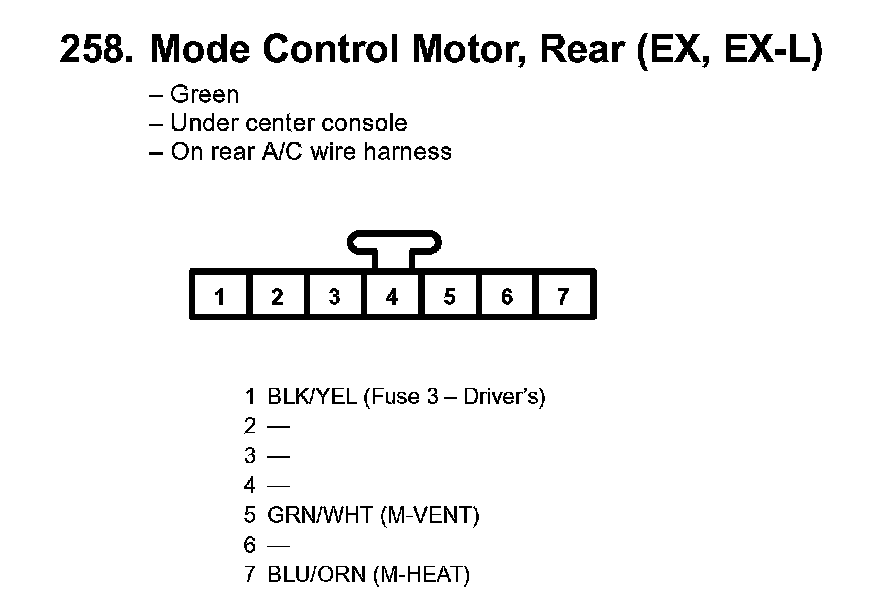

258. Mode Control Motor, Rear (EX, EX-L):

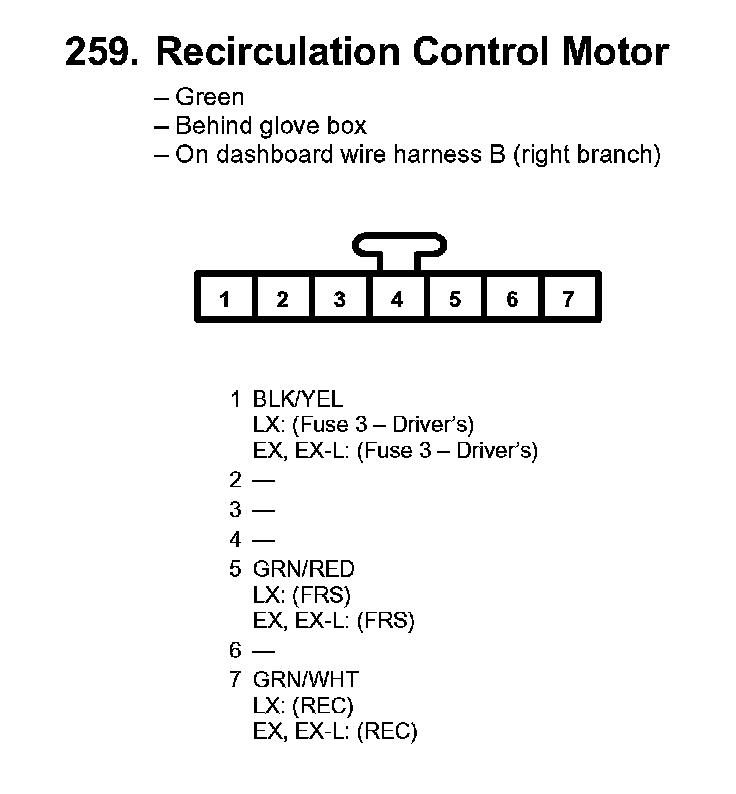

259. Recirculation Control Motor:
