Home >> Honda >> 2005 >> Pilot V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> Views 176-200 >> 191

Views 176-200: 191

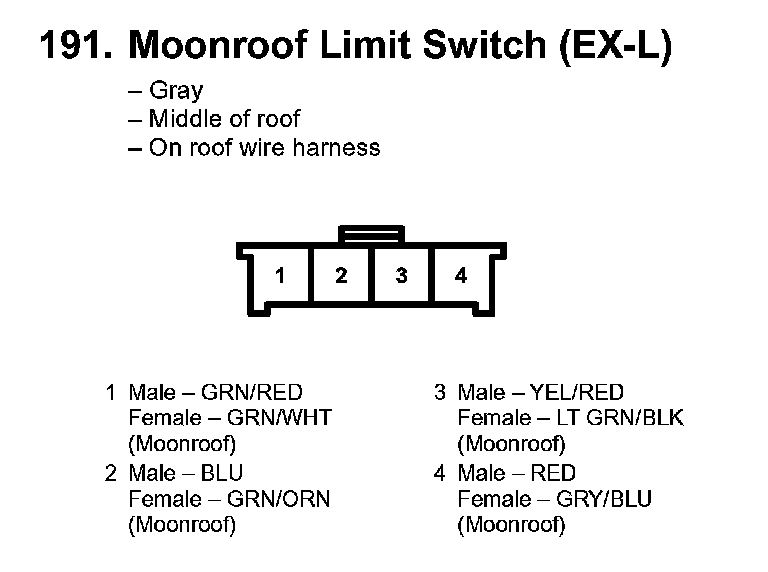

191. Moonroof Limit Switch (EX-L):
