Collision Avoidance and Parking Assist Systems
>>
Collision Avoidance Module
Collision Avoidance Module
293. Back-up Sensor Control Unit (Honda Accessory):

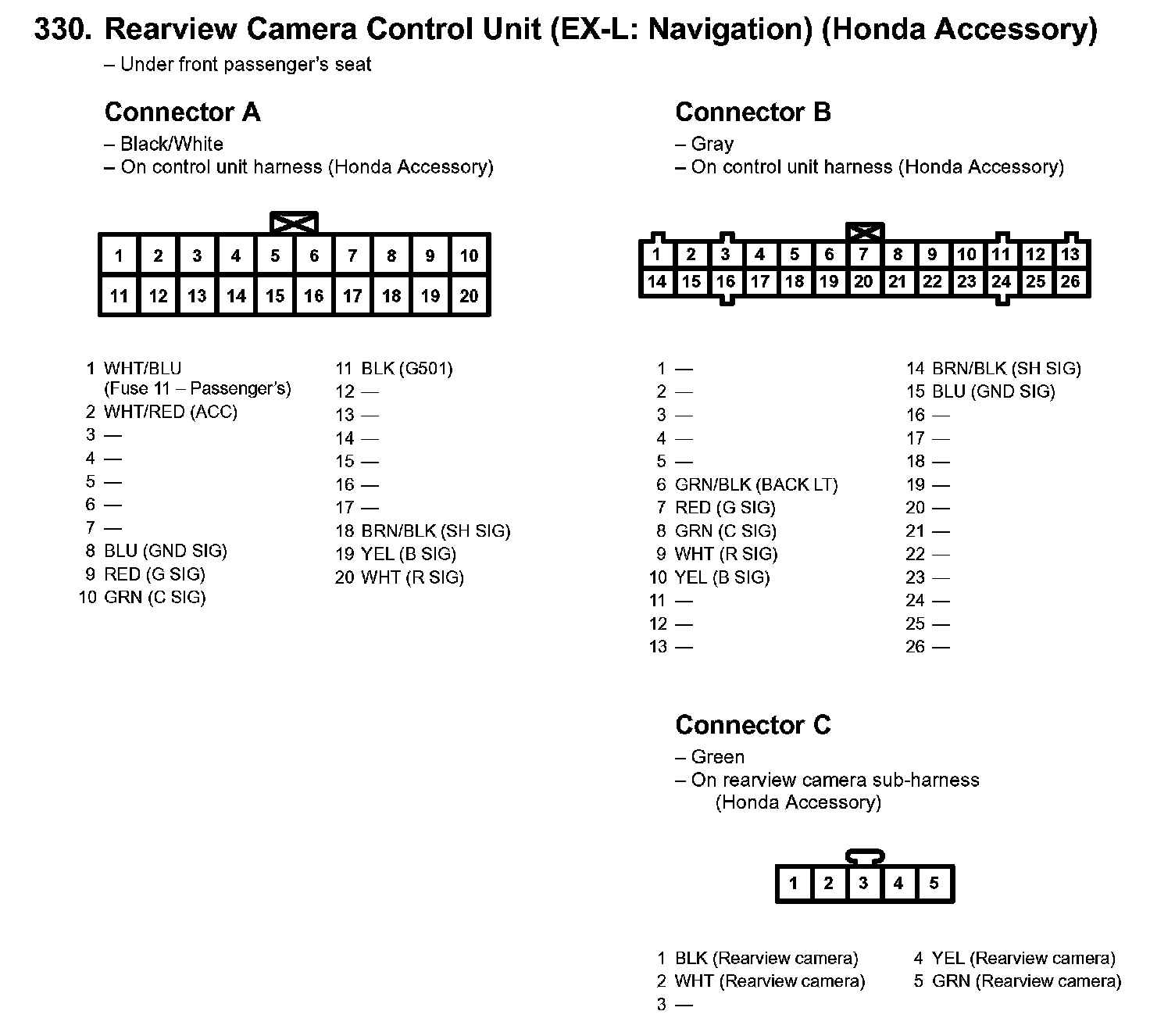

330. Rearview Camera Control Unit (EX-L: Navigation) (Honda Accessory):
