Exploded View: Notes

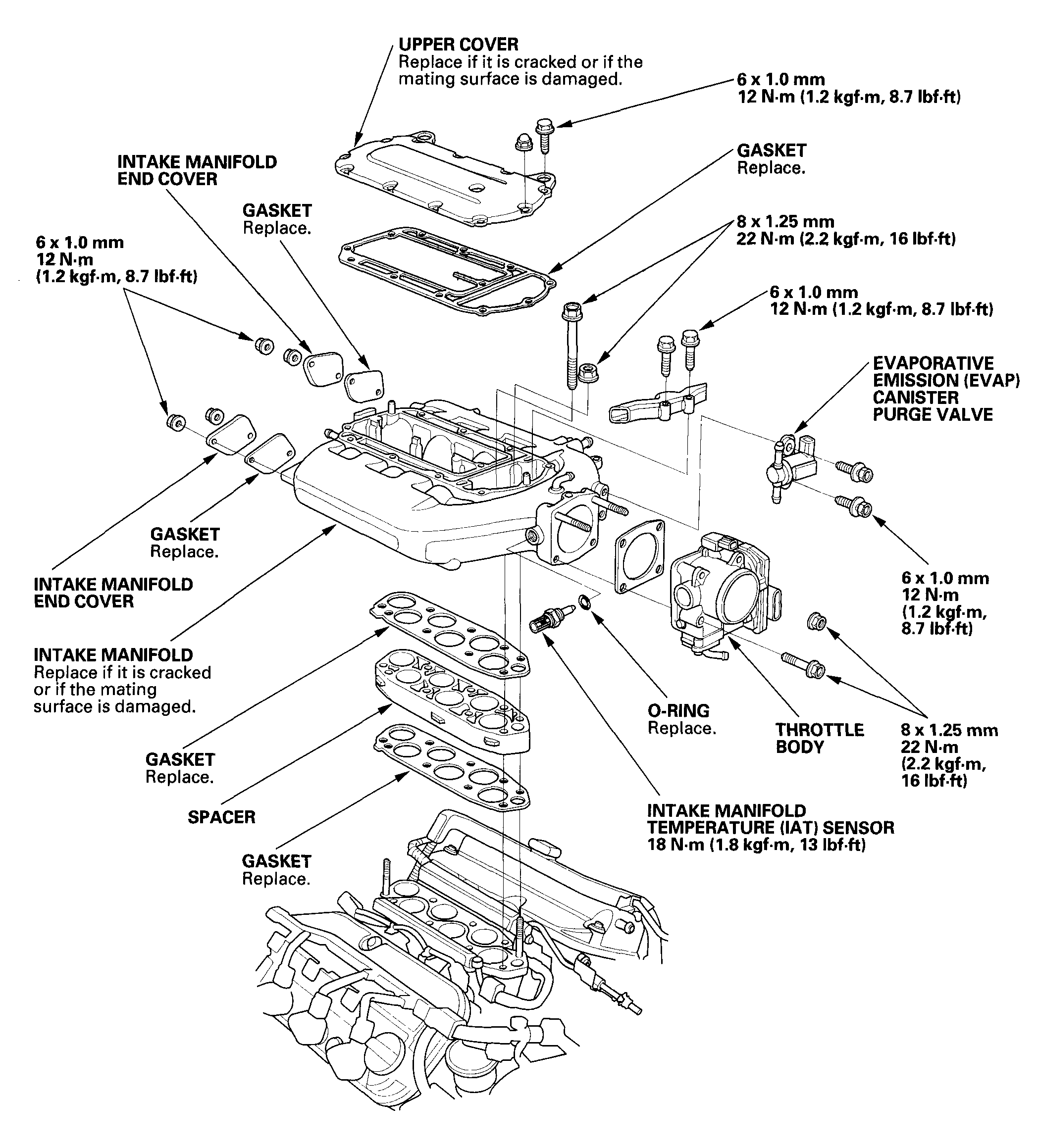

Fig 1: Exploded View Of Intake Manifold

G04545790

Courtesy of AMERICAN HONDA MOTOR CO., INC.
