Body & Frame
>>
Frames, Subframes & Crossmembers
>>
Frame Repair Chart
>>
Top View
Top View

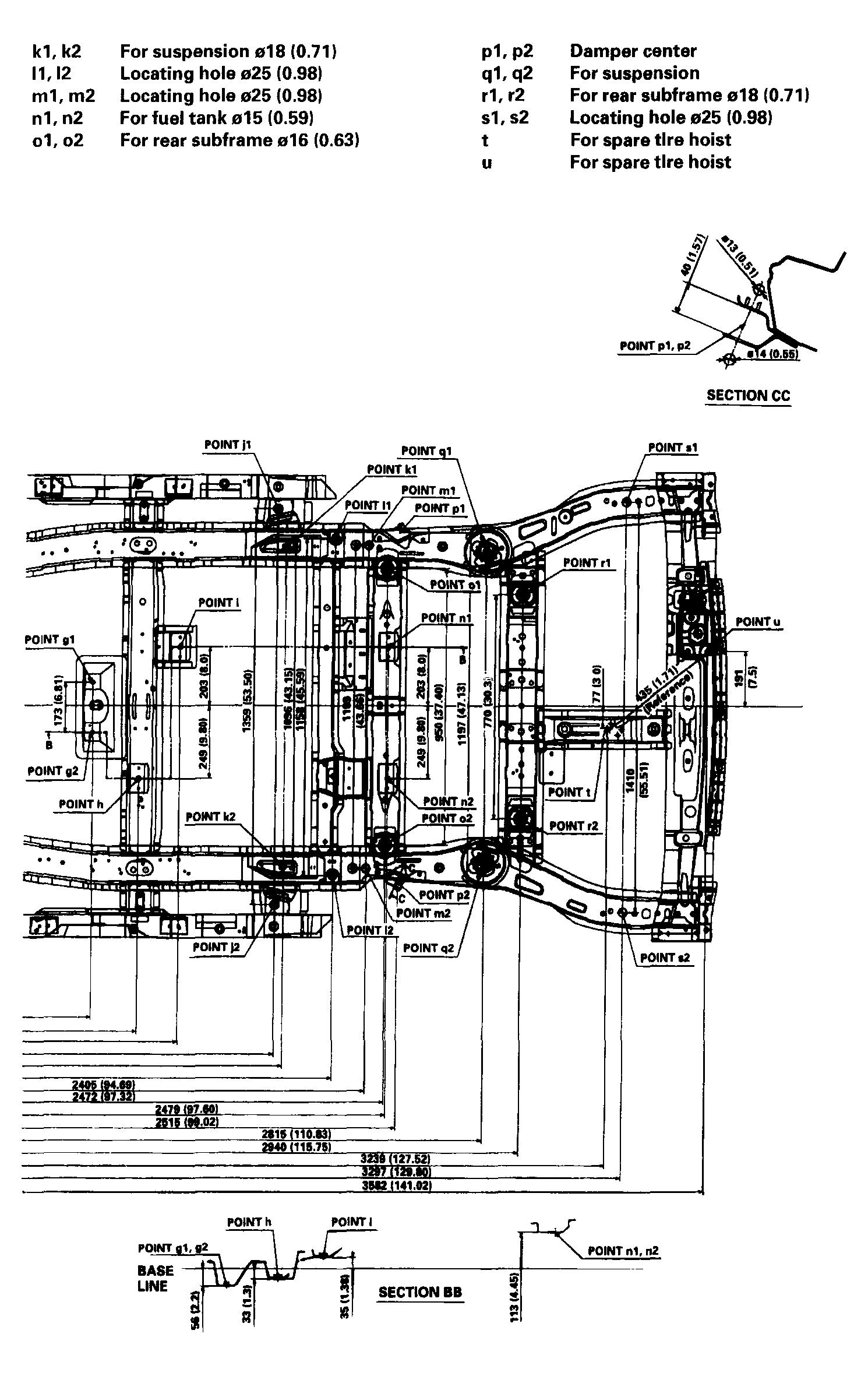

Fig 1: Frame Repair Chart - Top View (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

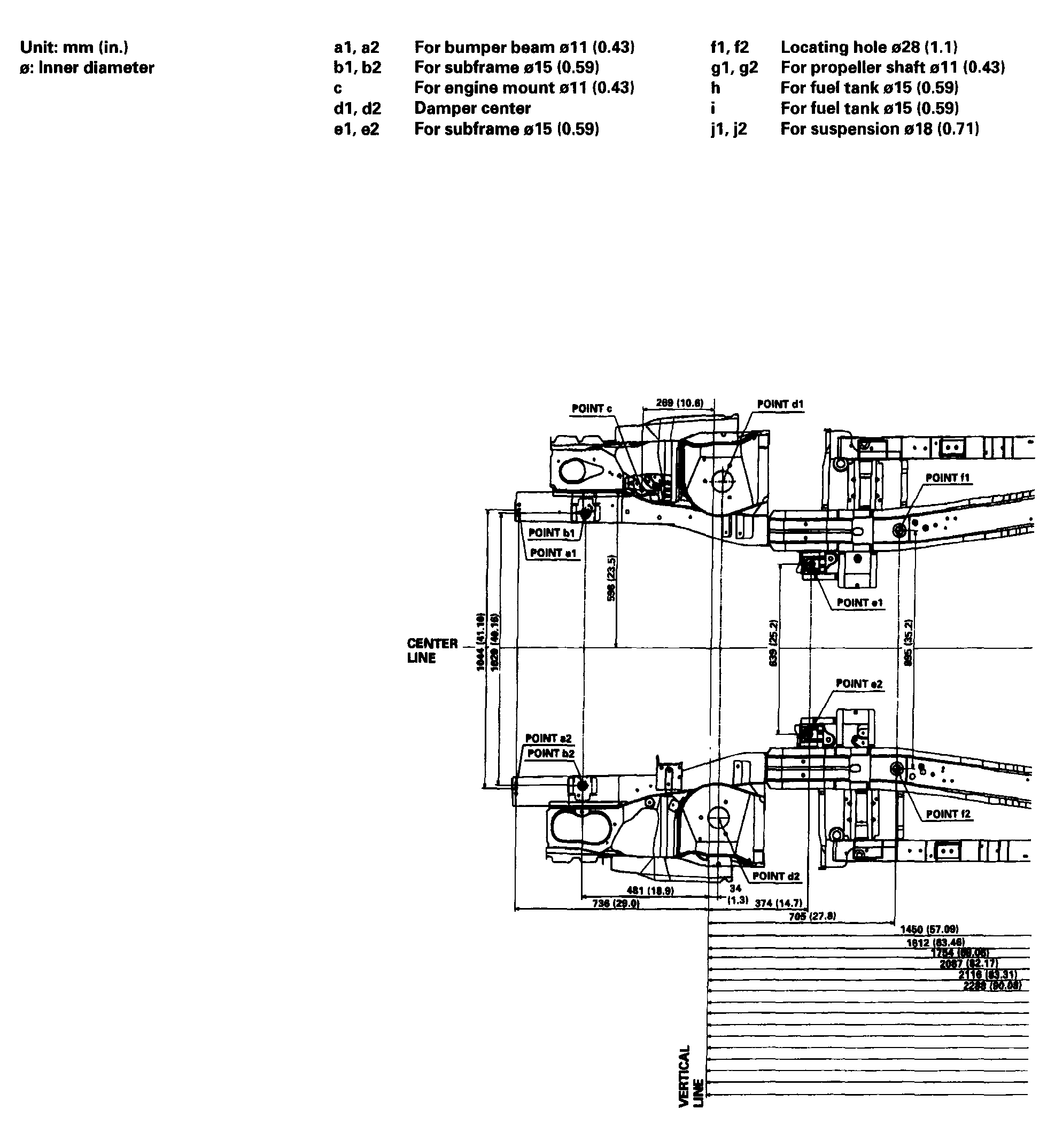

Fig 2: Frame Repair Chart - Top View (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
