ATF Temperature Sensor Connector End View

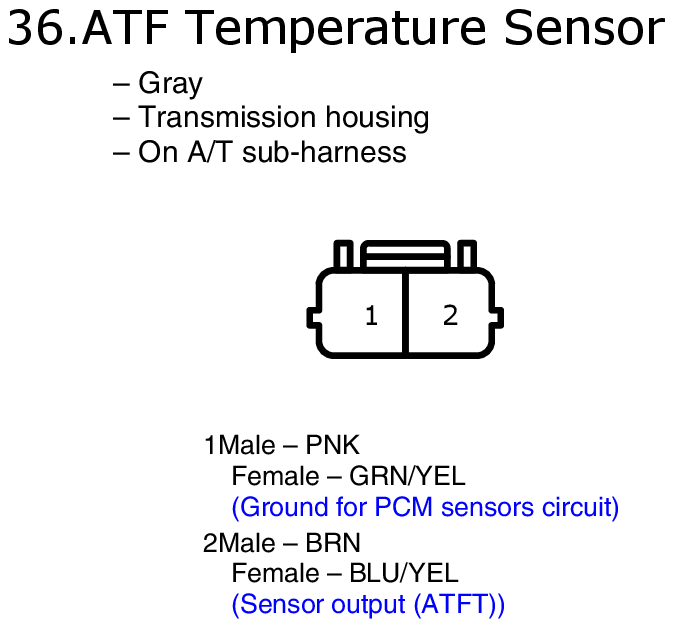

Fig 1: ATF Temperature Sensor Connector End View

GHHW5690

Courtesy of AMERICAN HONDA MOTOR CO., INC.
