Variable Valve Timing Pressure Switch: Locations

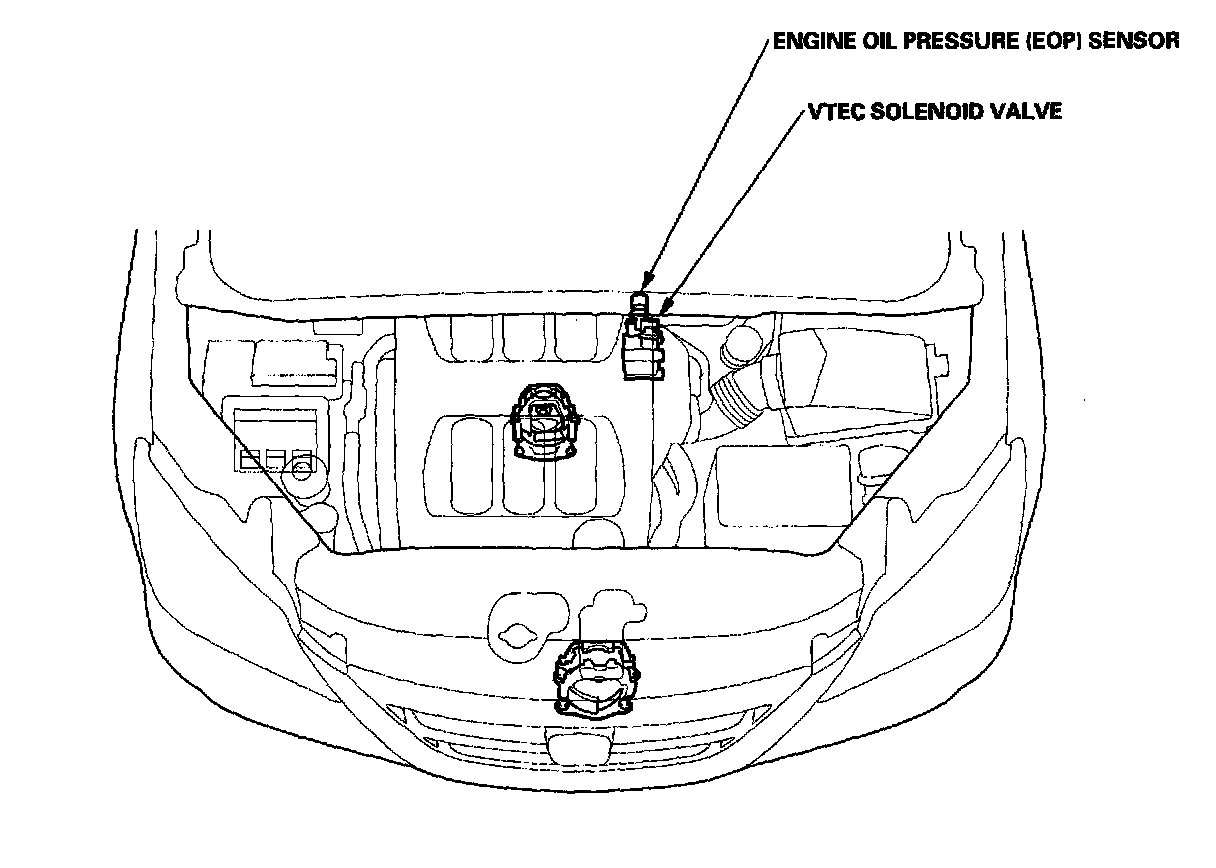

Variable Cylinder Management (VCM) System - Component Location Index:

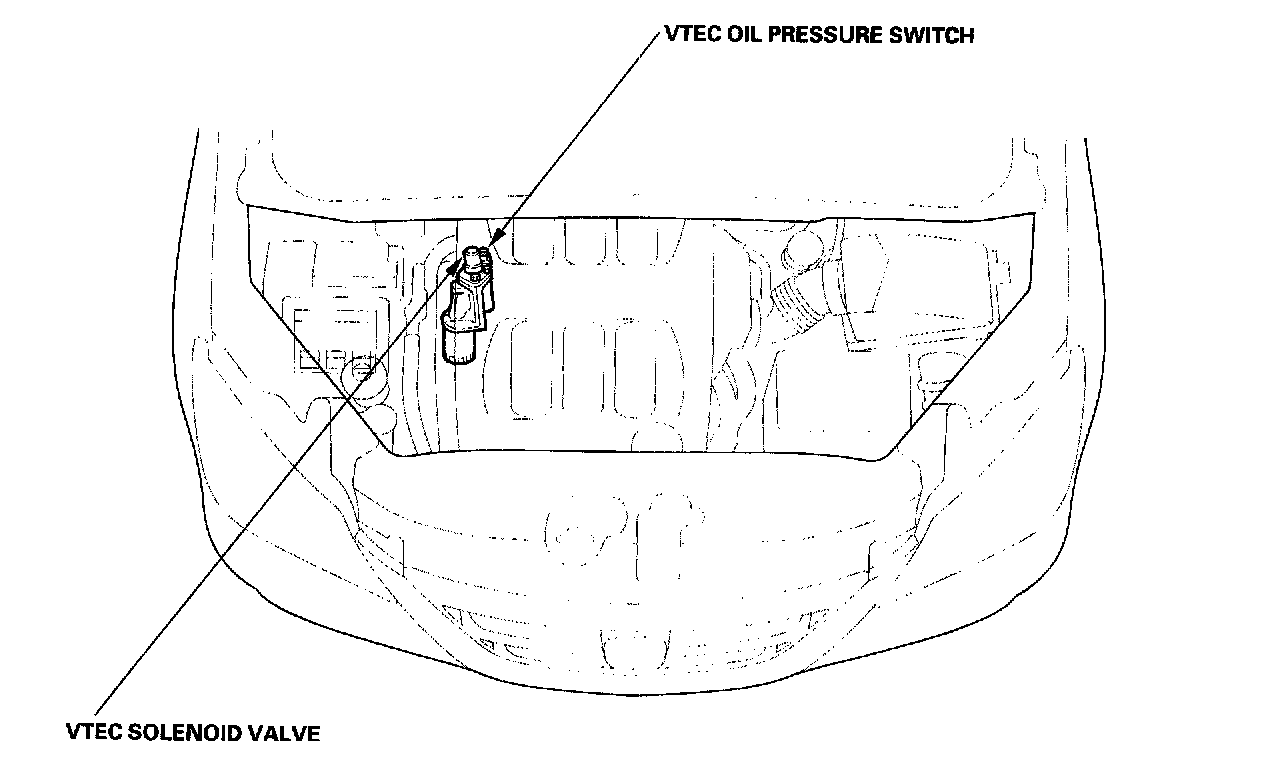

VTEC - Component Location Index:

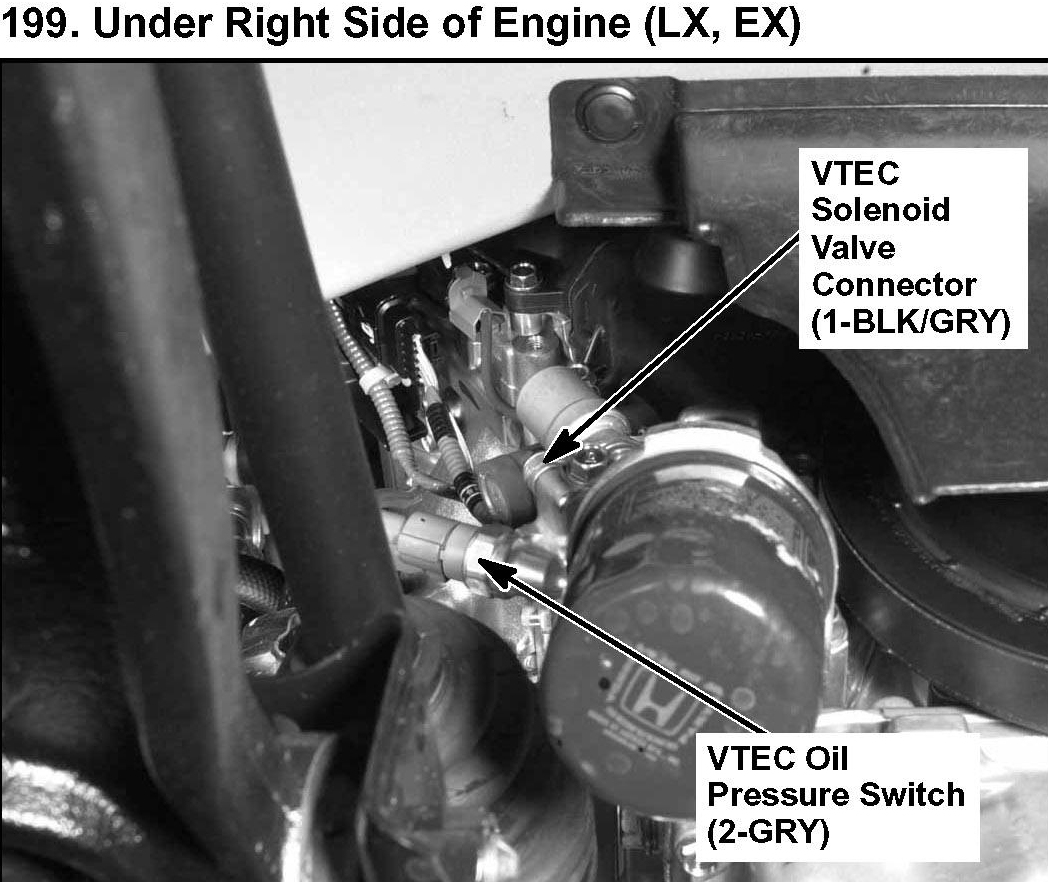

199. Under Right Side of Engine (LX, EX):
