Connector Views

206. Climate Control Panel (EX, EX-L, Touring):

216. Rear A/C Control Panel (LX) Rear Climate Control Panel (EX, EX-L, Touring):

326. Climate Control Unit, Rear (EX, EX-L, Touring):

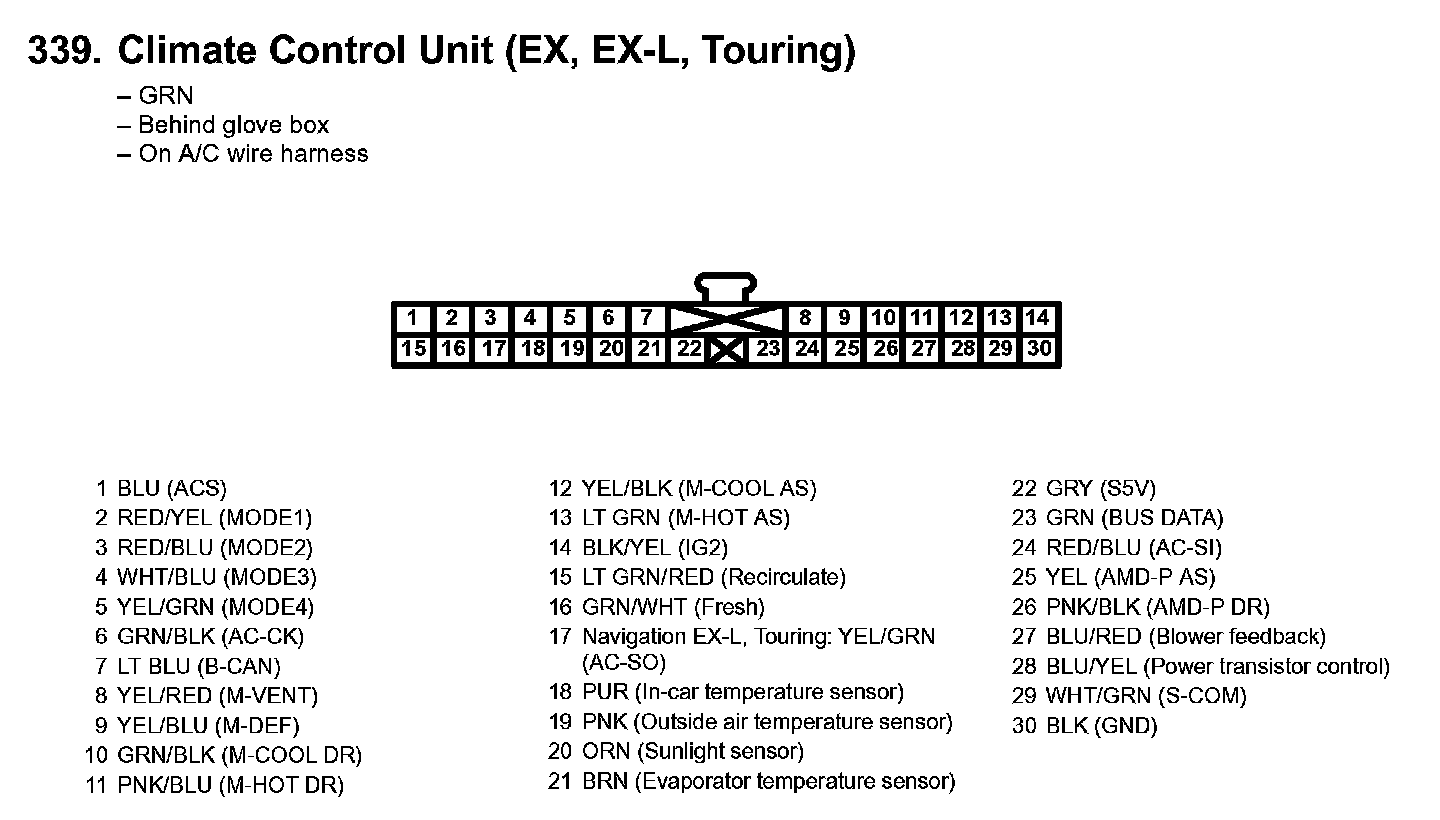

339. Climate Control Unit (EX, EX-L, Touring):

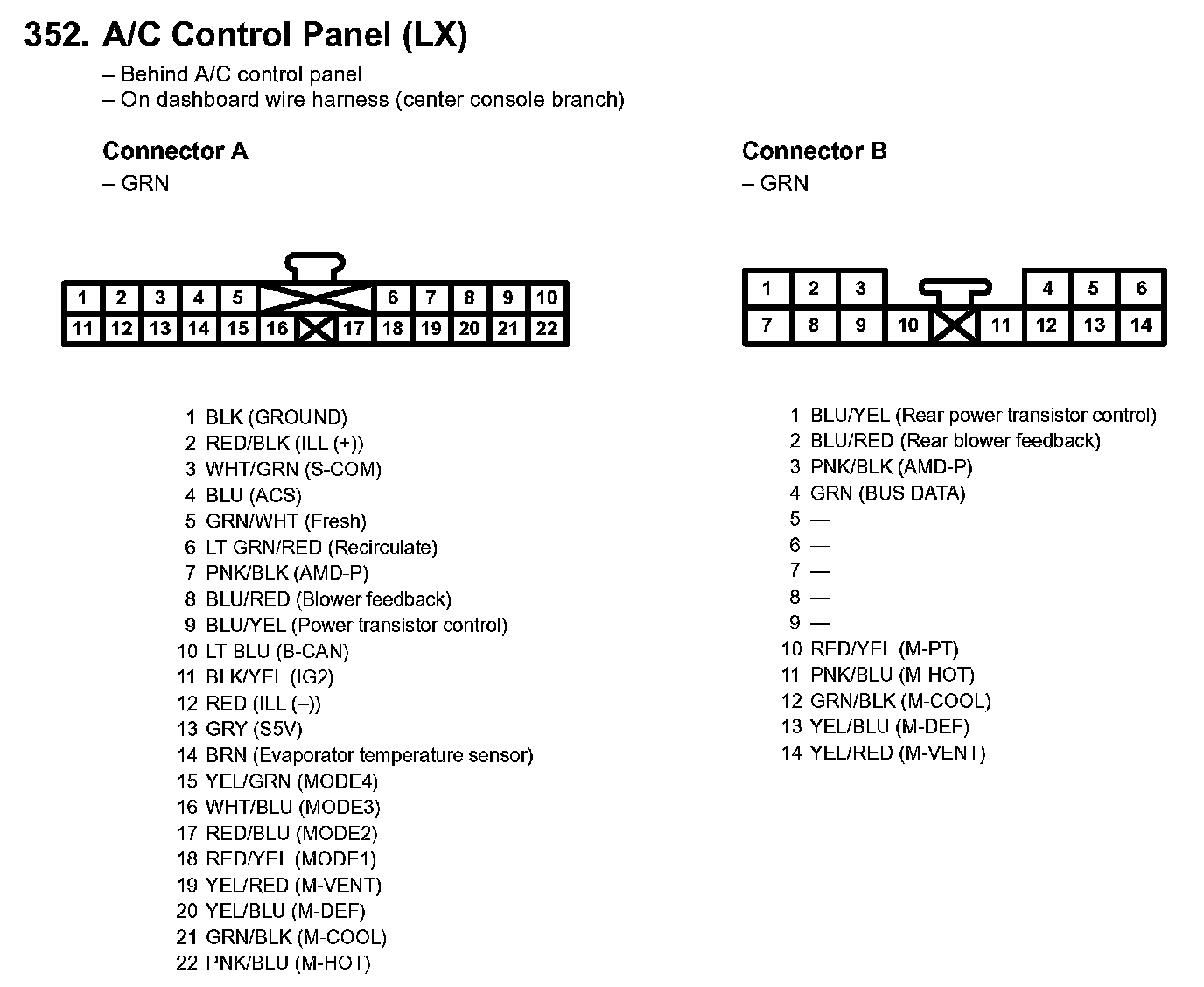

352. A/C Control Panel (LX):
