Cylinder Head Assembly

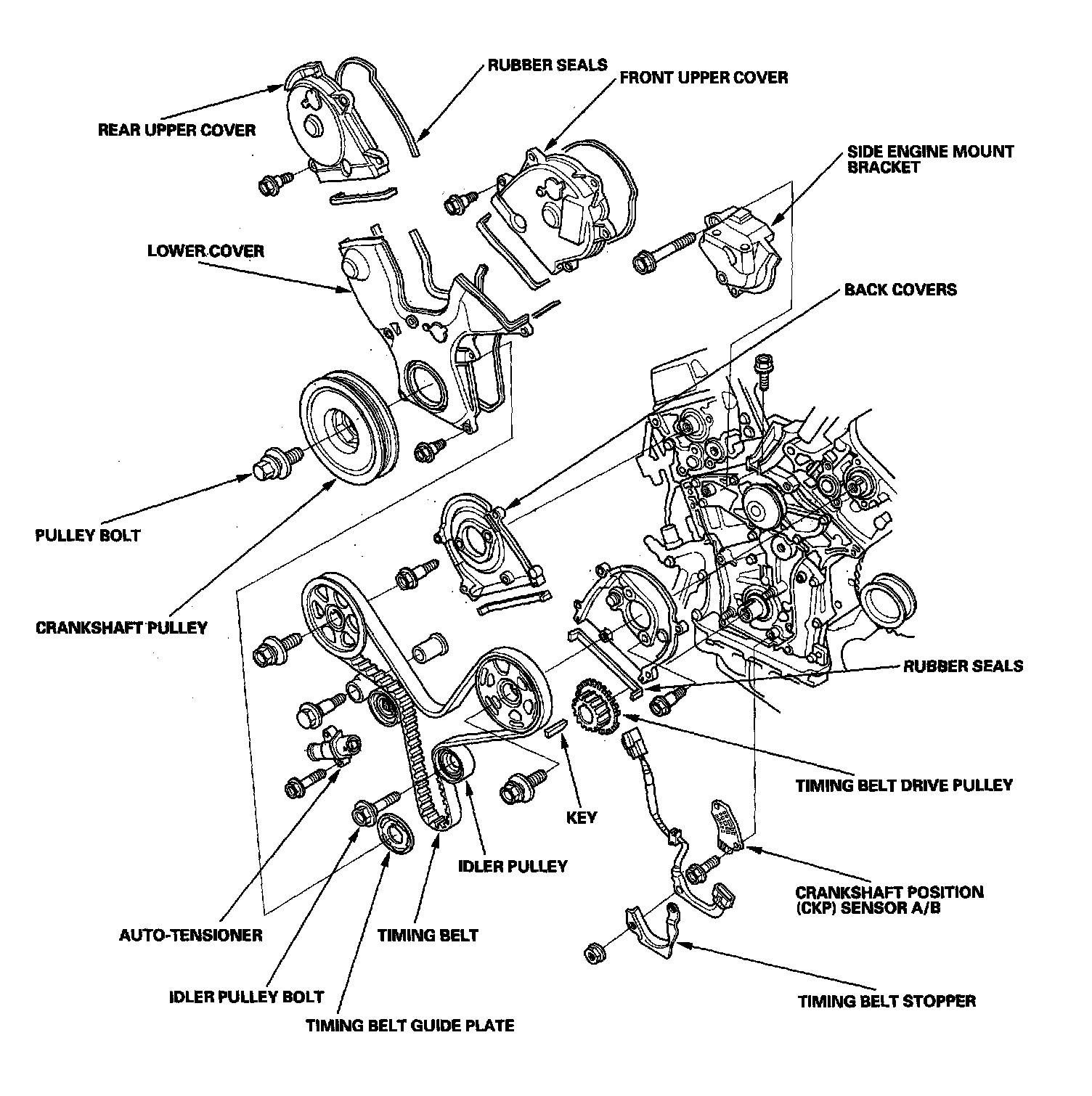

Component Location Index:




Component Location Index:

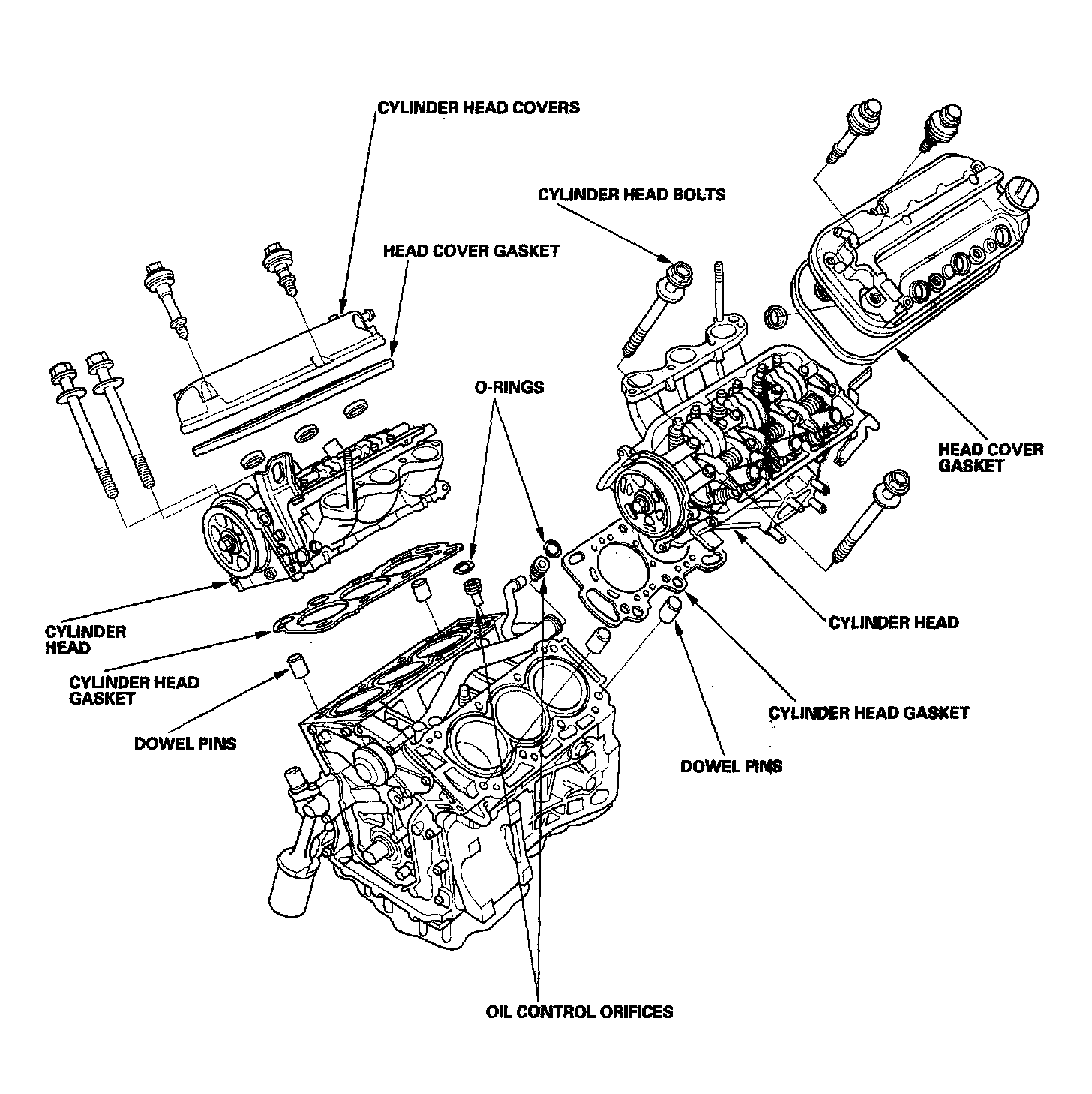

Component Location Index

Component Location Index:

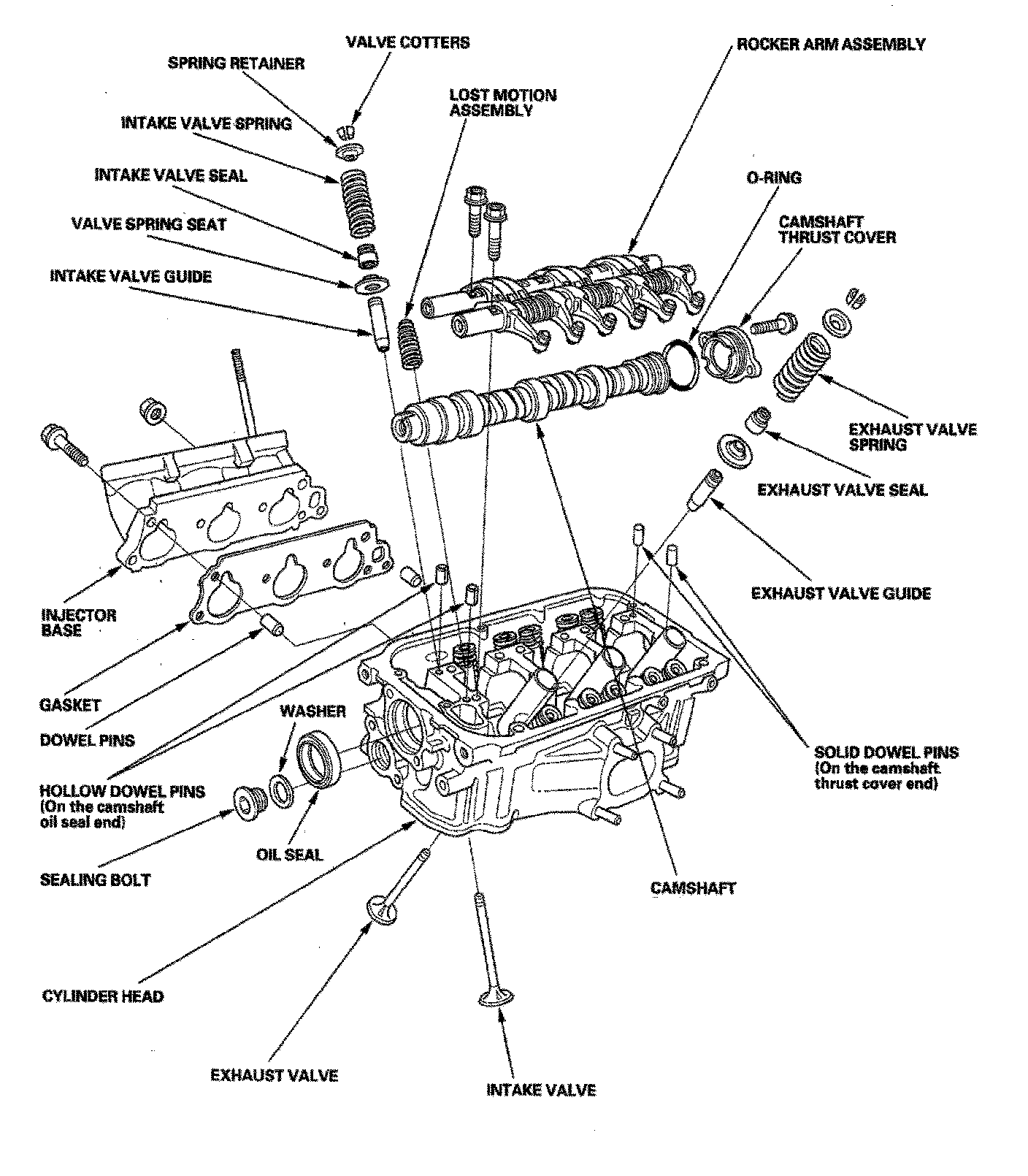

J35A6 engine

Component Location Index:

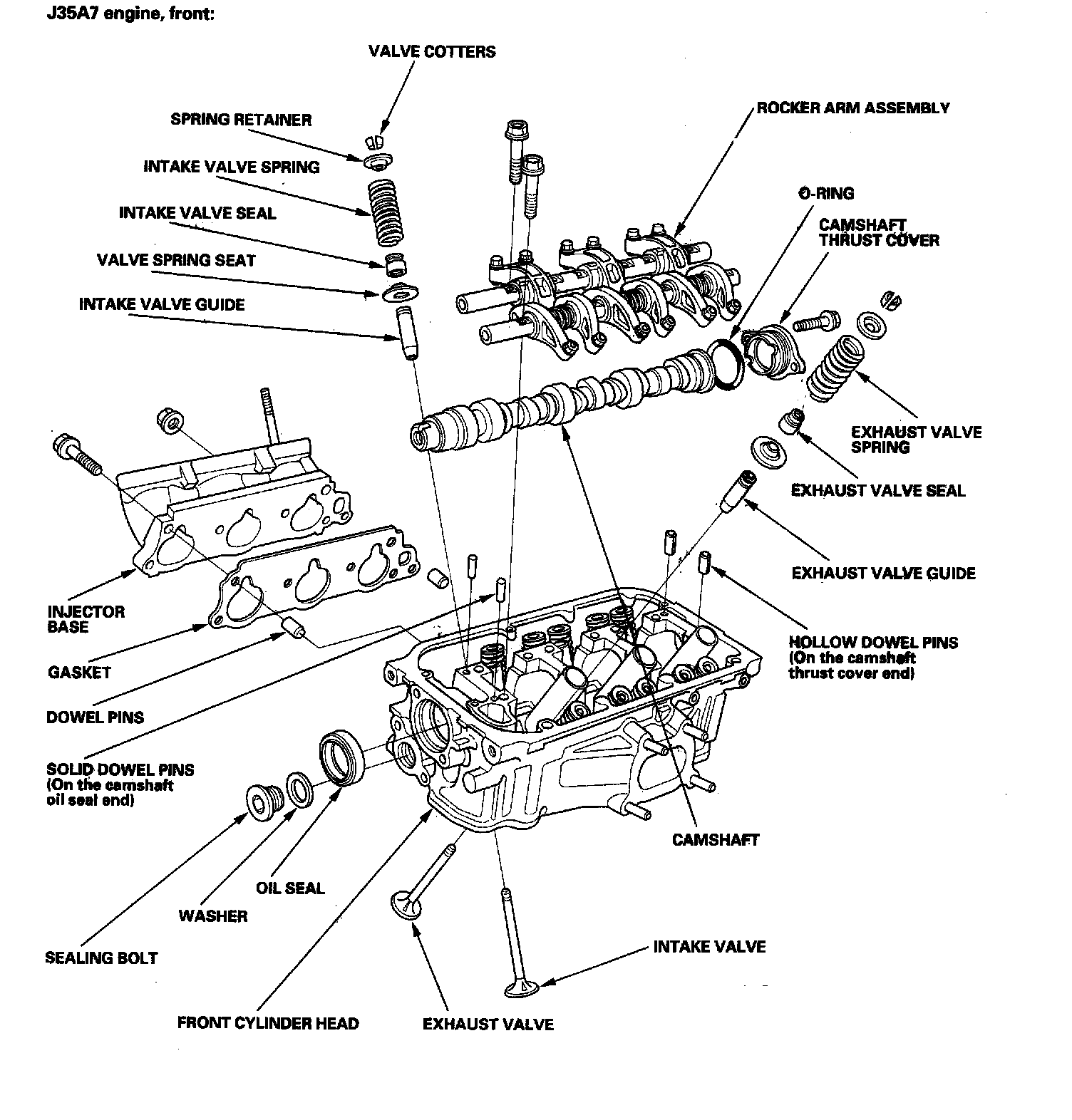

J35A7 engine, front

Component Location Index:

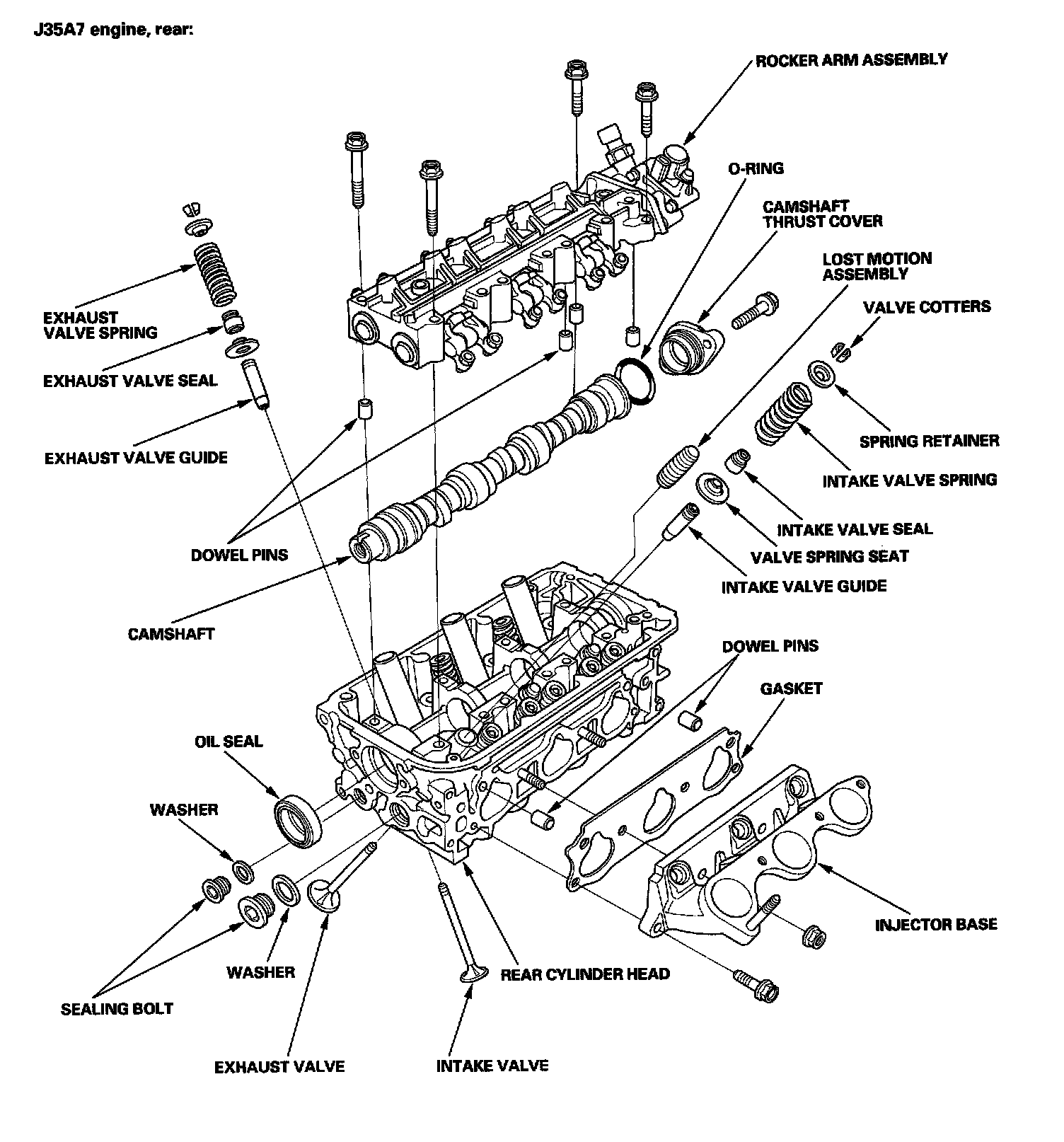

J35A7 engine, rear
