Home >> Honda >> 2005 >> Insight L3-1.0L Hybrid >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Continuously Variable Transmission/Transaxle, CVT >> System Specifications >> Standards and Service Limits

Standards and Service Limits

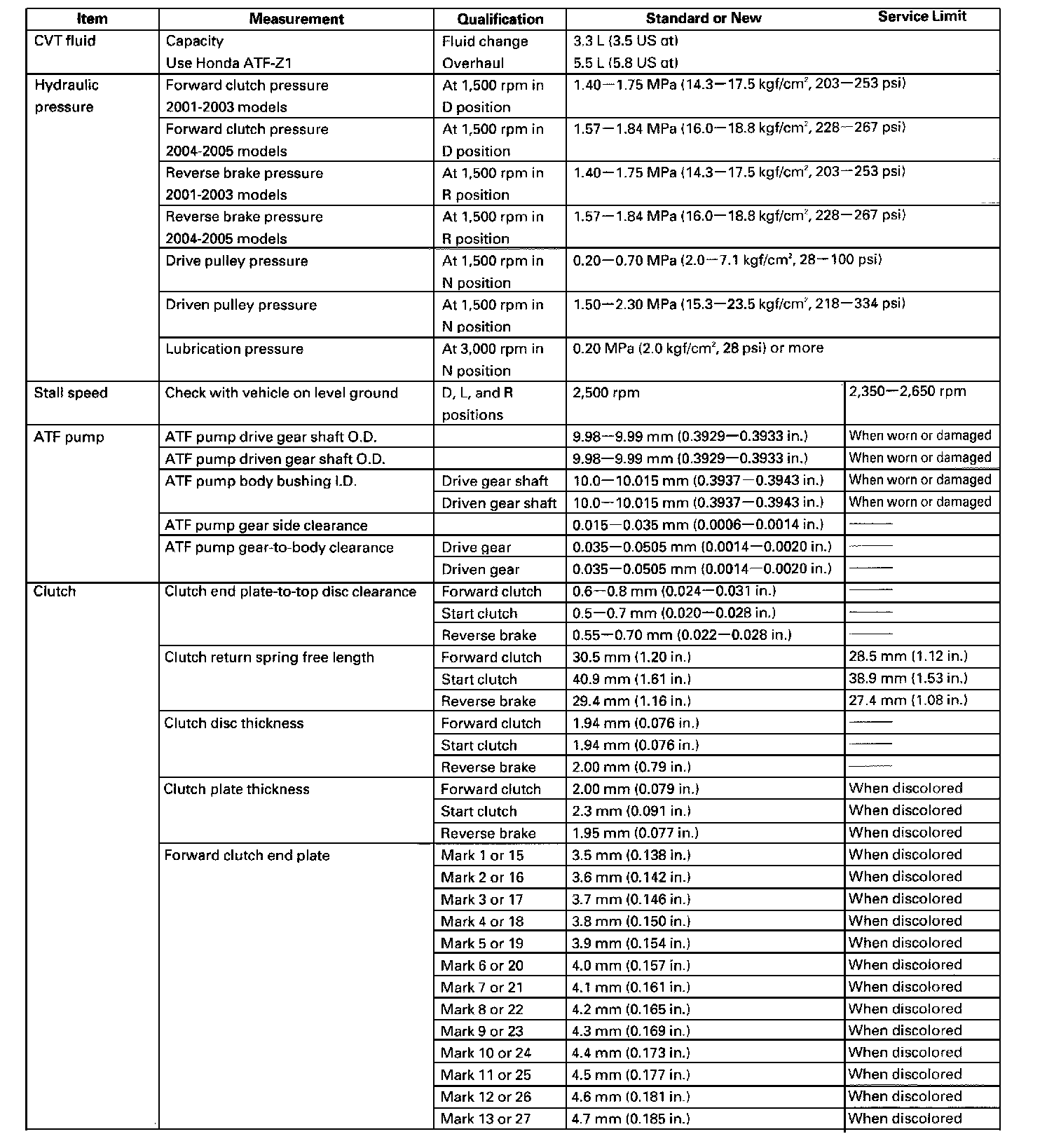

CVT and CVT Differential - Part 1:

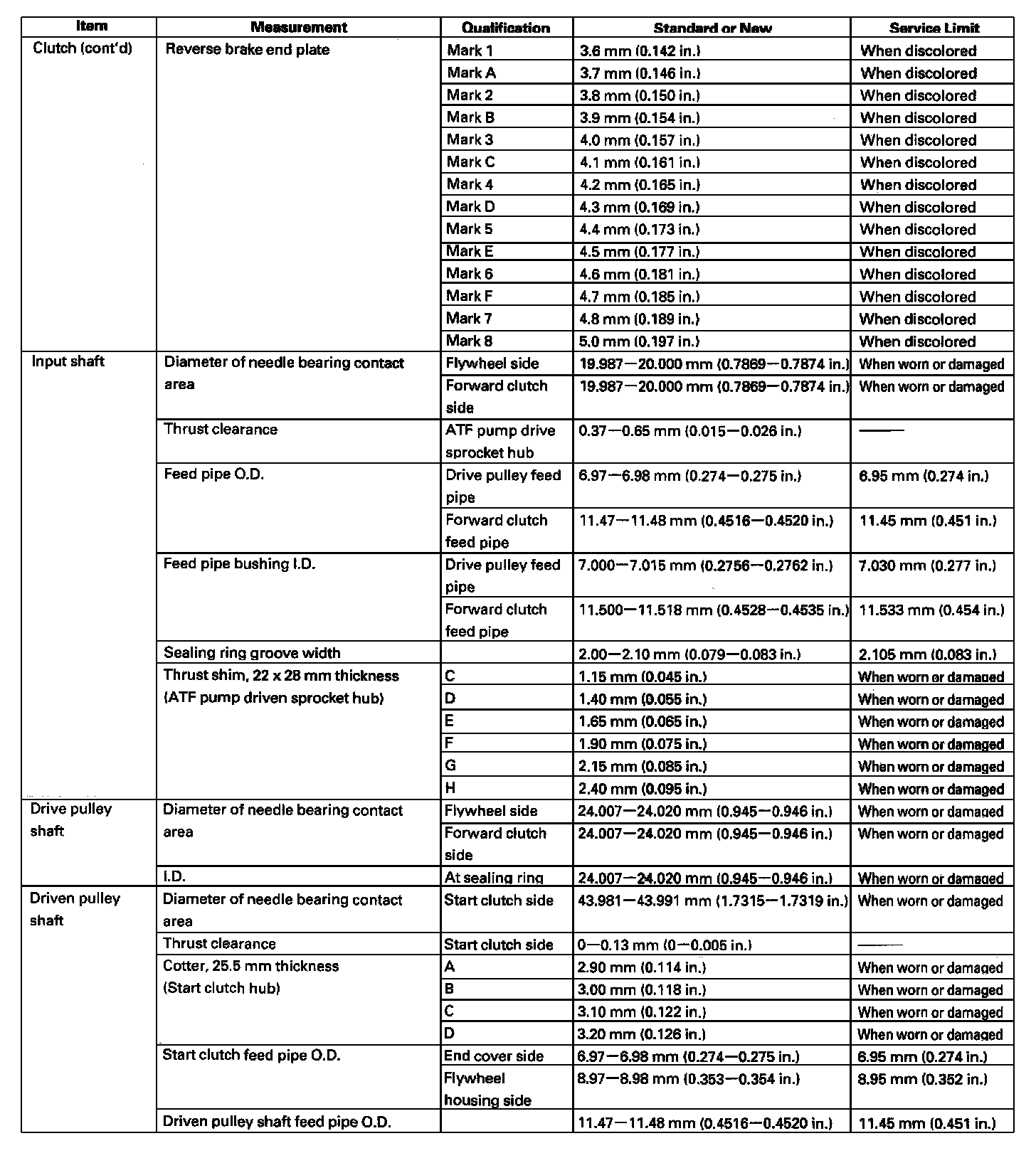

CVT and CVT Differential - Part 2:

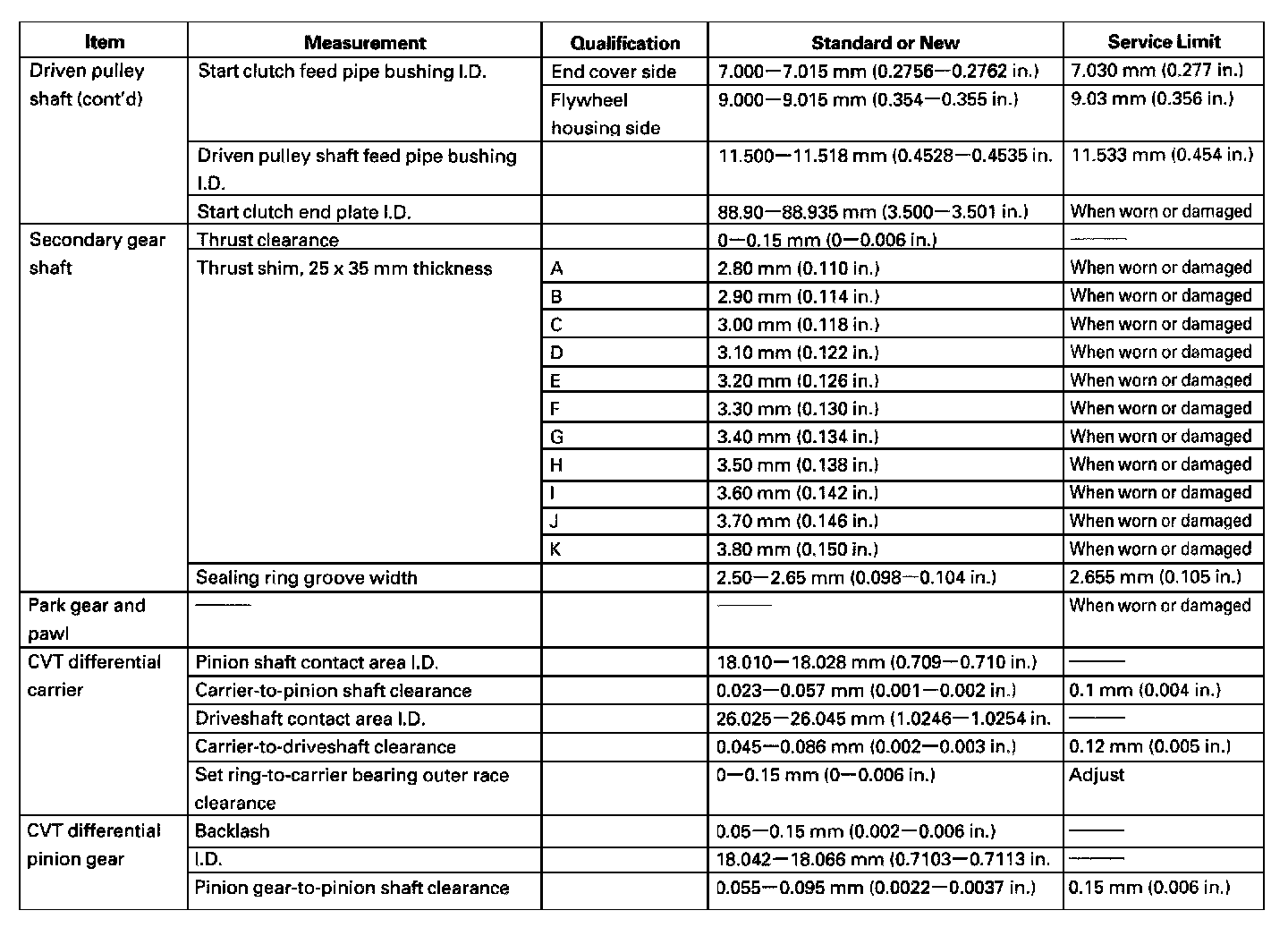

CVT and CVT Differential - Part 3:
