Ignition Coil: Service and Repair

Ignition Coil Removal/Installation




1. Remove the engine cover.
2. Disconnect the ignition coil connector.

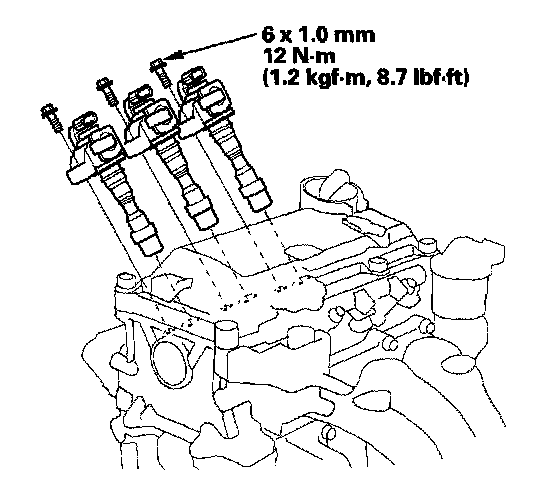

3. Remove the ignition coils.




4. Install the ignition coils in the reverse order of removal.
