Home >> Honda >> 2005 >> Insight L3-1.0L Hybrid >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Continuously Variable Transmission/Transaxle, CVT >> End Cover/Intermediate Housing

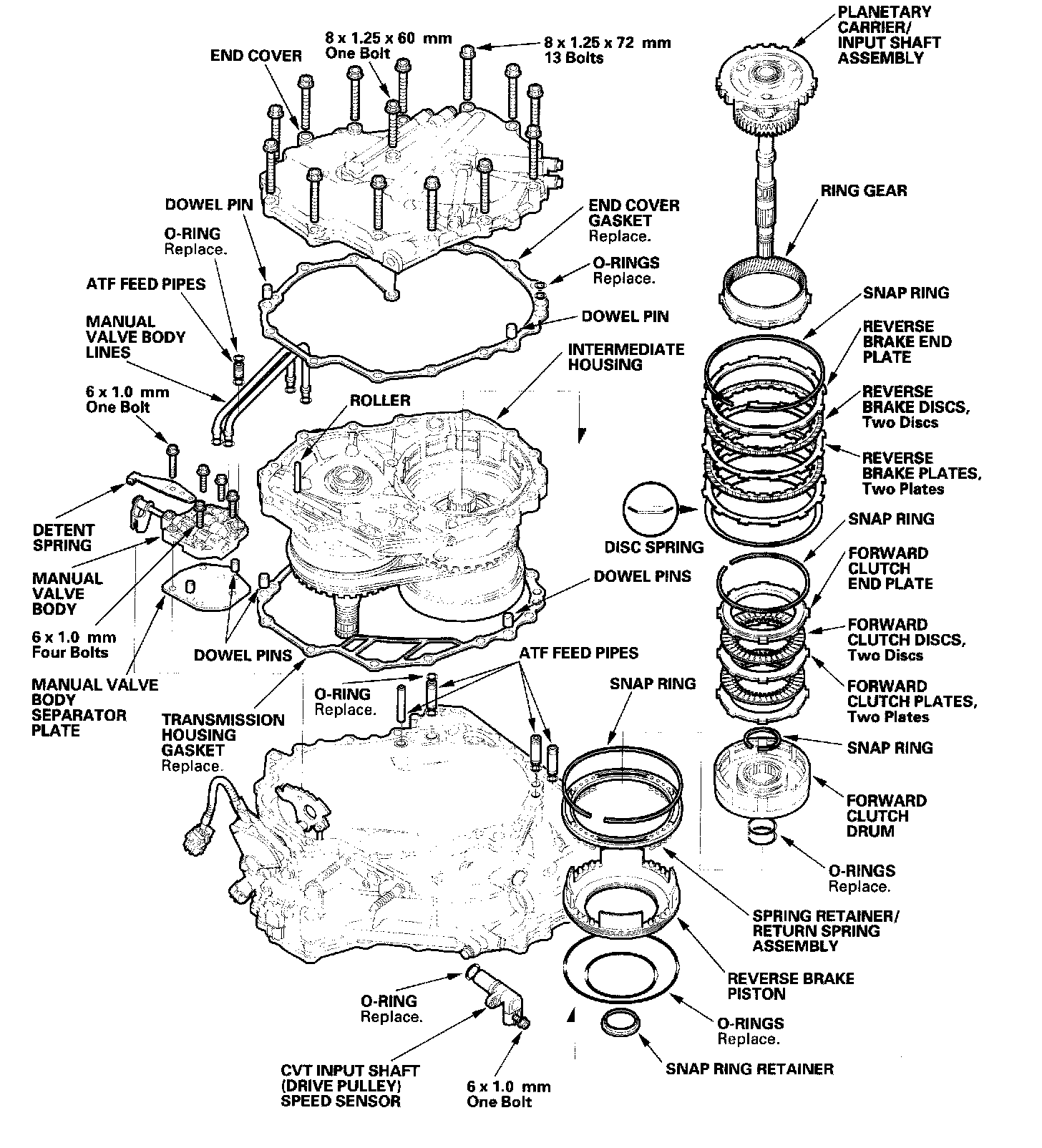

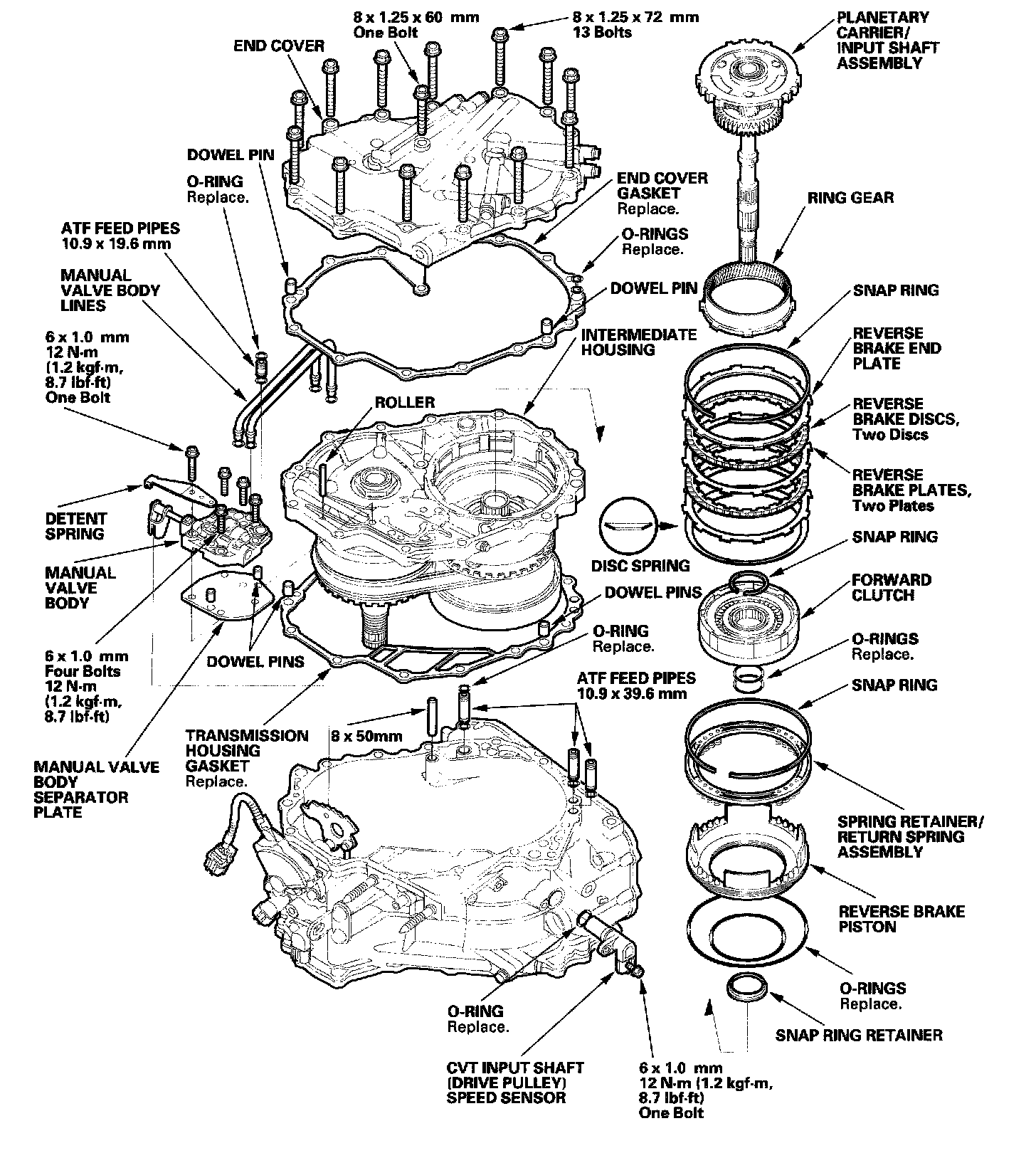

End Cover/Intermediate Housing
