Valve Body

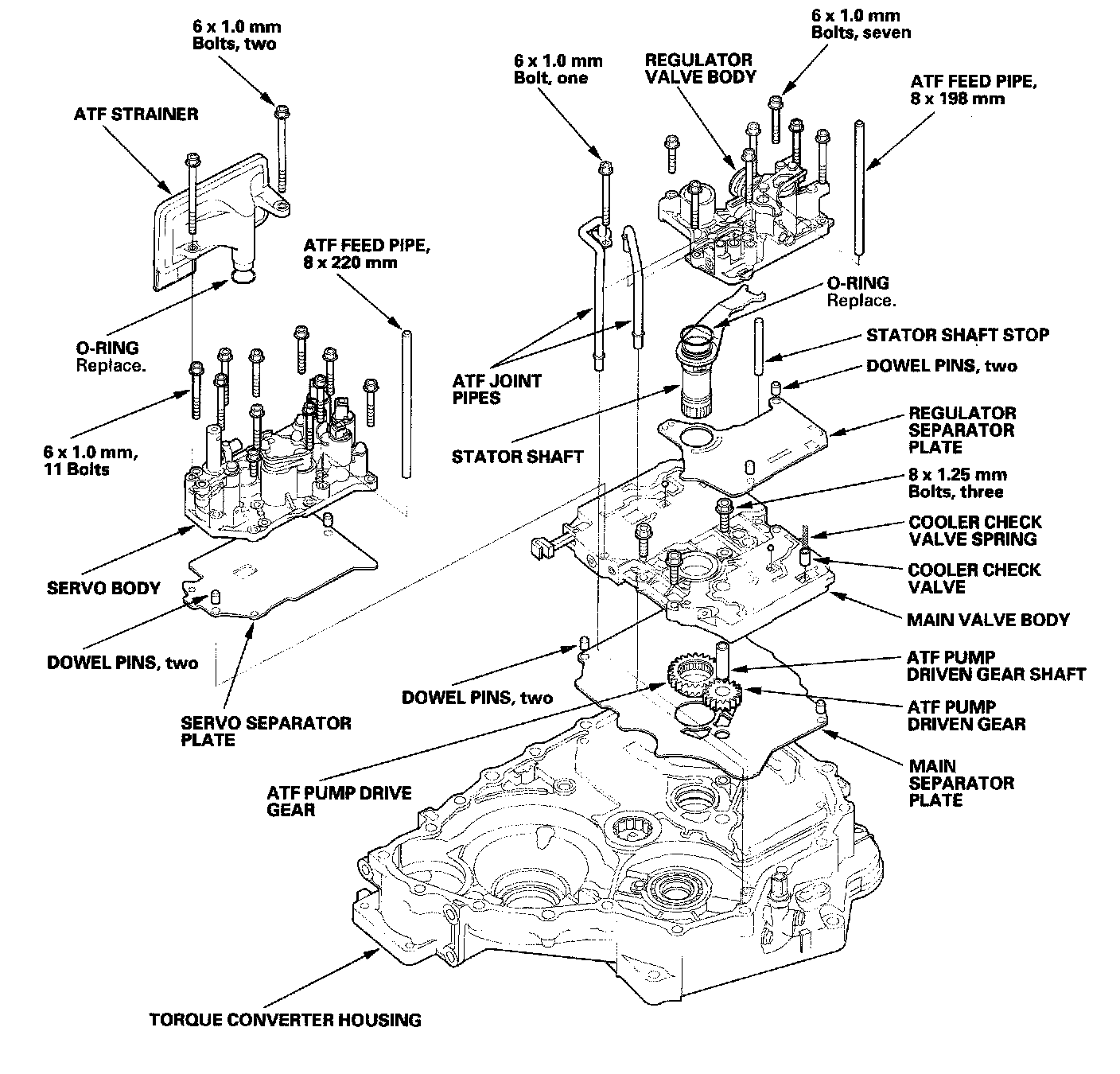

Exploded View - 2005 Model





NOTE: The illustration shows the 4WD transmission; the 2WD is similar.

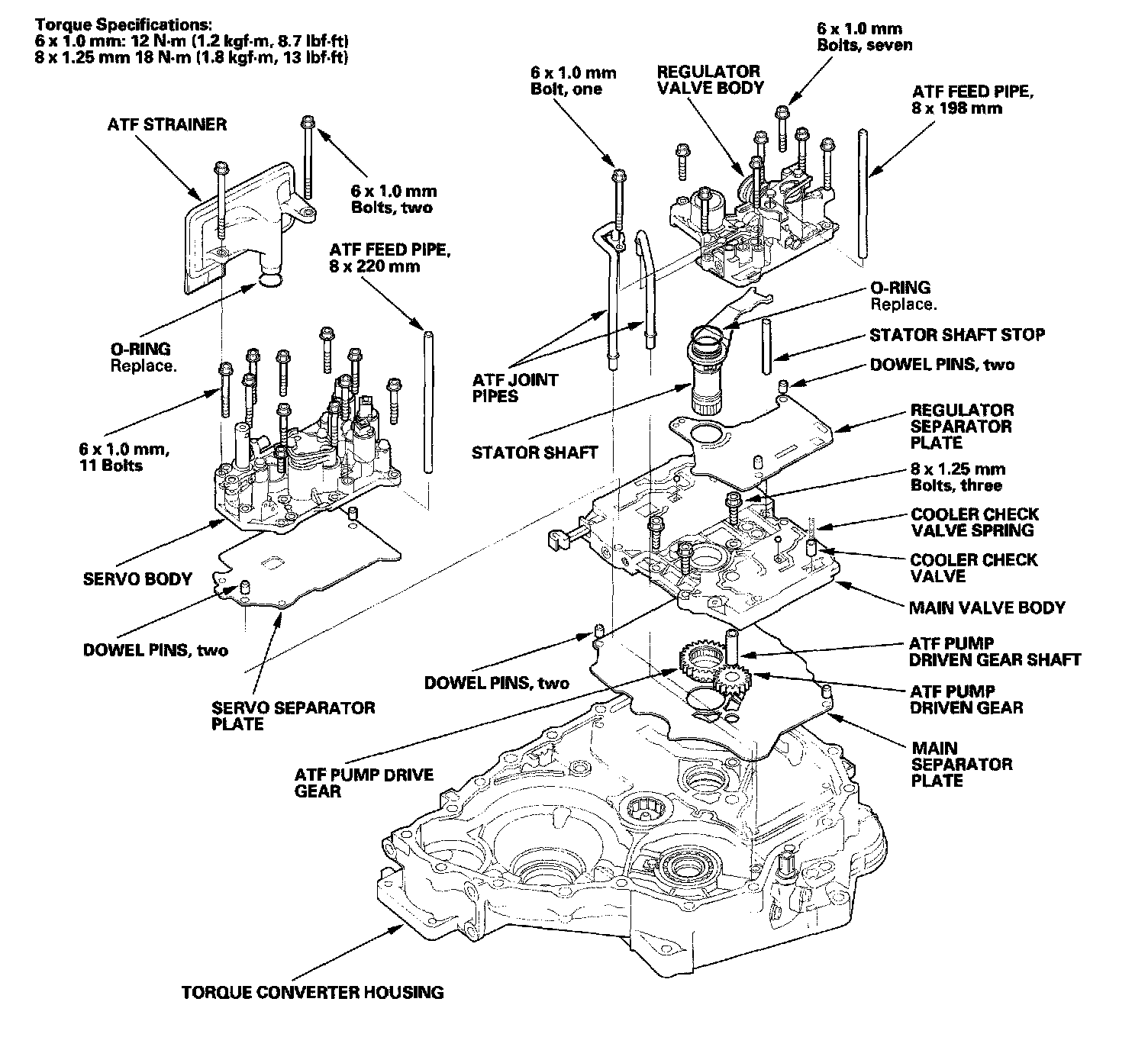

Exploded View - 2005 Model





NOTE: The illustration shows the 4WD transmission; the 2WD is similar.
