Home >> Honda >> 2005 >> Civic L4-1.7L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Electric Load Sensor >> Locations

Electric Load Sensor: Locations

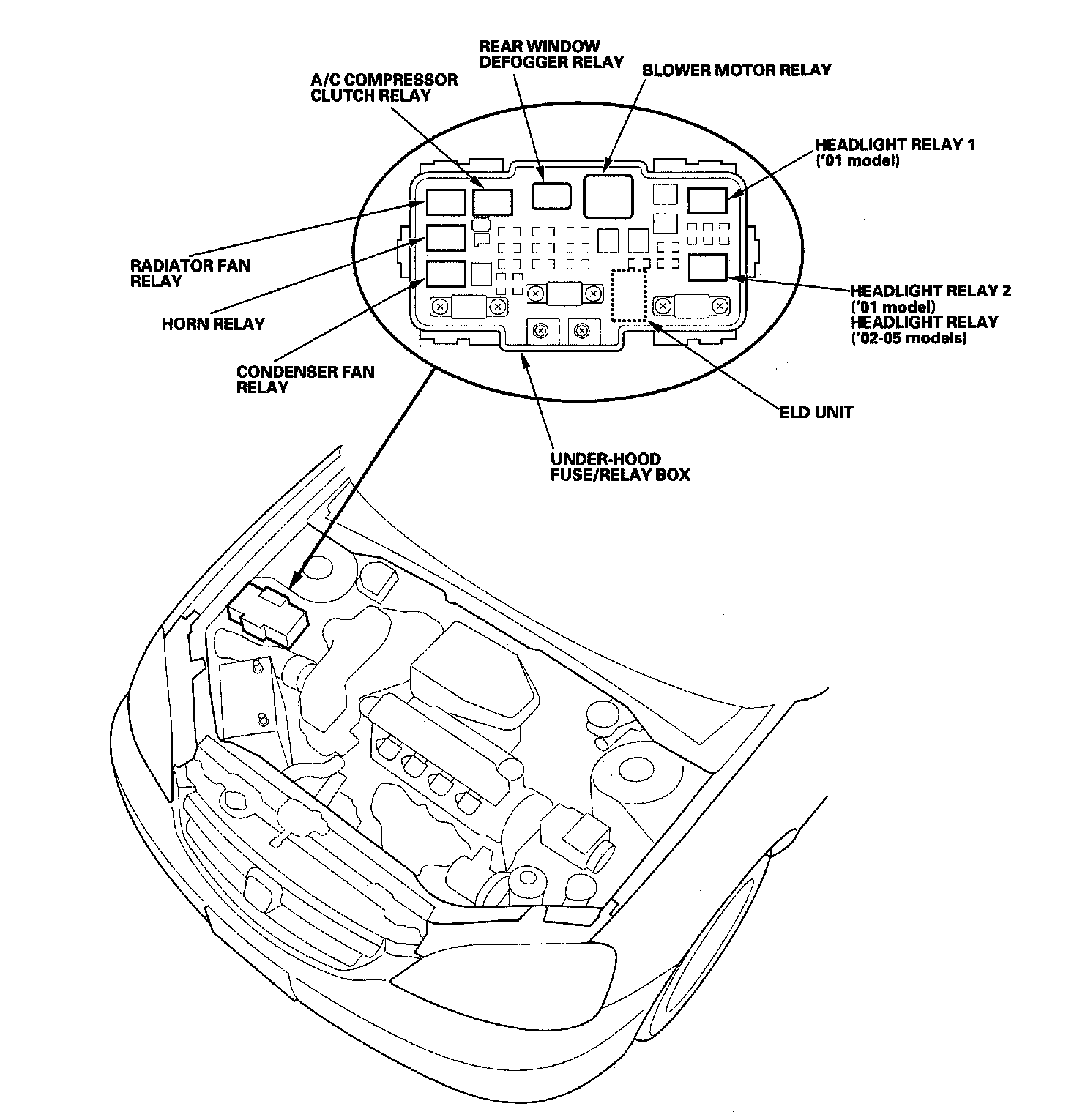

Relay And Control Unit Locations - Engine Compartment:

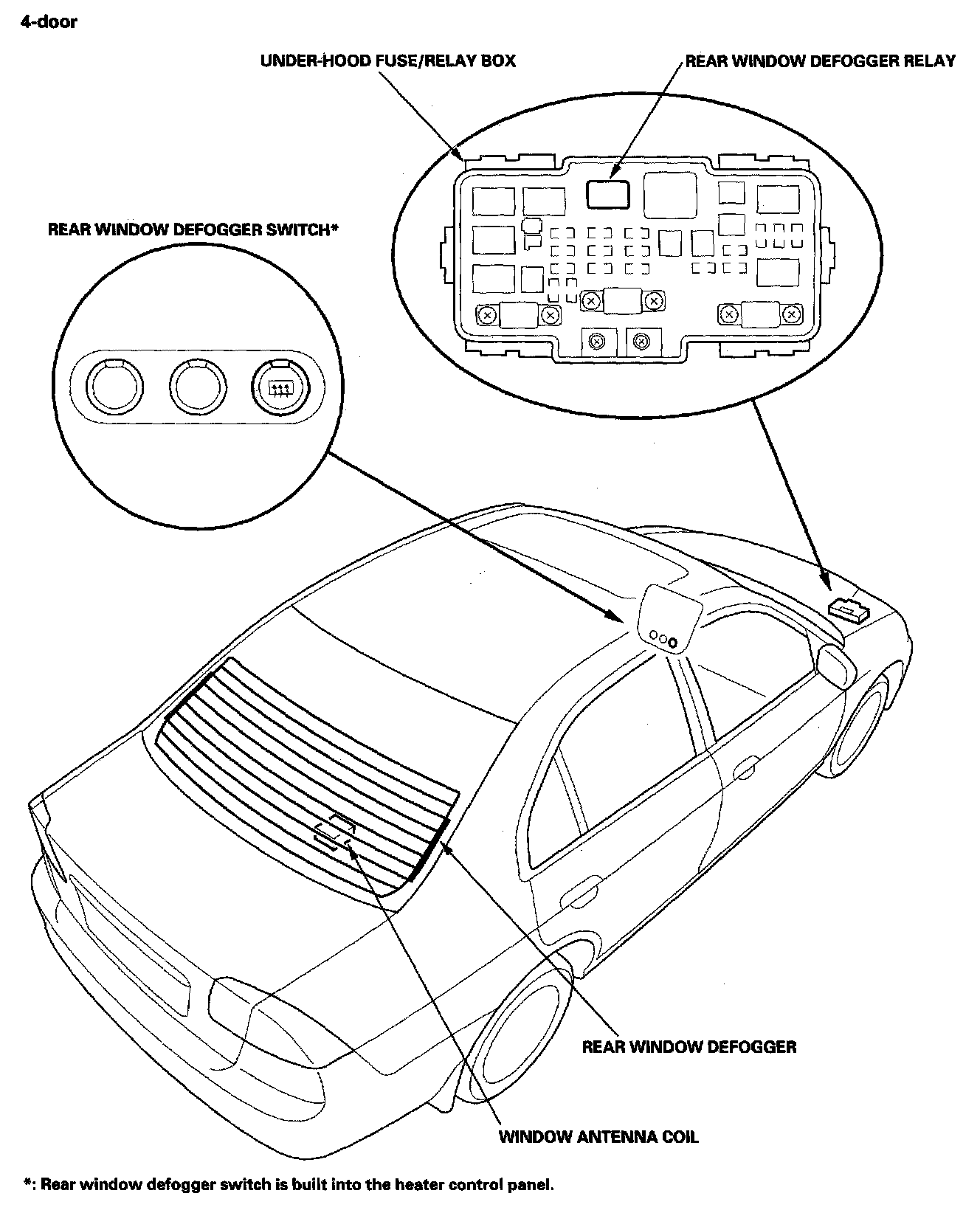

Rear Window Defogger - Component Location Index:

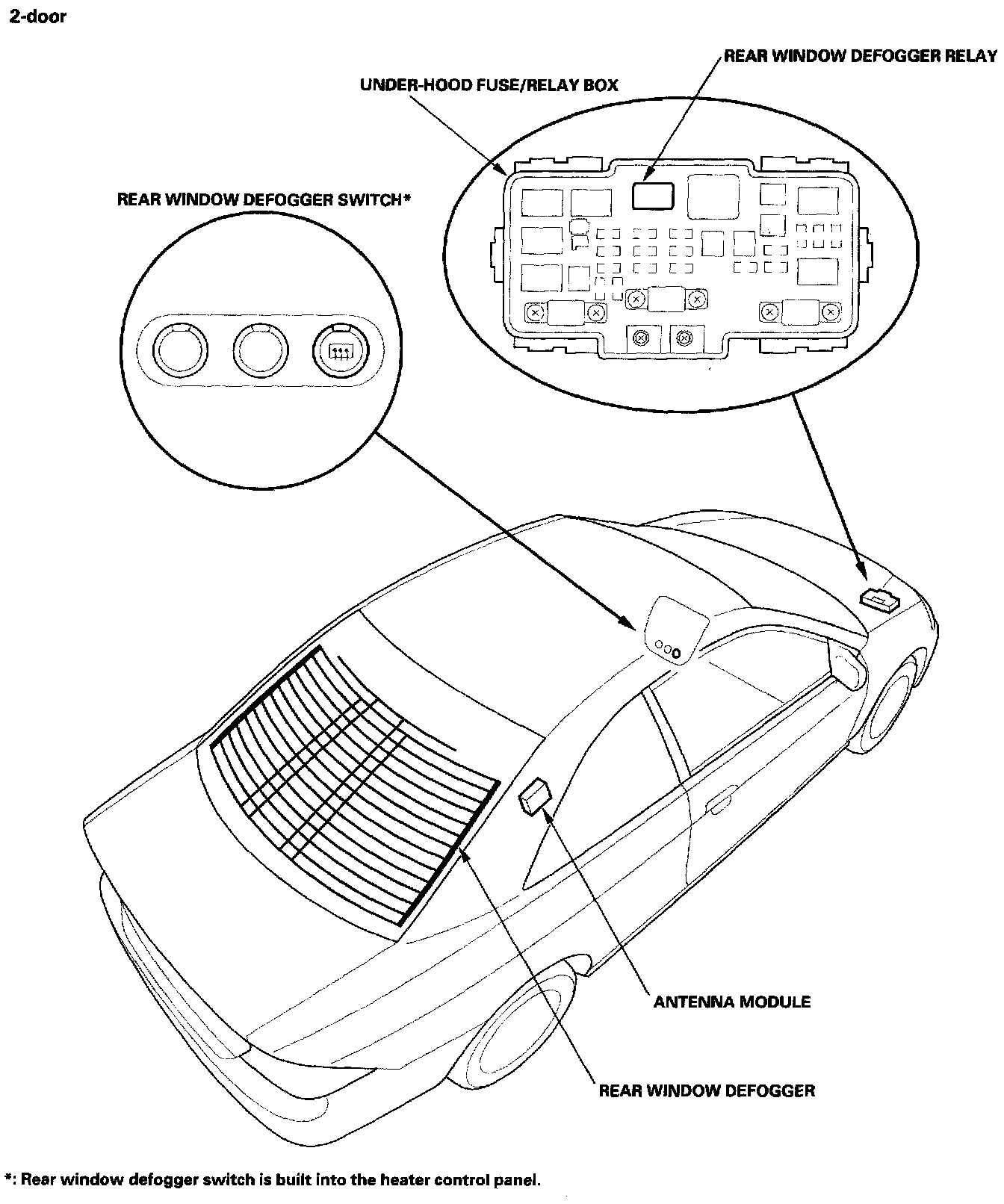

Rear Window Defogger - Component Location Index:
