Honda
>>
2005
>>
CR-V 2WD L4-2.4L
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Body and Frame
>>
Frame
Frame

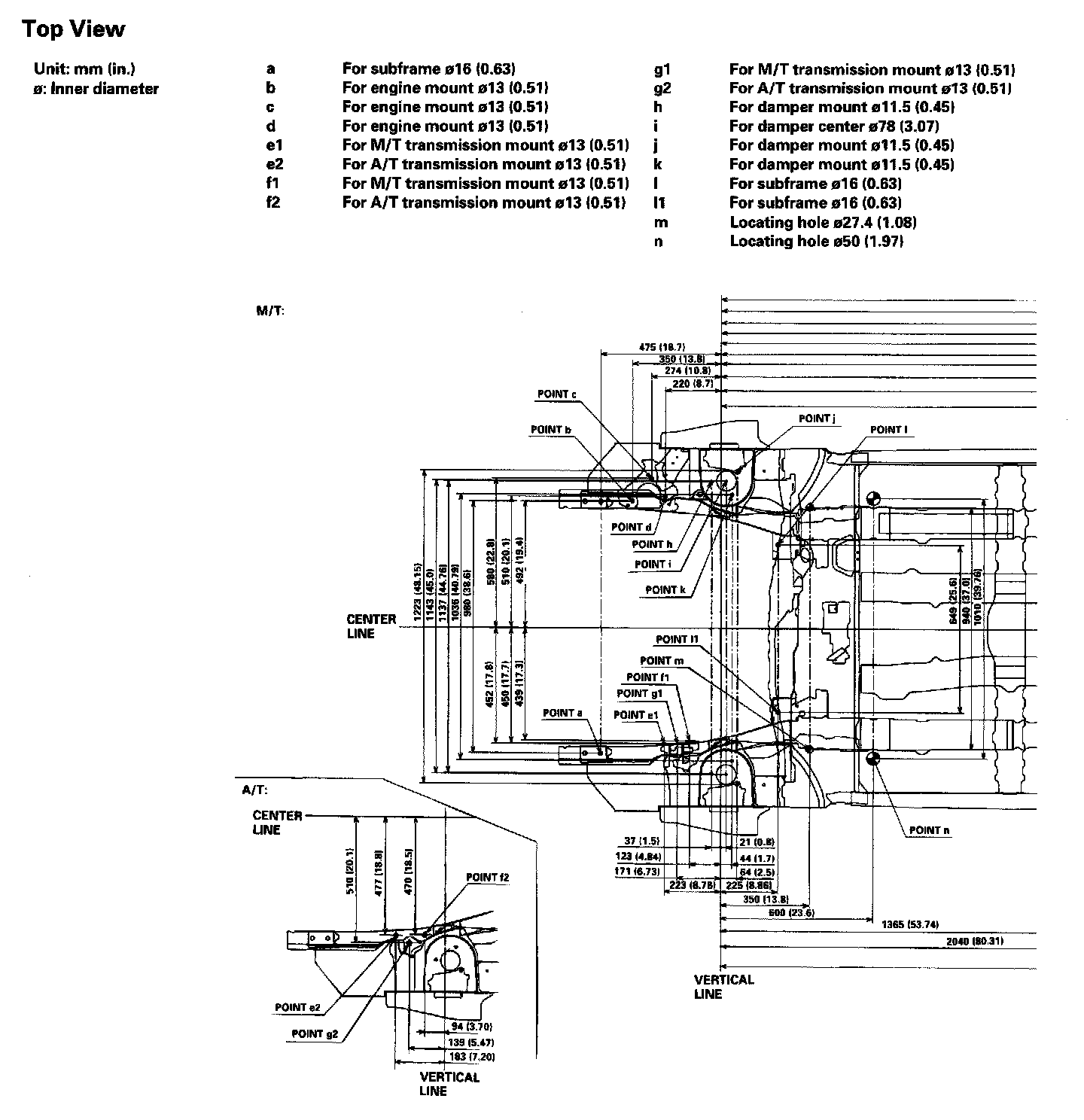

Frame Repair Chart - Top View (Part 1):

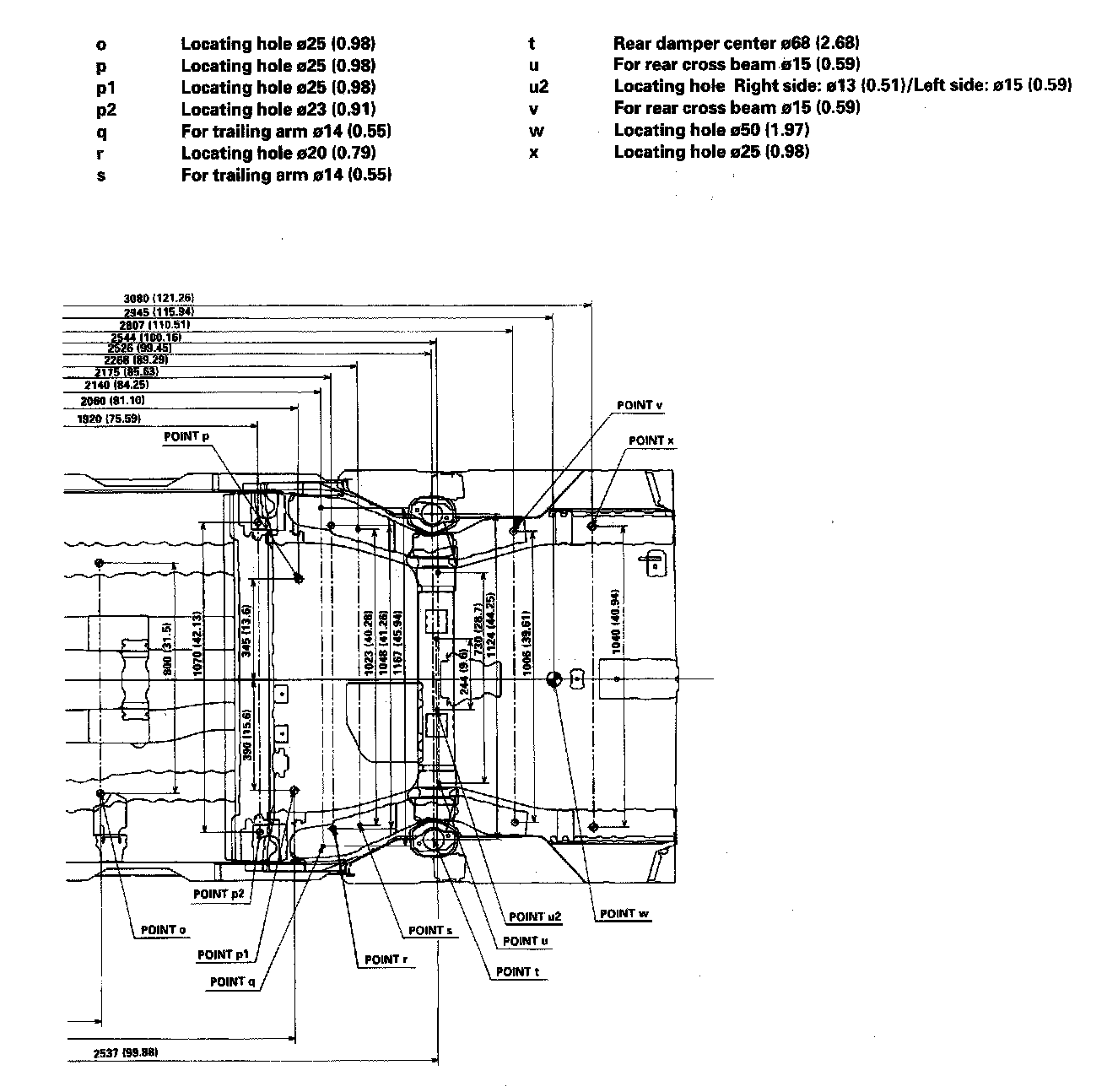

Frame Repair Chart - Top View (Part 2):

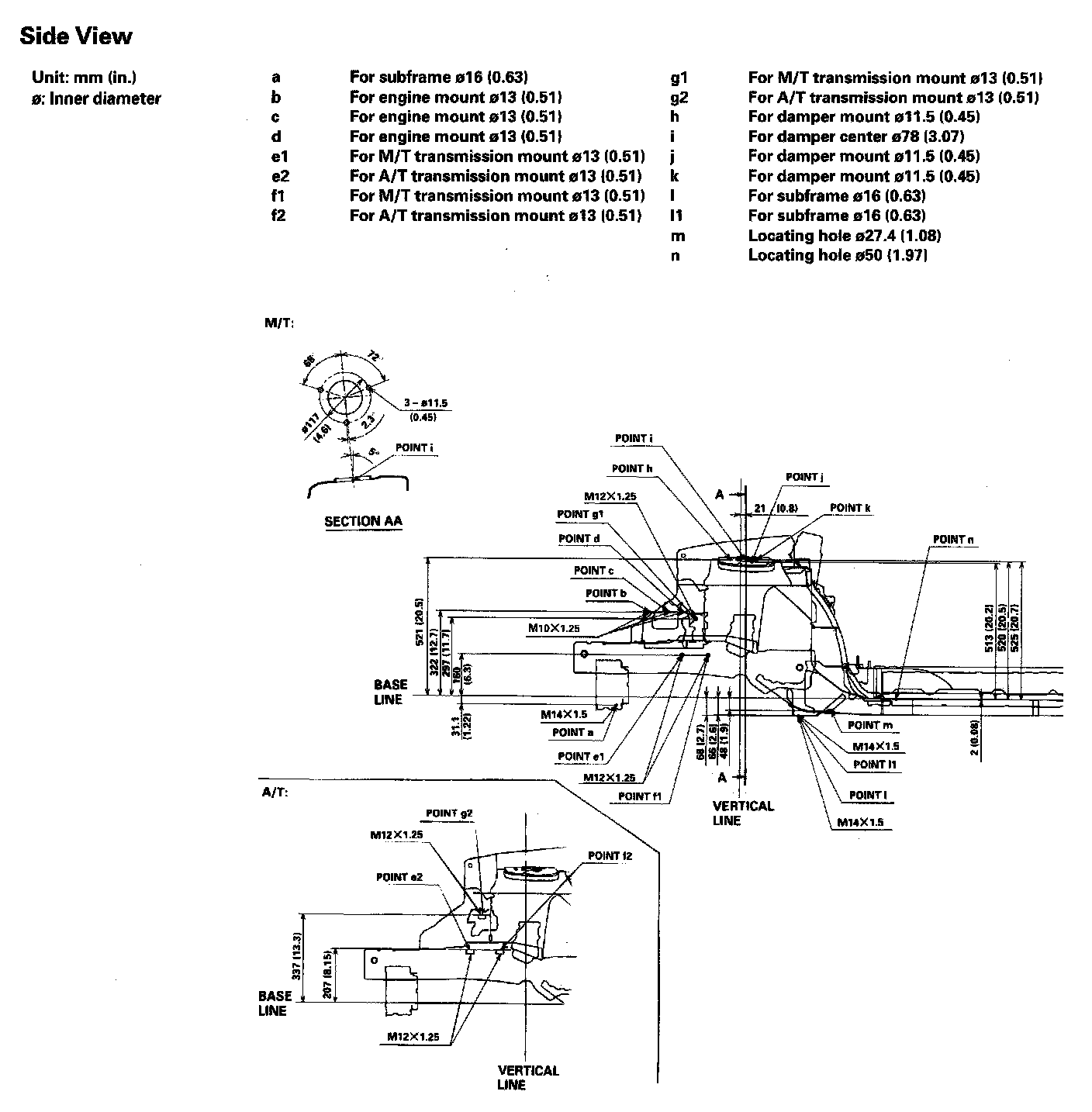

Frame Repair Chart - Side View (Part 1):

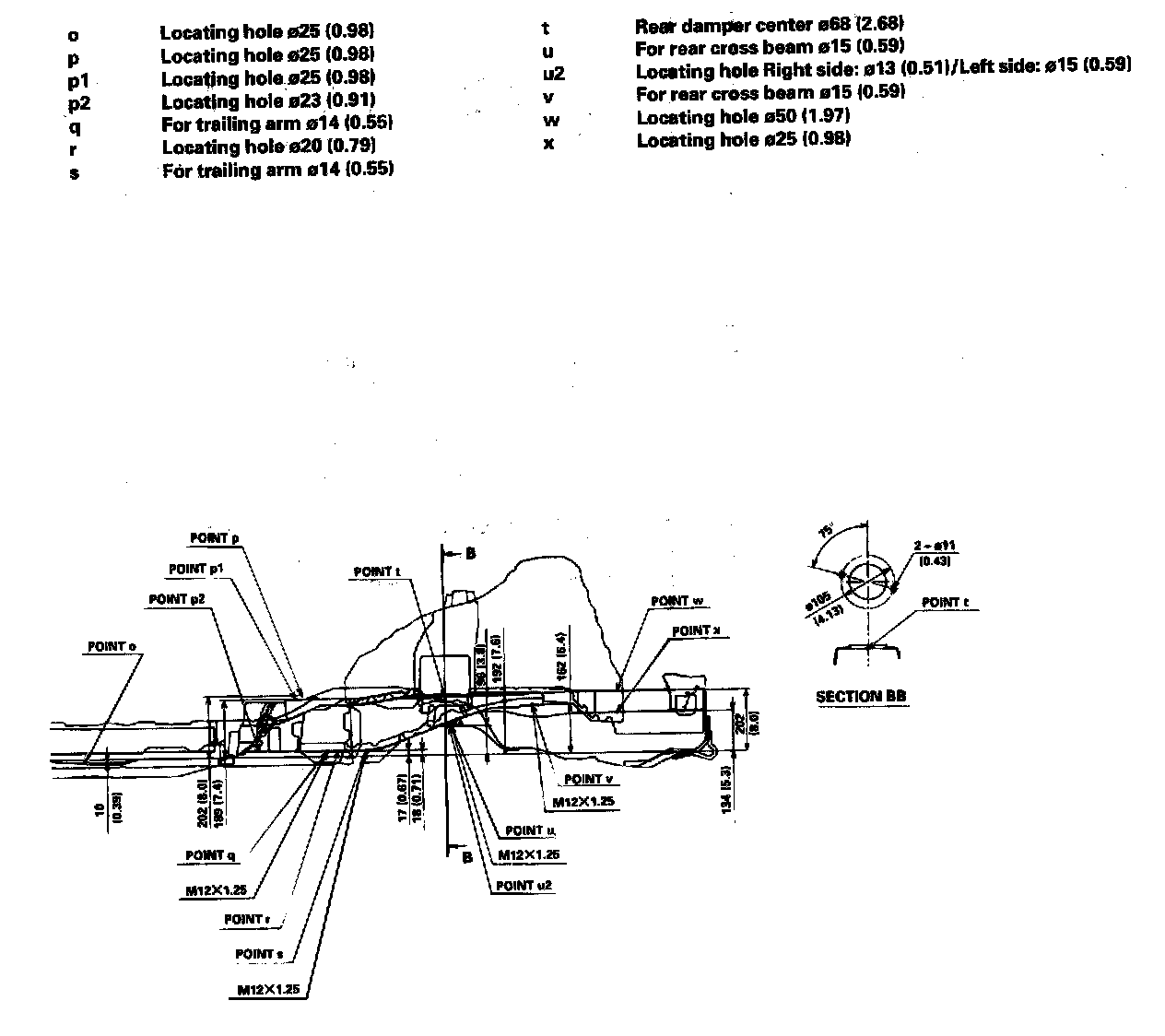

Frame Repair Chart - Side View (Part 2):
