Multiple Junction Connector
Multiple Junction Connector
192. C456 (Junction Connector):

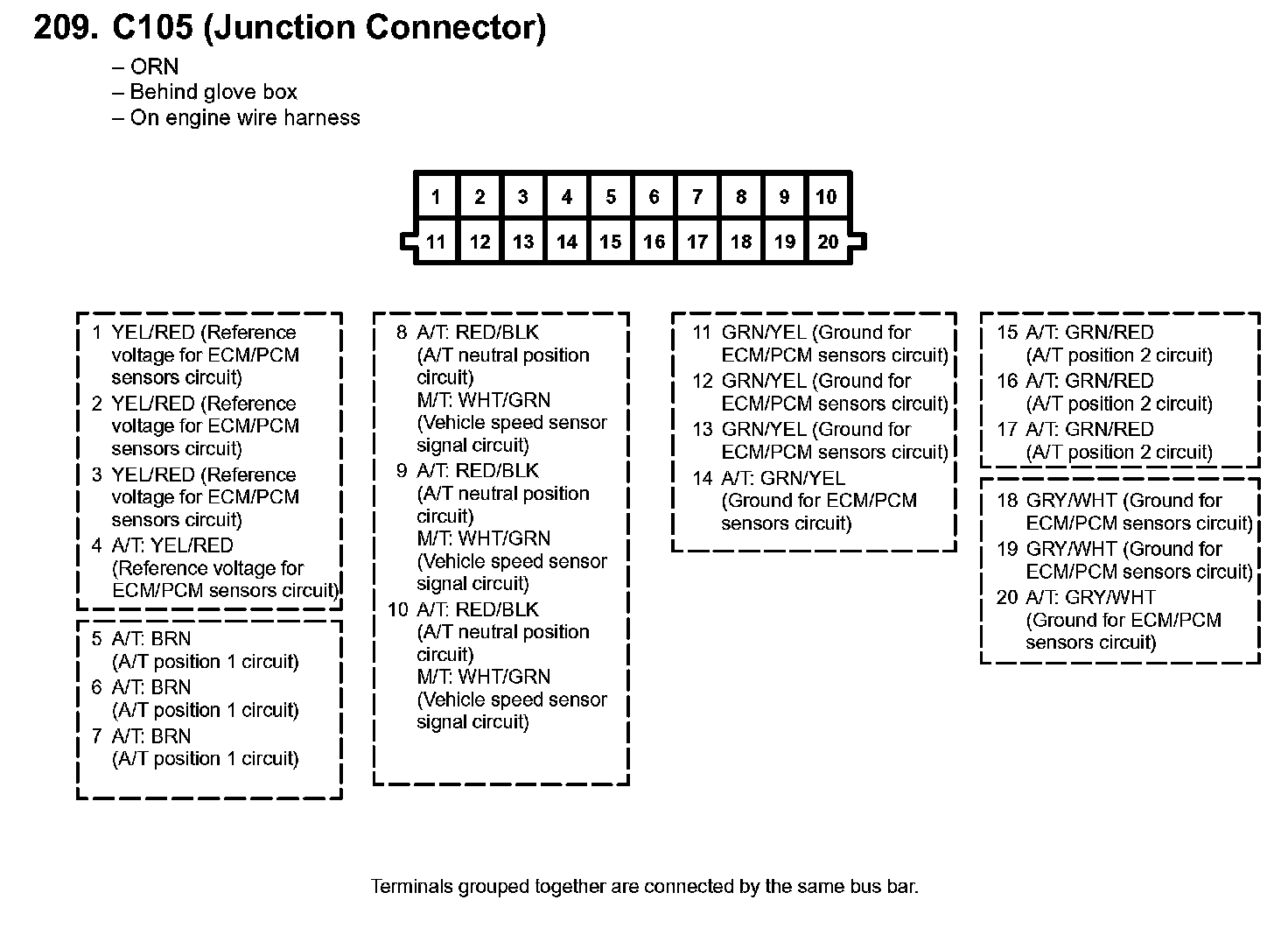

209. C105 (Junction Connector):

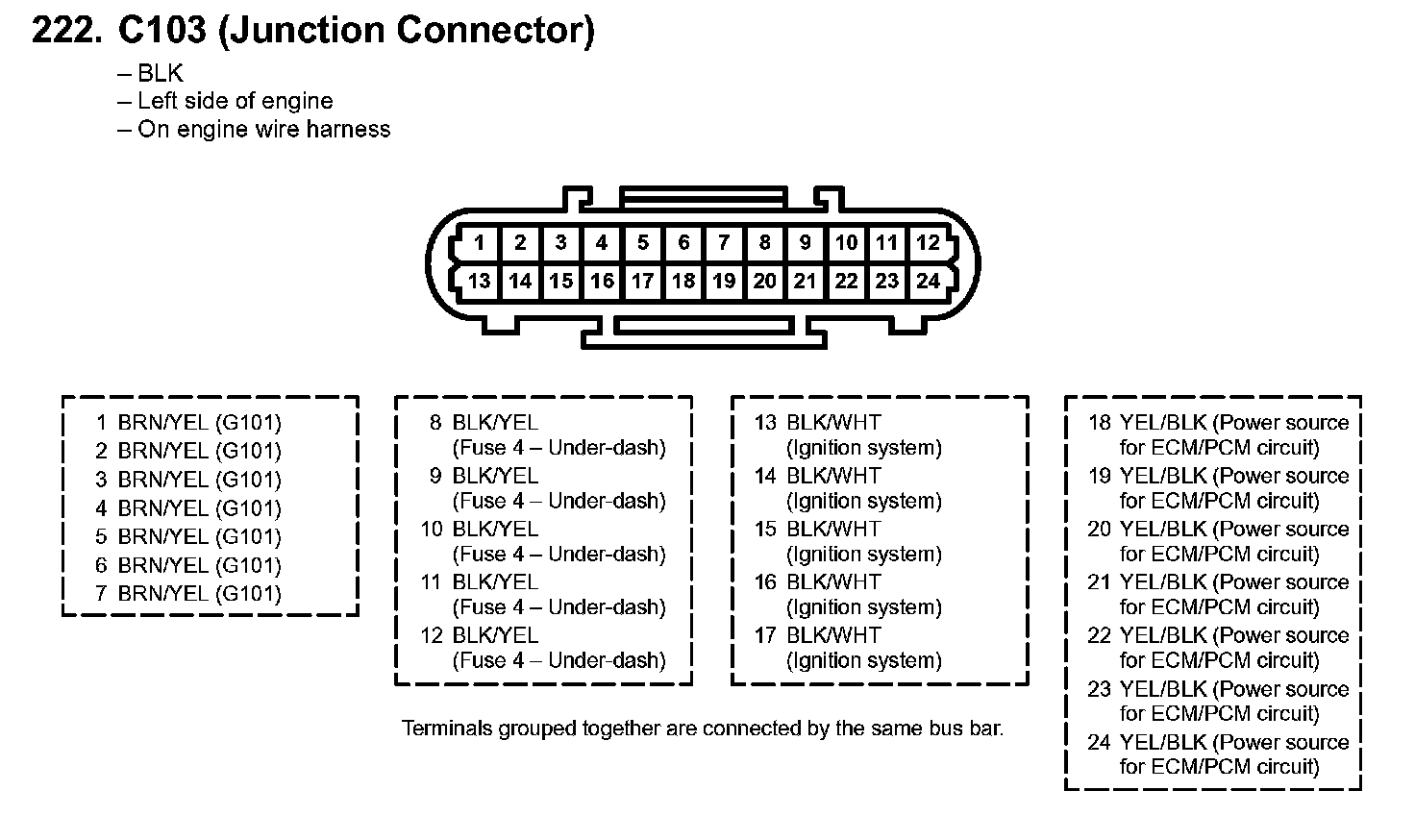

222. C103 (Junction Connector):

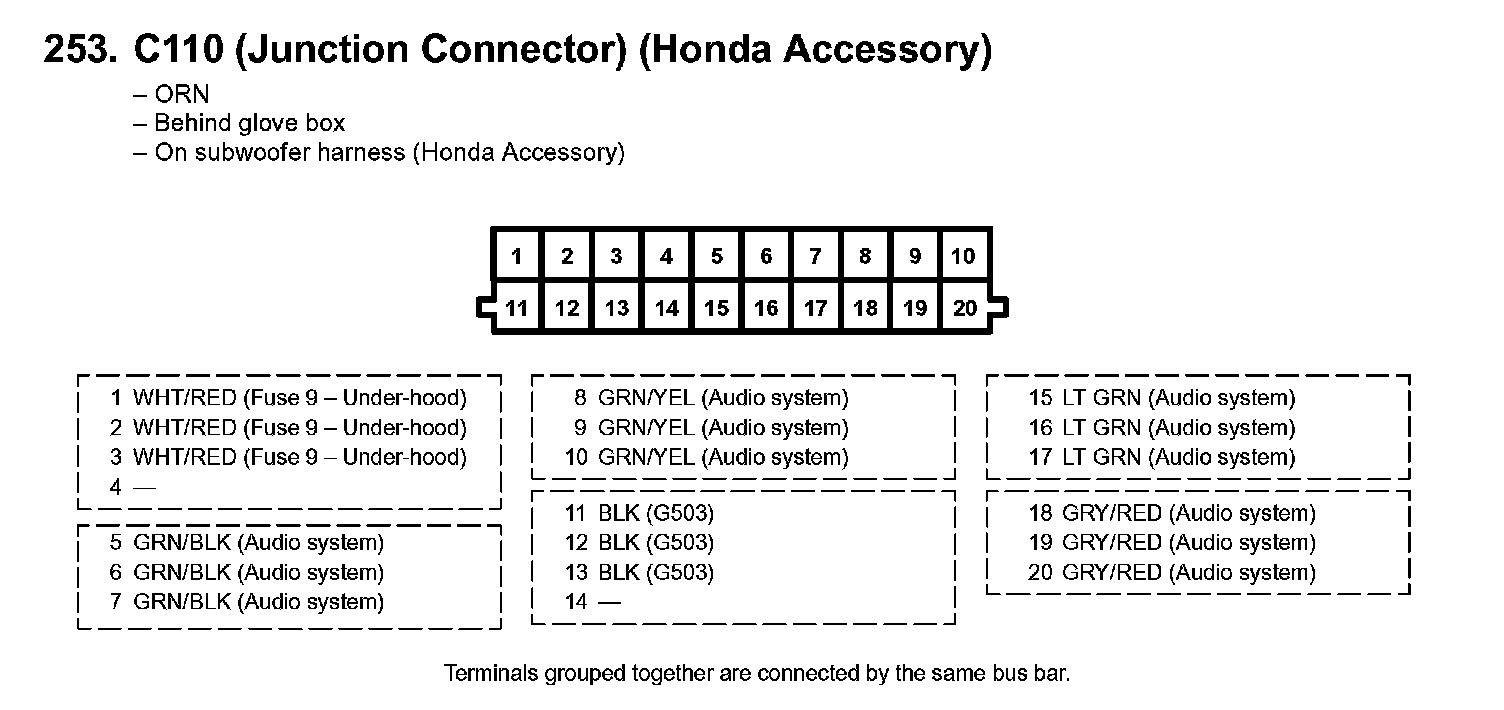

253. C110 (Junction Connector) (Honda Accessory):
