Home >> Honda >> 2005 >> CR-V 2WD L4-2.4L >> Repair and Diagnosis >> Cruise Control >> Cruise Control Switch >> Locations

Cruise Control Switch: Locations

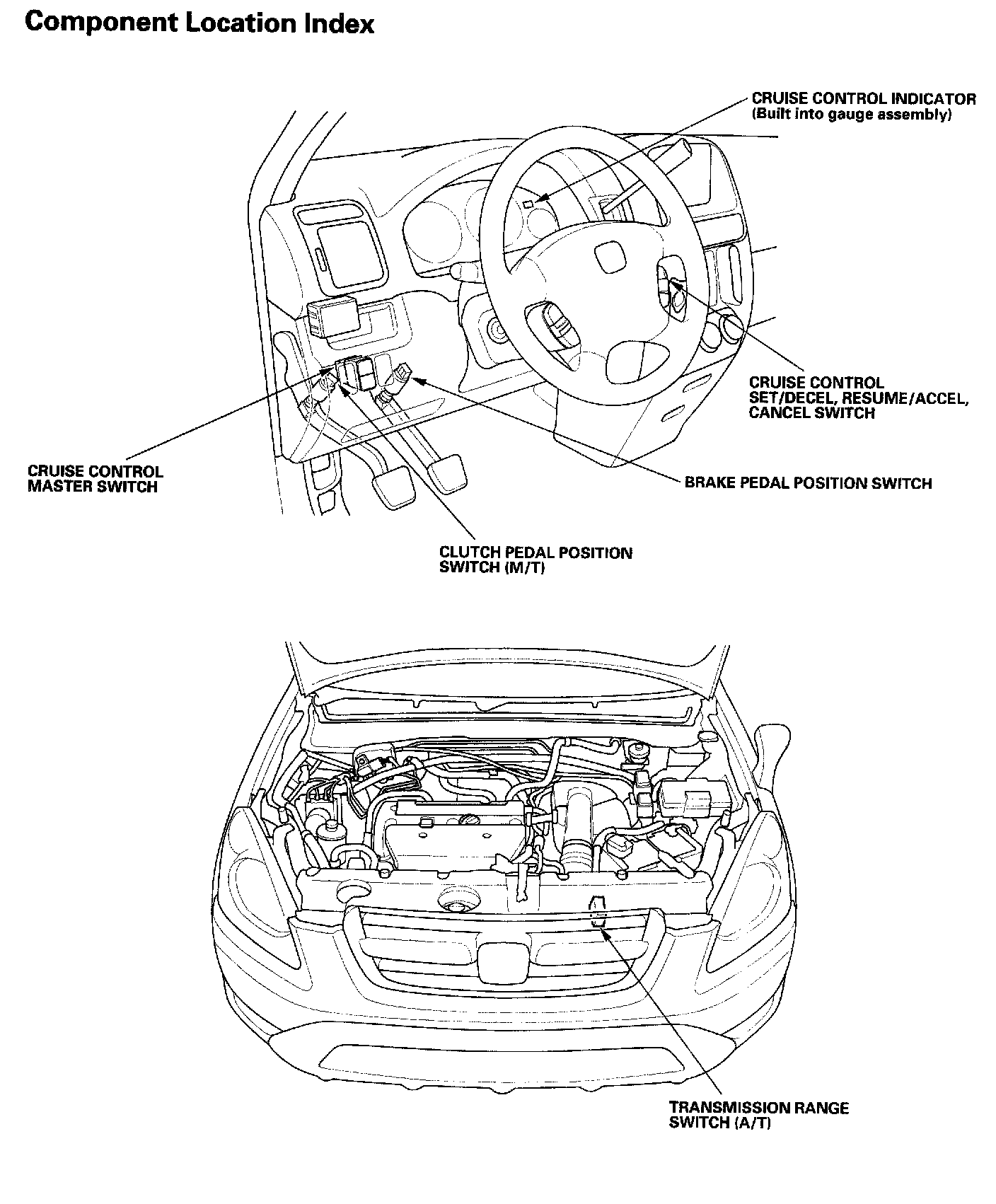

Cruise Control - Component Location Index:

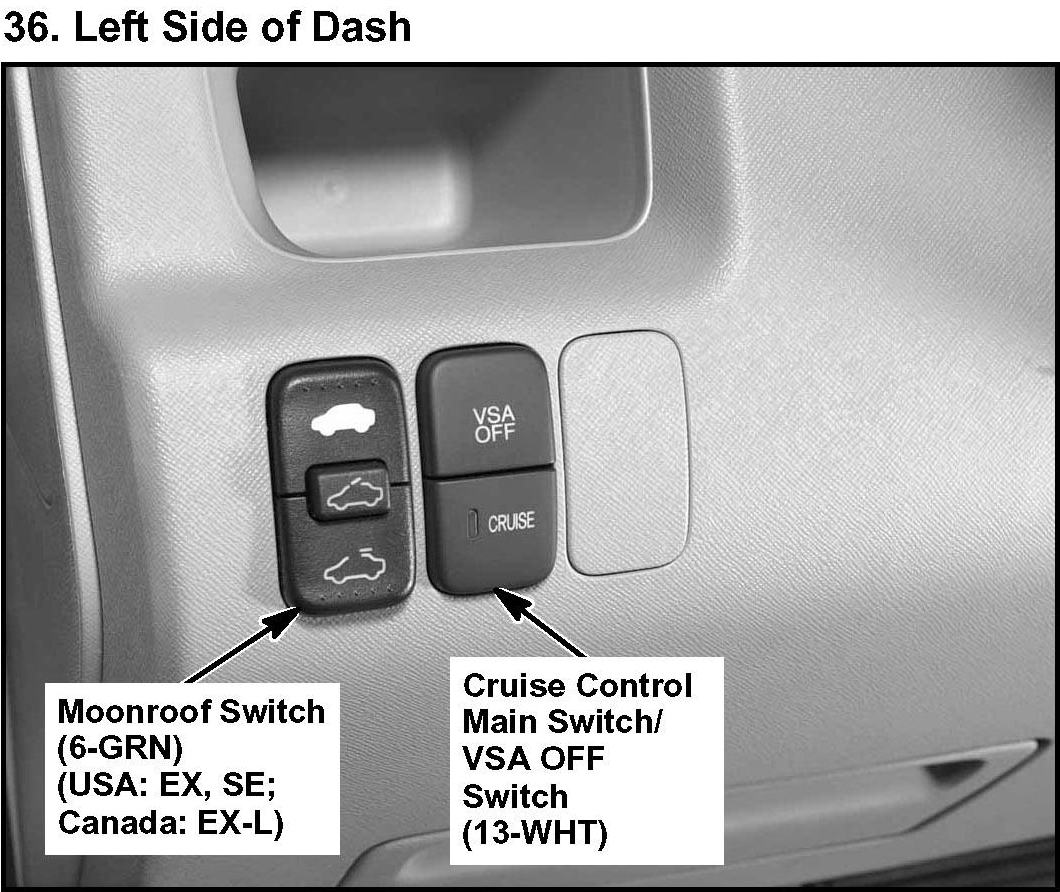

36. Left Side Of Dash:

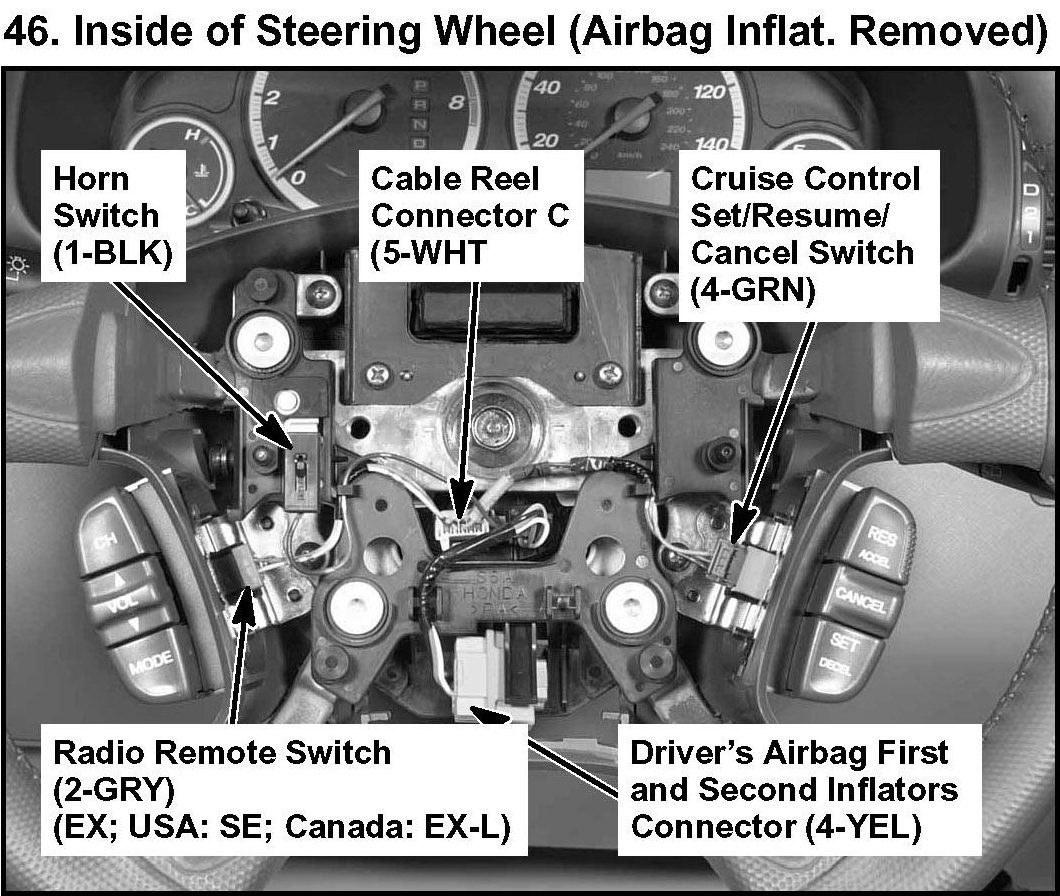

46. Inside Of Steering Wheel (Airbag Inflat. Removed):
