Ignition Coil: Service and Repair

Ignition Coil Removal/Installation




1. Remove the ignition coil cover.
2. When removing the No.6 coil, you must remove the coolant reserve tank and its heat shield.

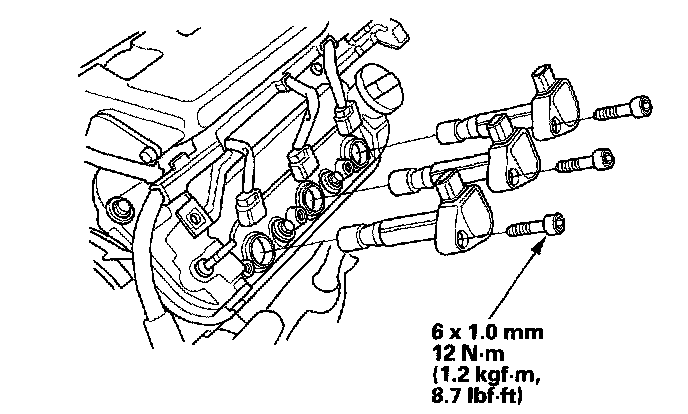

3. Remove the ignition coils.
4. Install the ignition coils in the reverse order of removal.
