Home >> Honda >> 2005 >> Accord V6-3.0L >> Repair and Diagnosis >> Locations >> Harness Locations >> Throttle Actuator Control Module Sub-harness

Throttle Actuator Control Module Sub-harness

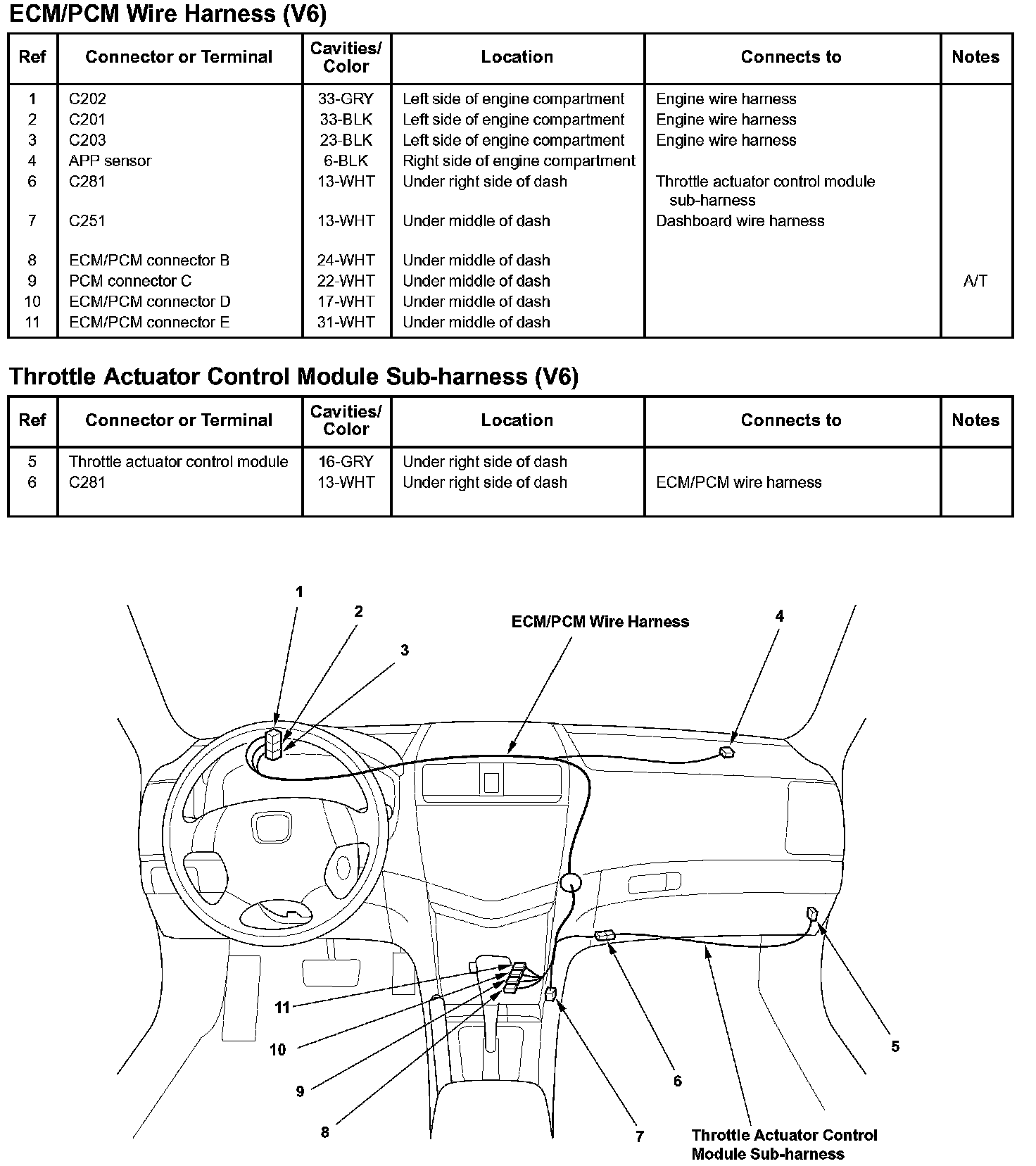

ECM/PCM Wire Harness/ Throttle Actuator Control Module Sub-harness:
