Electrical Diagrams

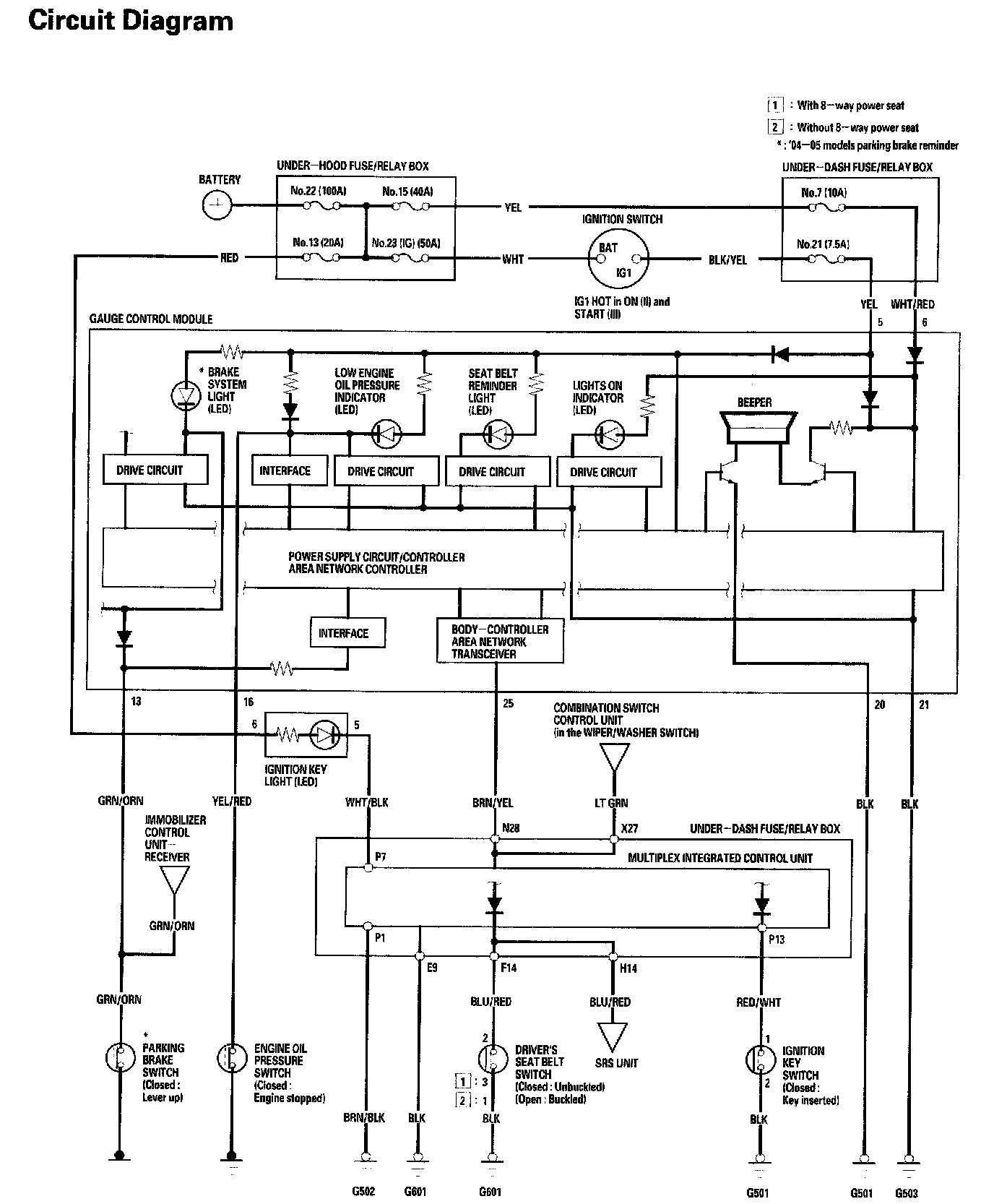

Reminder Systems, Key Light Timer, and Engine Oil Pressure Indicator Systems - Circuit Diagram:
