Information Bus: Locations

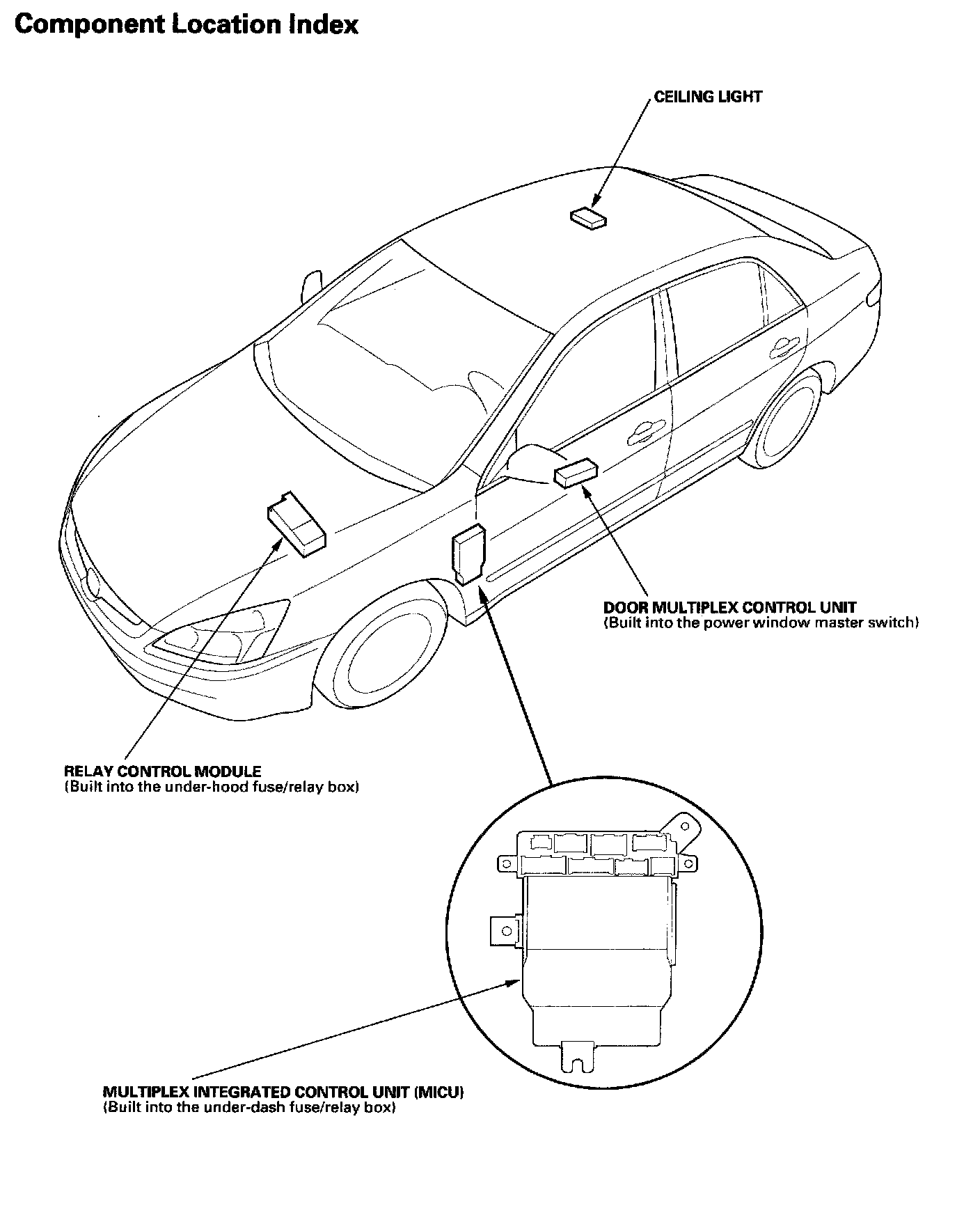

Multiplex Integrated Control System (MICS) - Component Location Index:



Multiplex Integrated Control System (MICS) - Component Location Index:

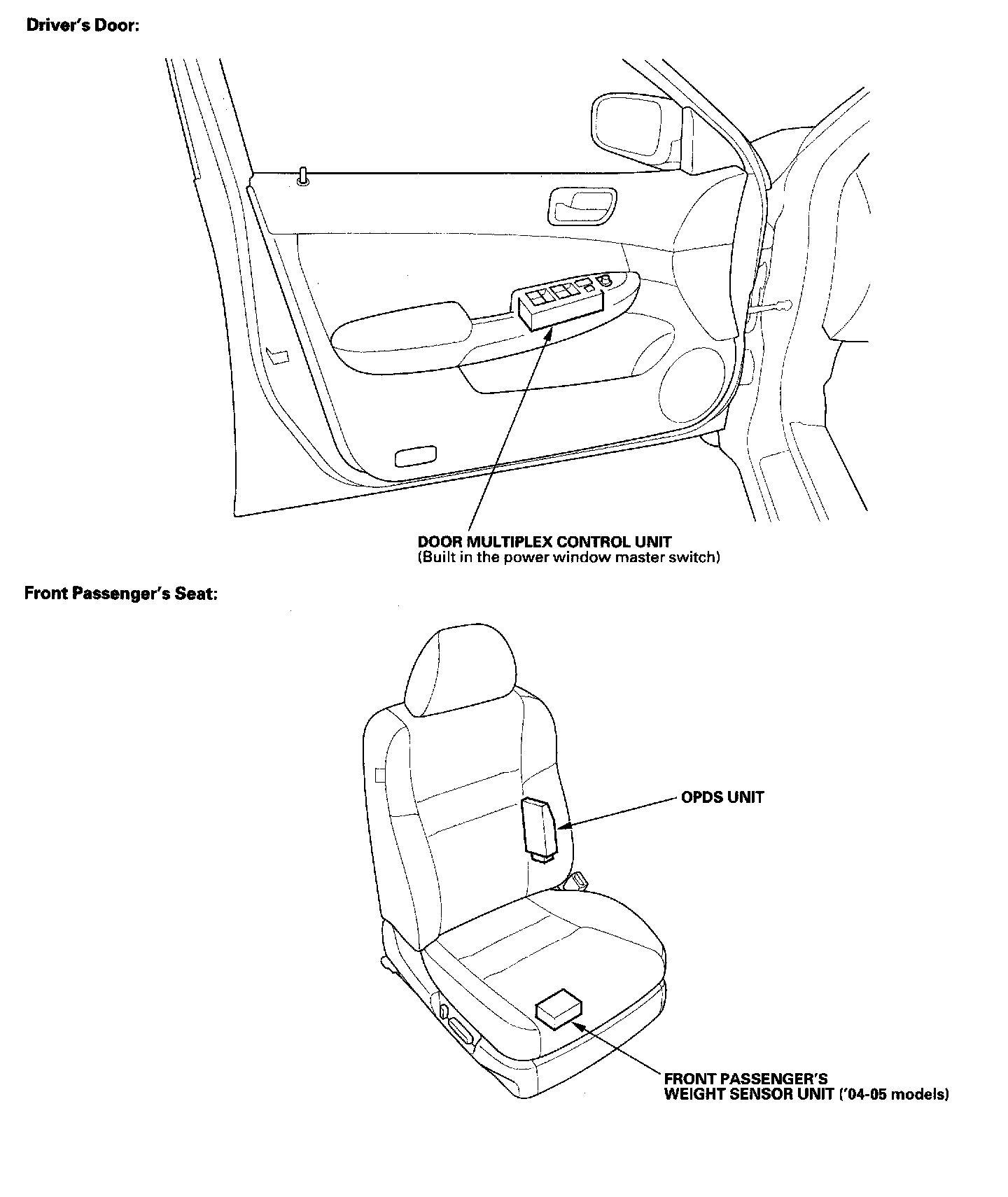

Relay And Control Unit Locations - Door And Seat:

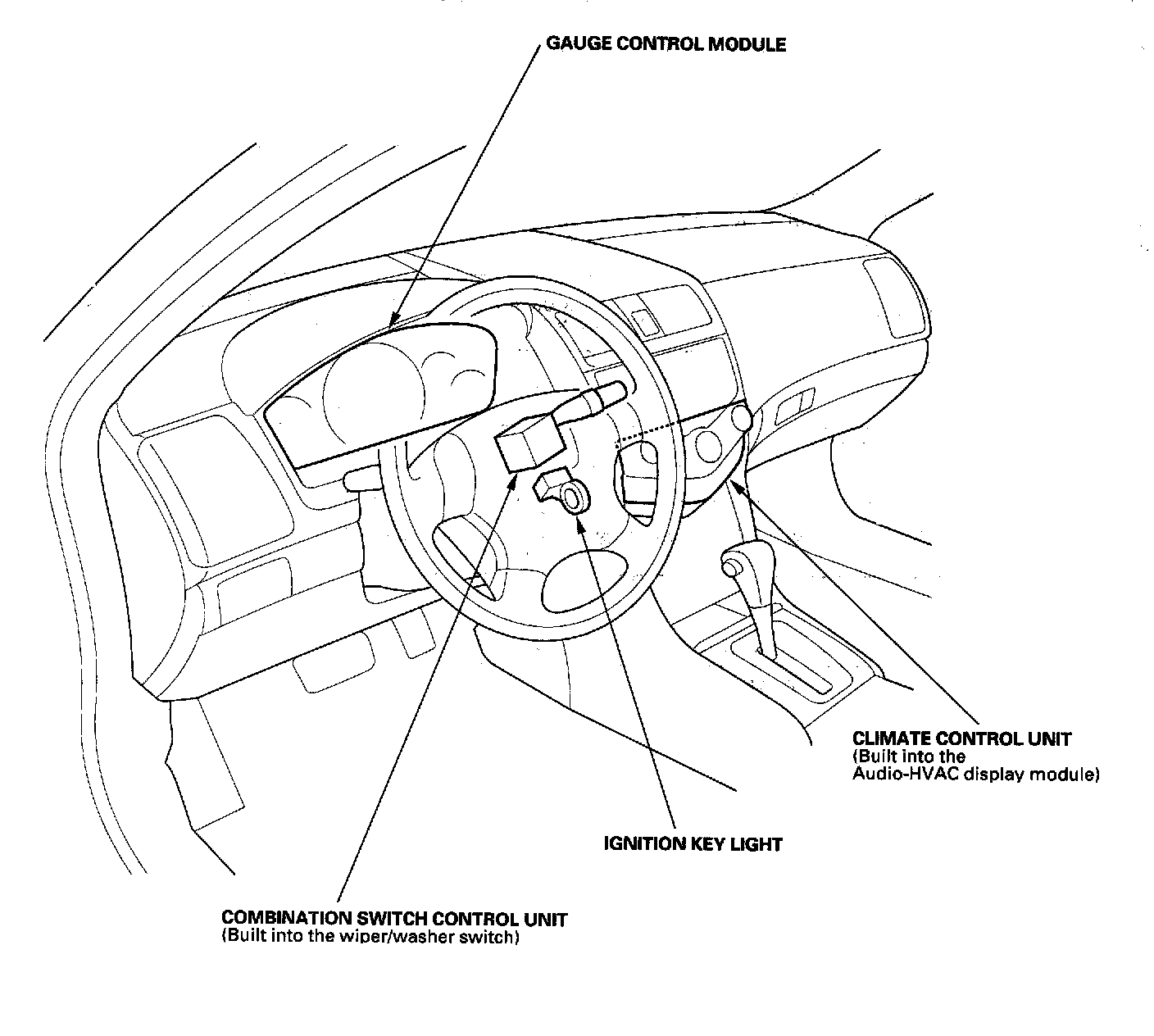

Relay And Control Unit Locations - Dashboard:
