Under-Dash Fuse/Relay Box
Under-Dash Fuse/Relay Box

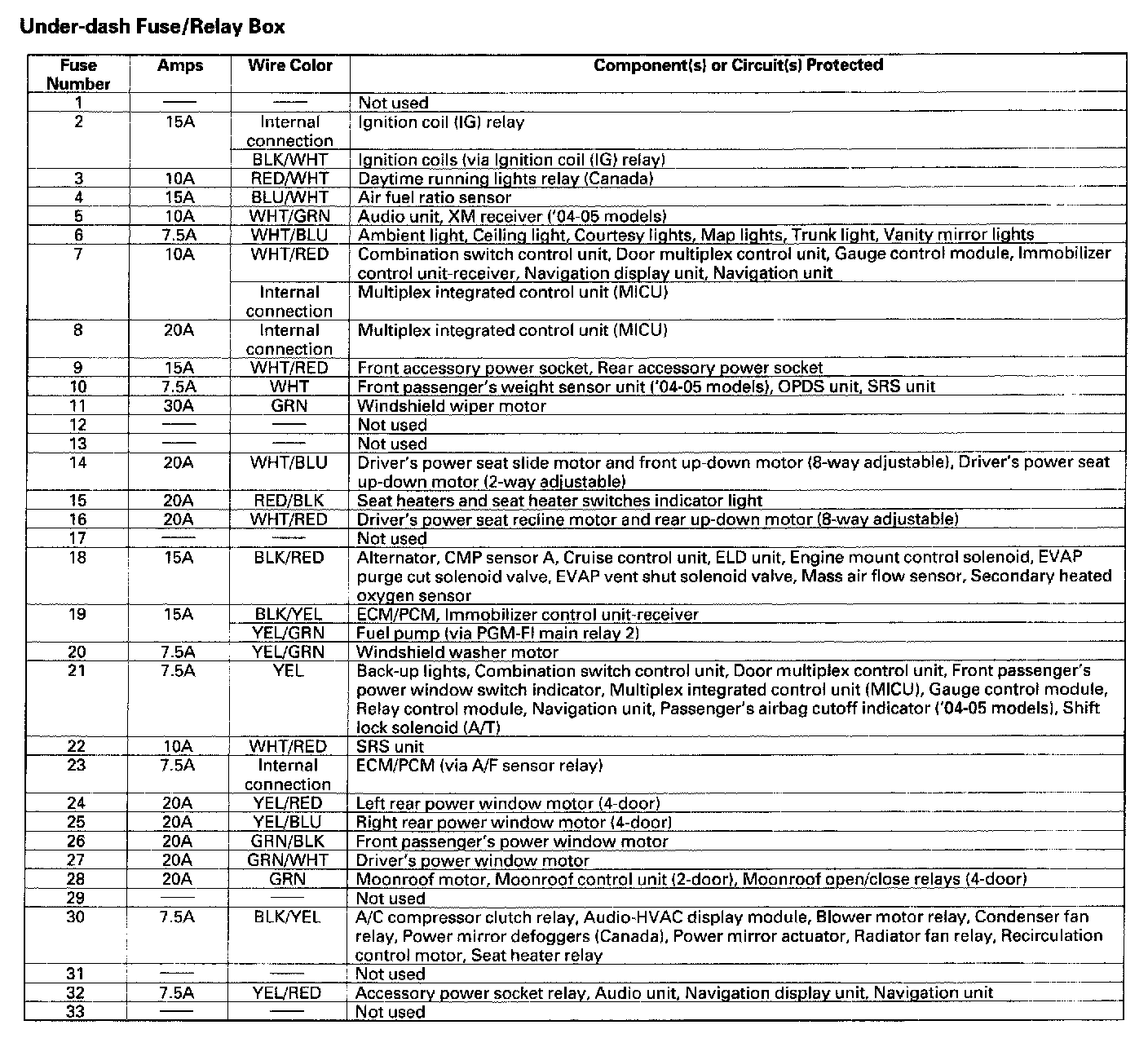

Under-dash Fuse/Relay Box:

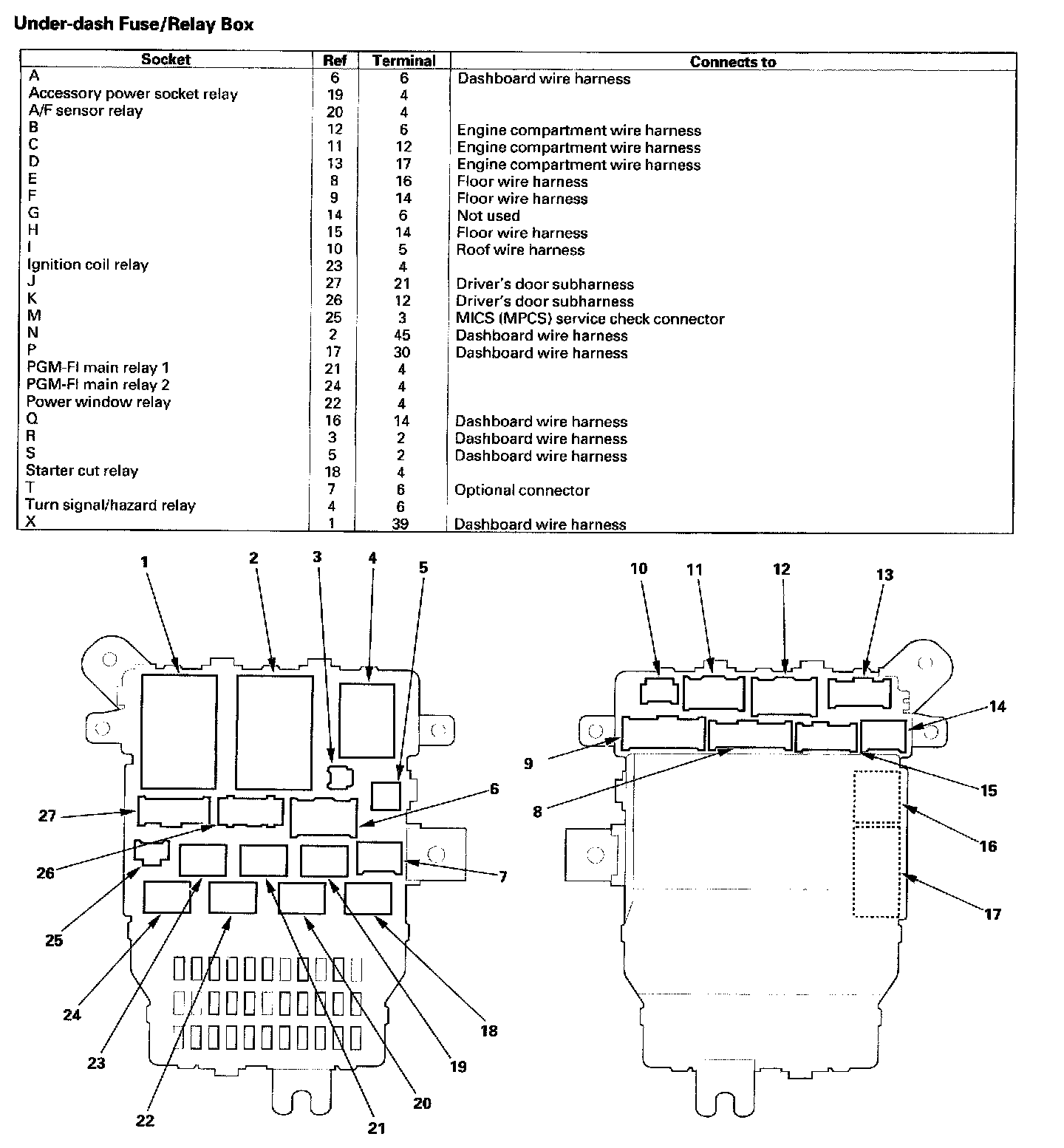

Under-dash Fuse/Relay Box:
Under-dash Fuse/Relay Box:

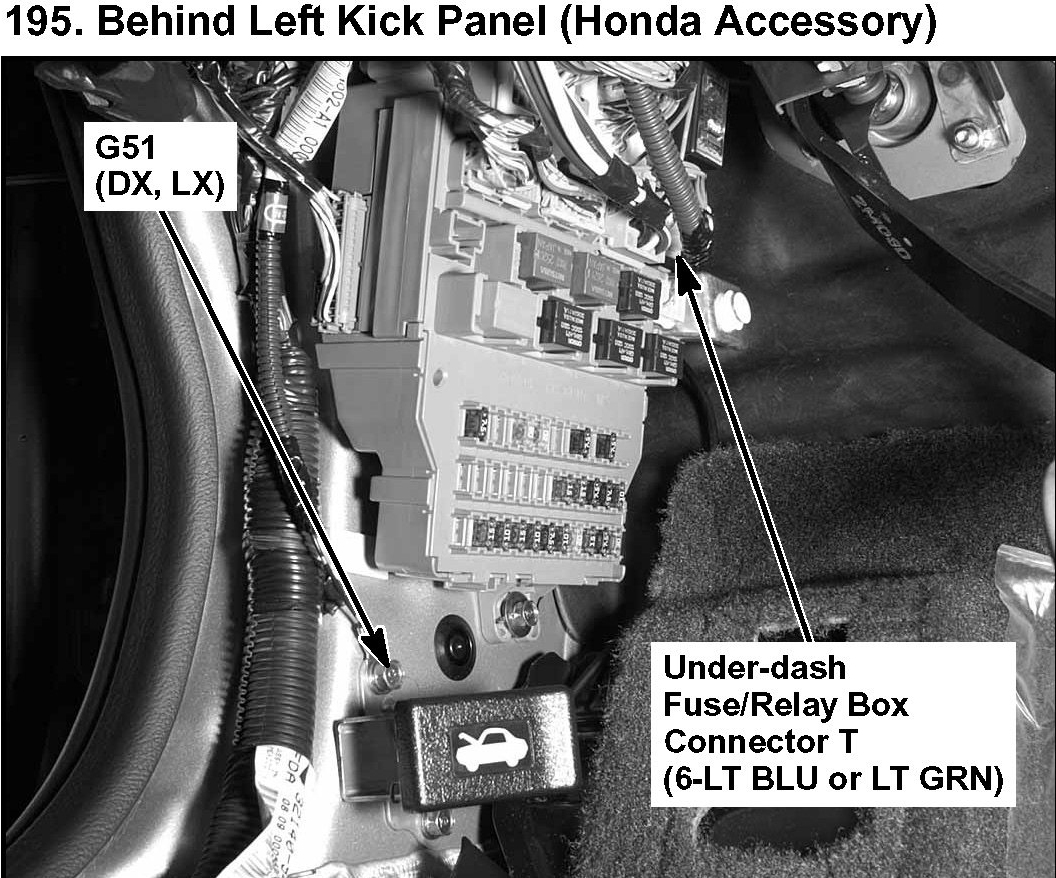

195. Behind Left Kick Panel (Honda Accessory):
