Steering Control Module: Testing and Inspection





EPS Control Unit Inputs and Outputs for Connector A (2P)

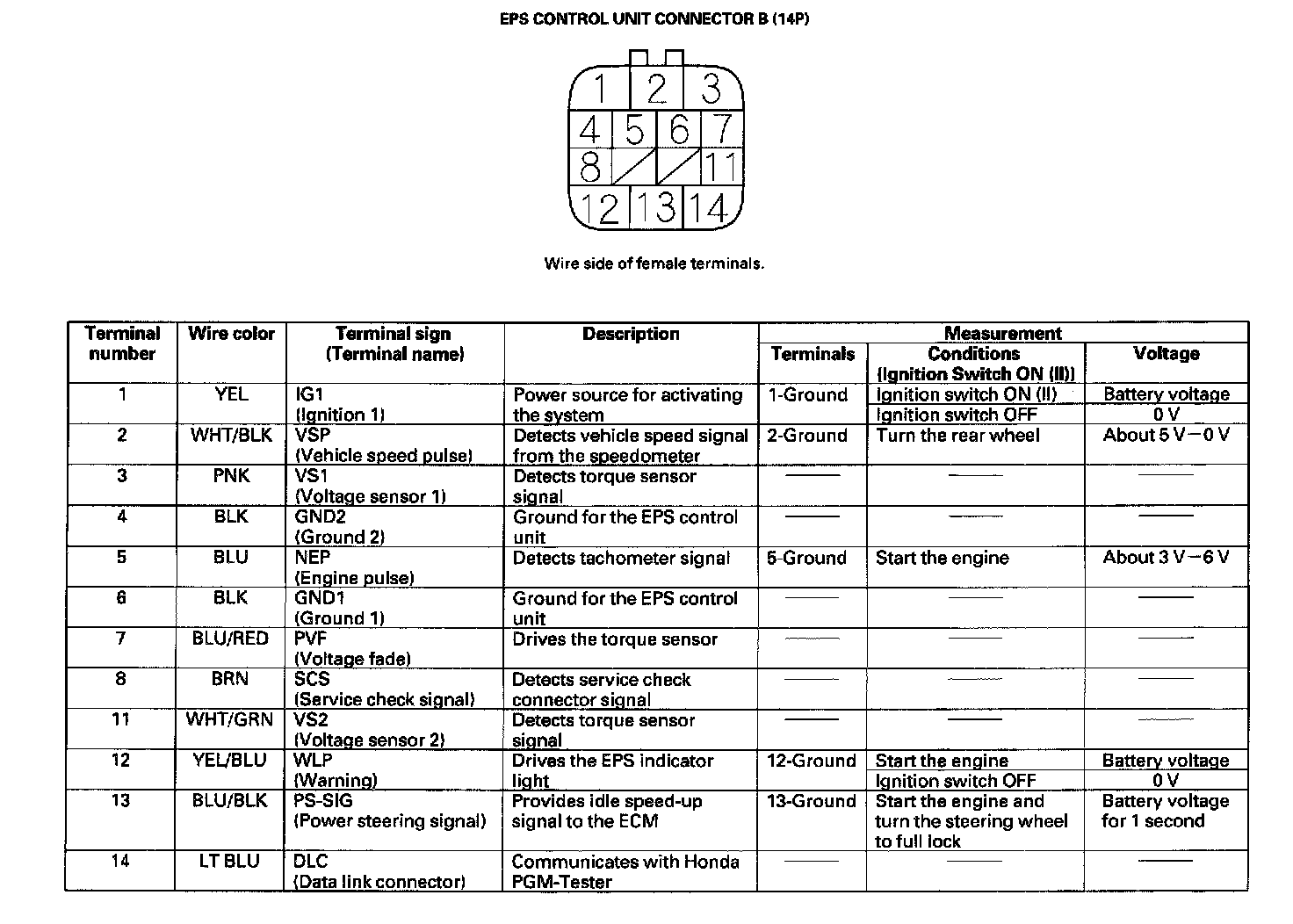

EPS Control Unit Inputs and Outputs for Connector B (14P)





EPS Control Unit Inputs and Outputs for Connector C (2P)
