Home >> Honda >> 2004 >> S2000 L4-2.2L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Brakes and Traction Control >> Electronic Brake Control Module >> Testing and Inspection

Electronic Brake Control Module: Testing and Inspection

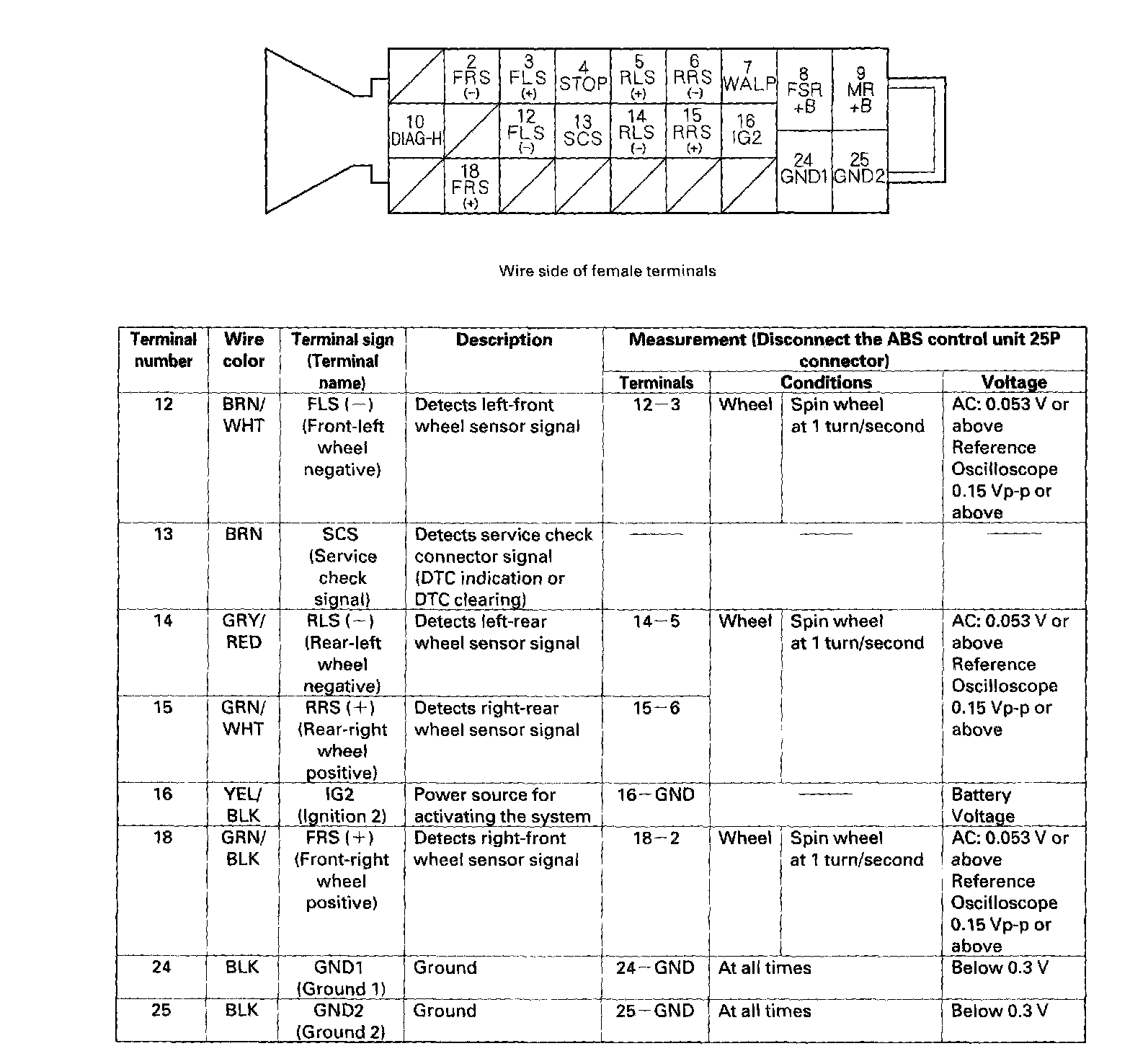

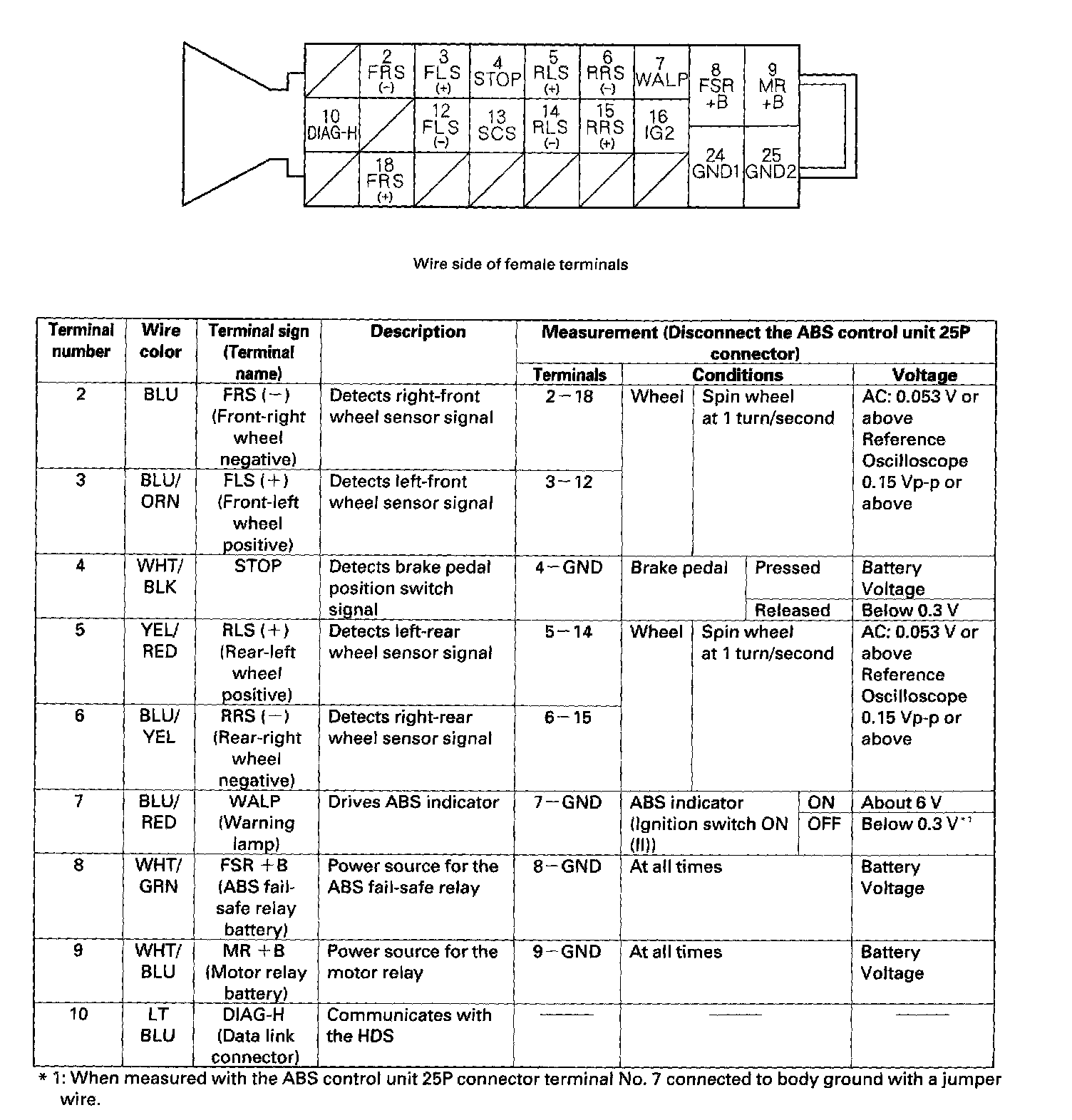

ABS Control Unit Inputs and Outputs for 25P Connector
