Locations
>>
Harness Locations
>>
MPI Module Fan Control Resistor Jumper, High Speed
MPI Module Fan Control Resistor Jumper, High Speed

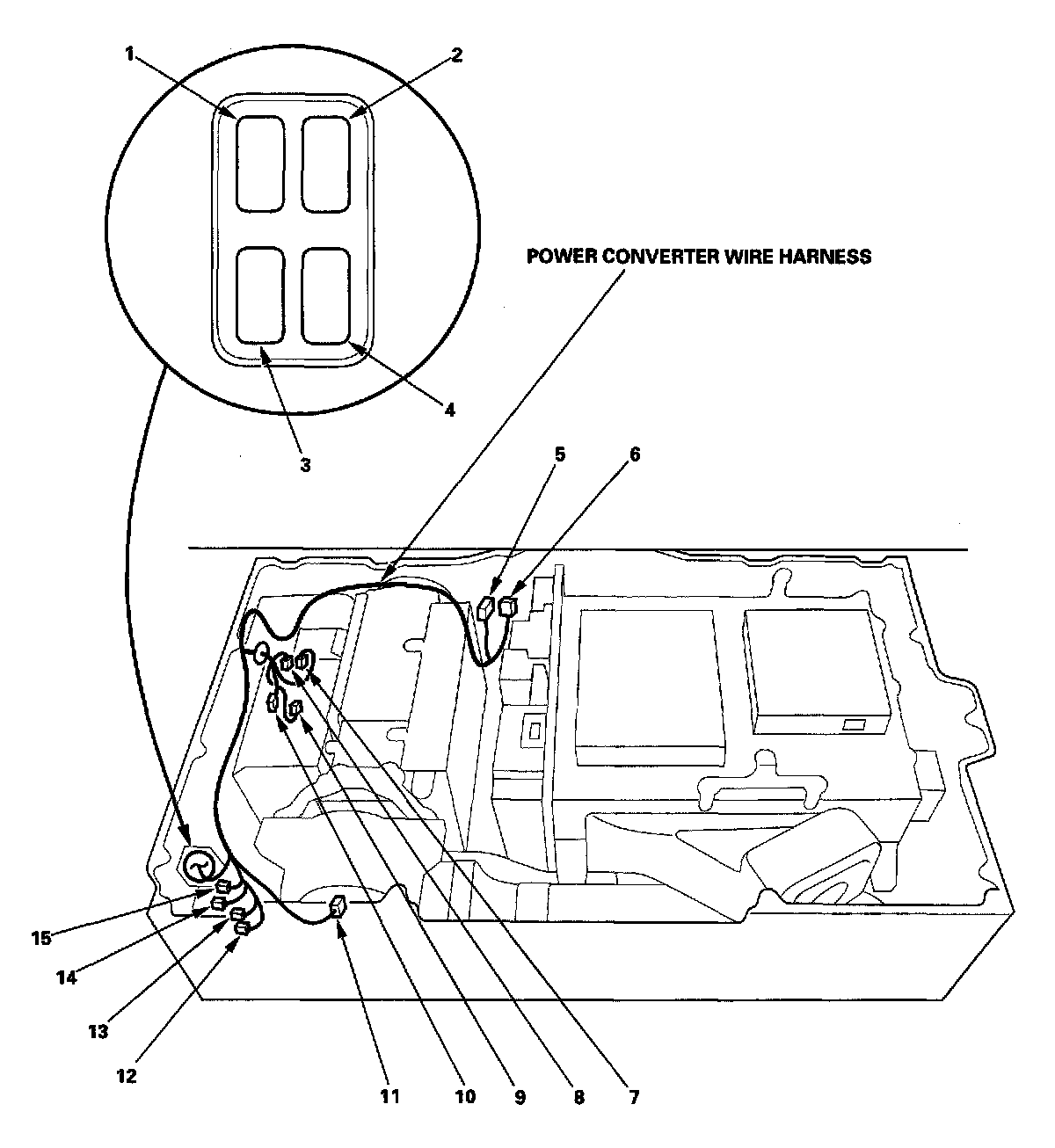

Harness Location View:

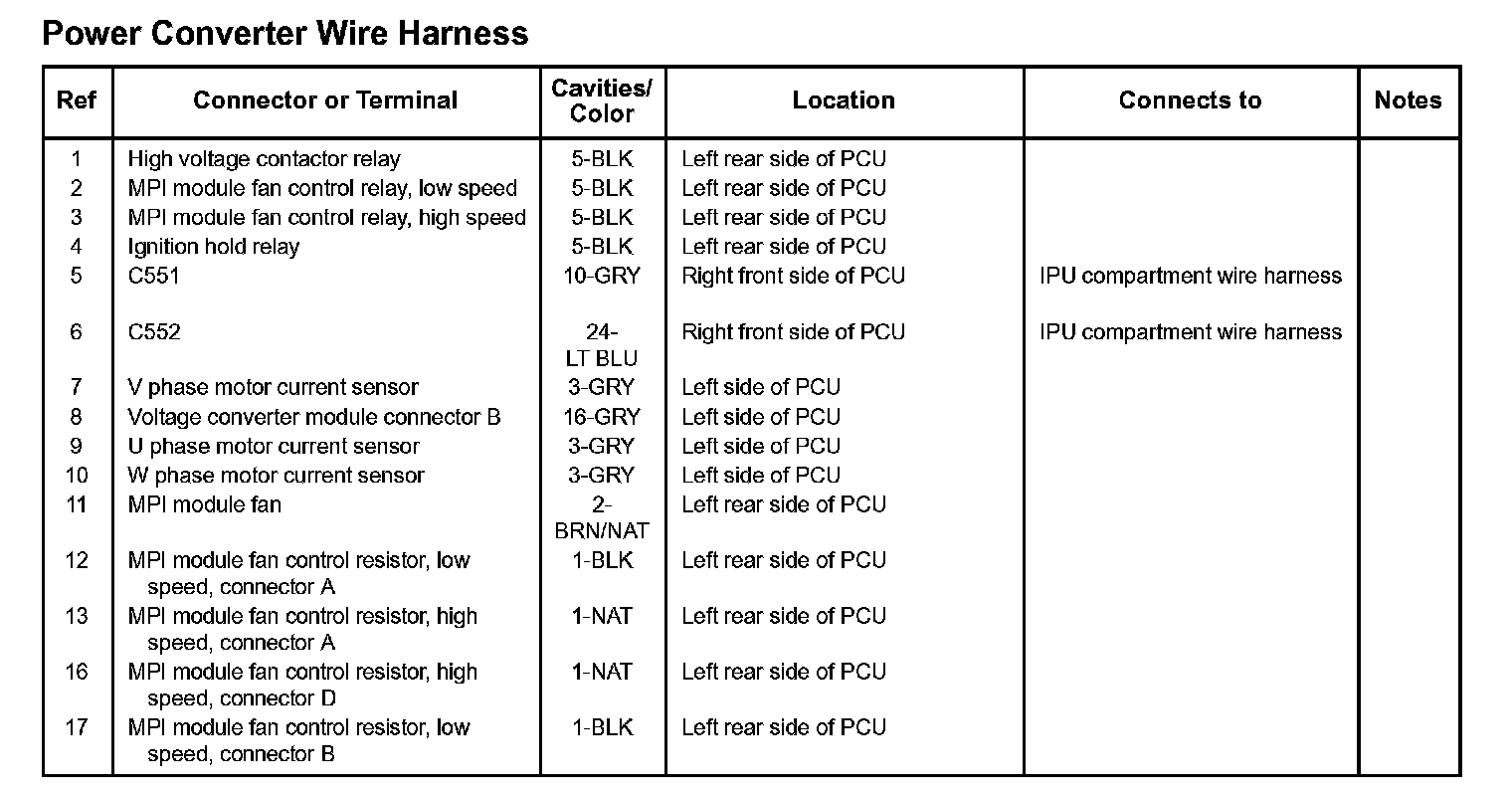

Power Converter Wire Harness:

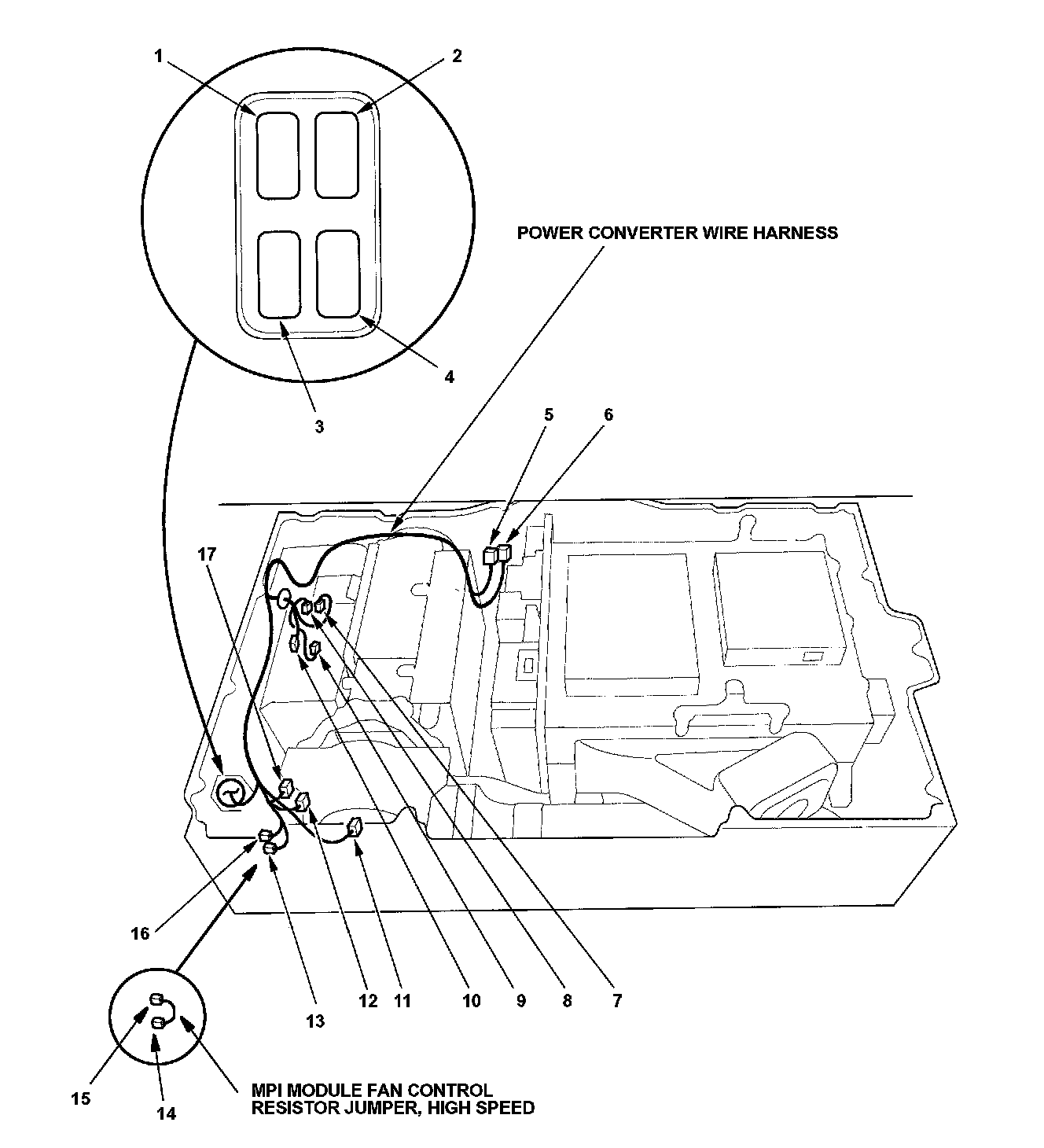

Harness Location View:

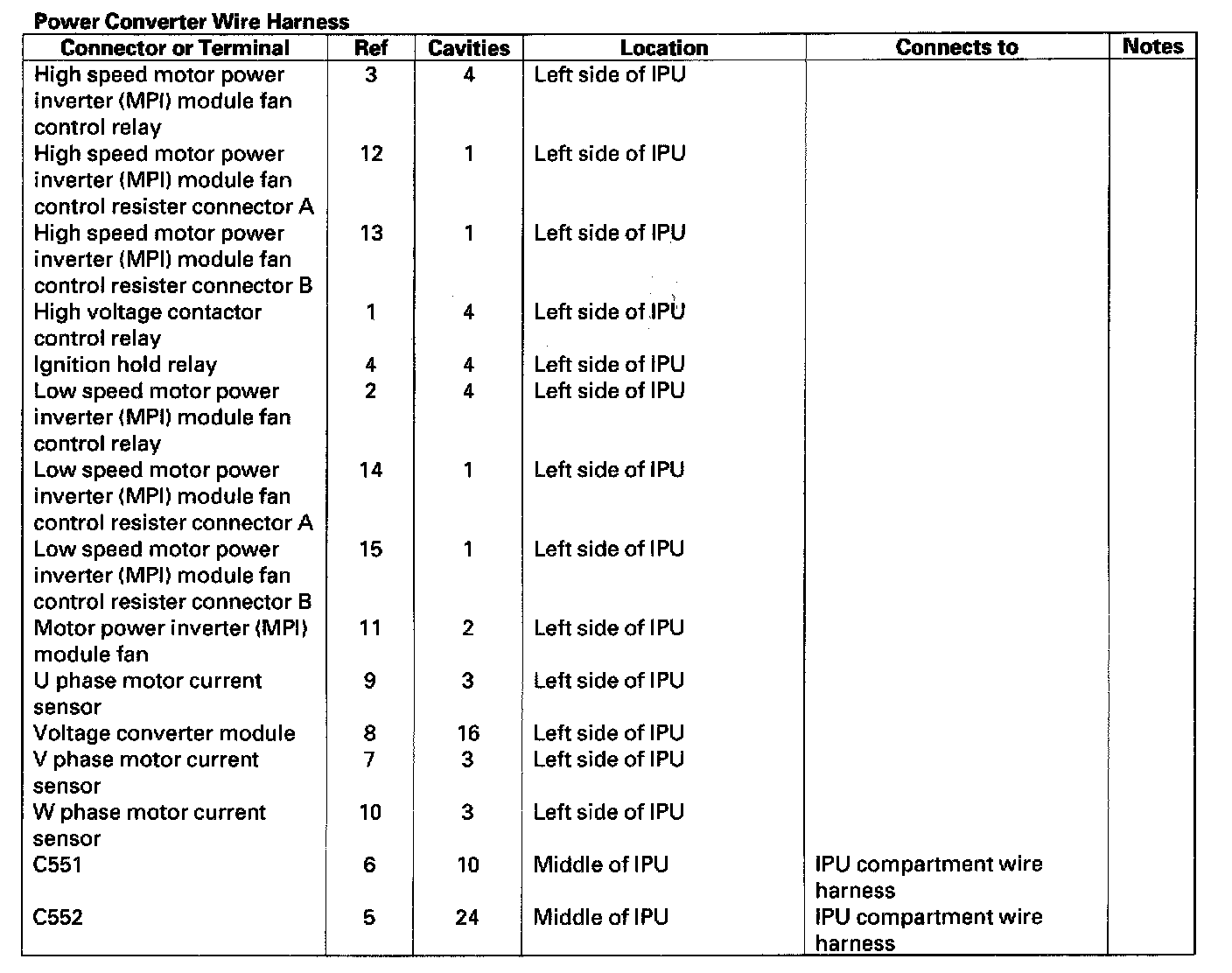

Power Converter Wire Harness:
