Home >> Honda >> 2004 >> Insight L3-1.0L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Transmission Mode Switch, CVT

Transmission Mode Switch, CVT

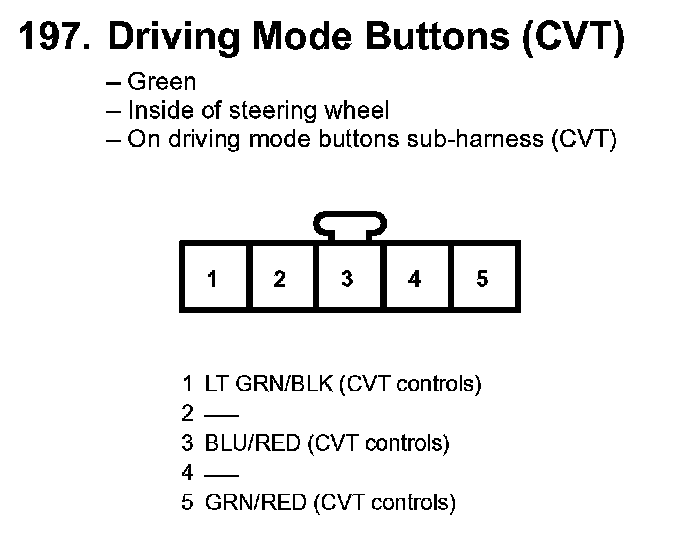

197. Driving Mode Buttons (CVT):
