Ignition Relay
Ignition Relay

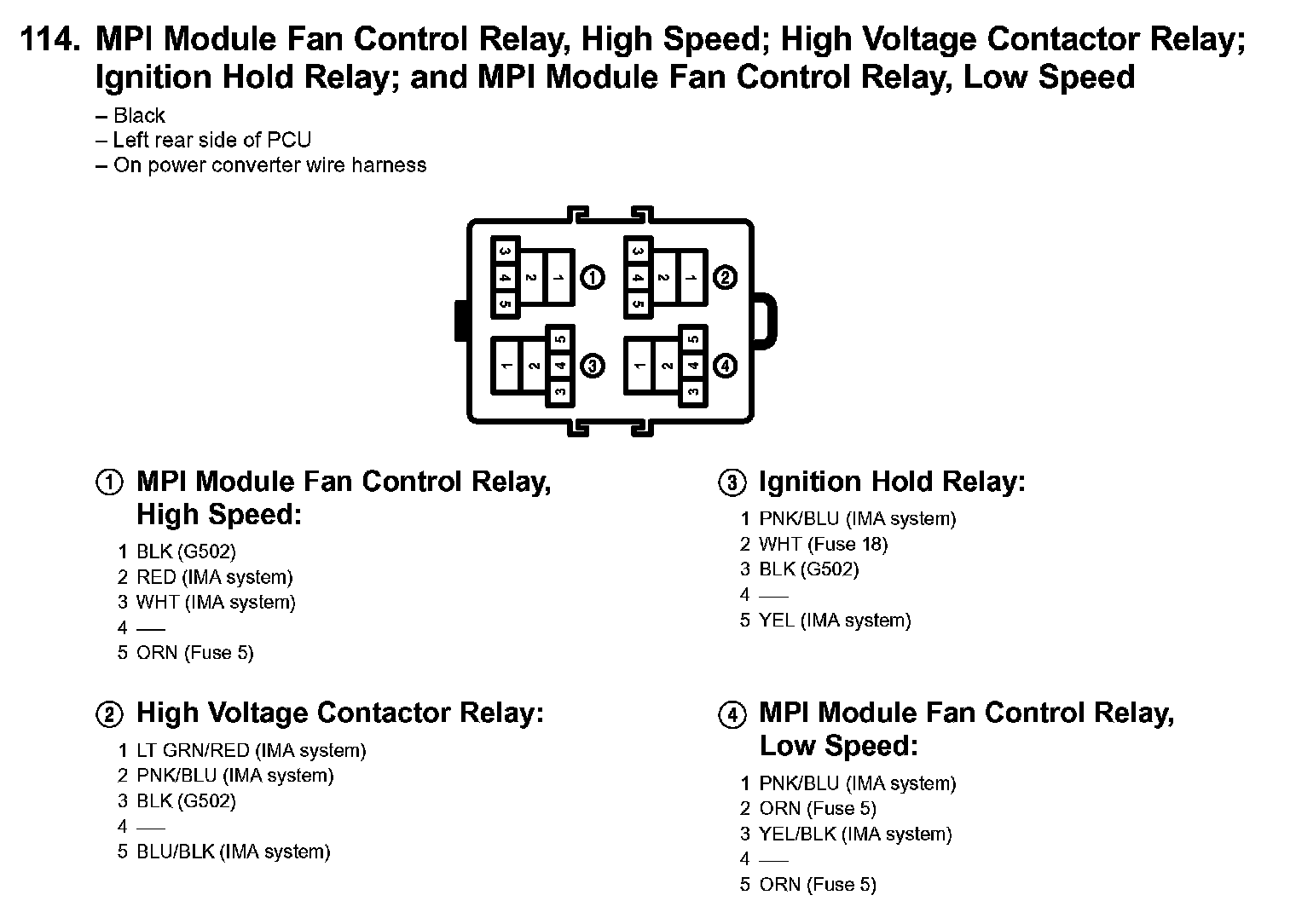

114. MPI Module Fan Control Relay, High Speed; High Voltage Contactor Relay; Ignition Hold Relay; And MPI Module Fan Control Relay, Low Speed:
