Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>
Component Locations
>>
Under-Dash Fuse/Relay Box
Under-Dash Fuse/Relay Box

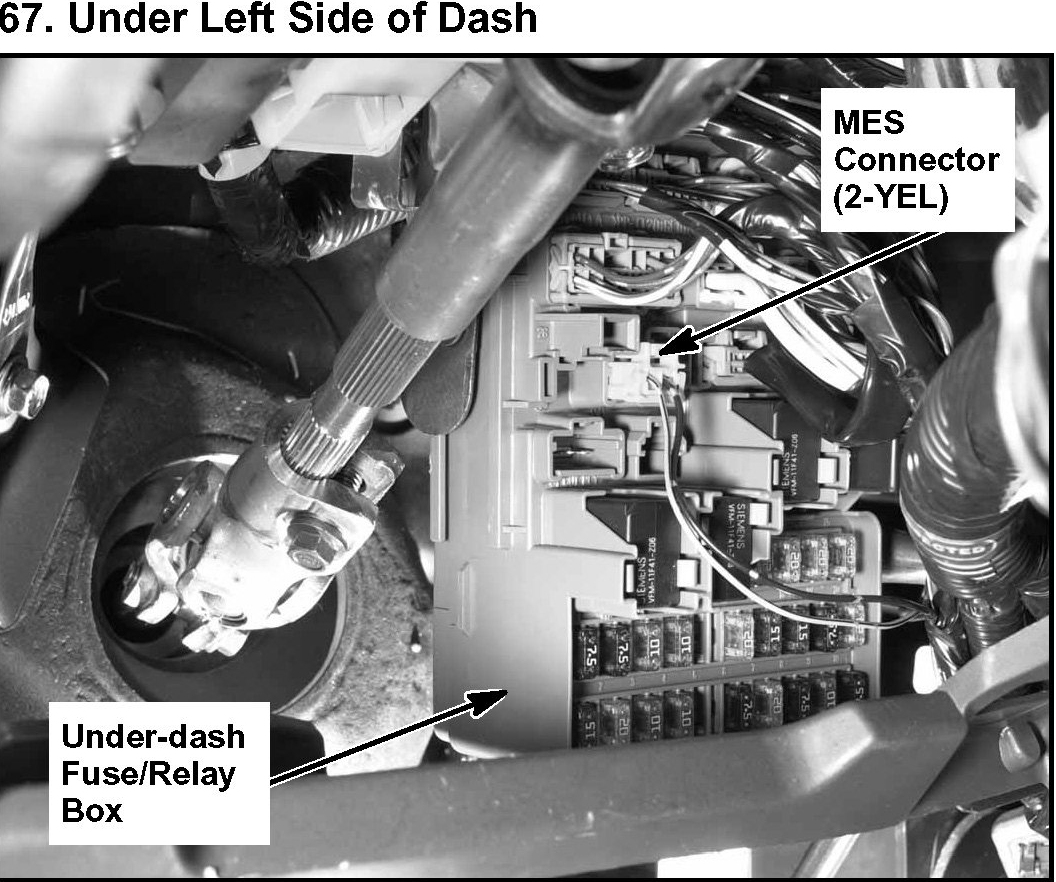

67. Under Left Side Of Dash:

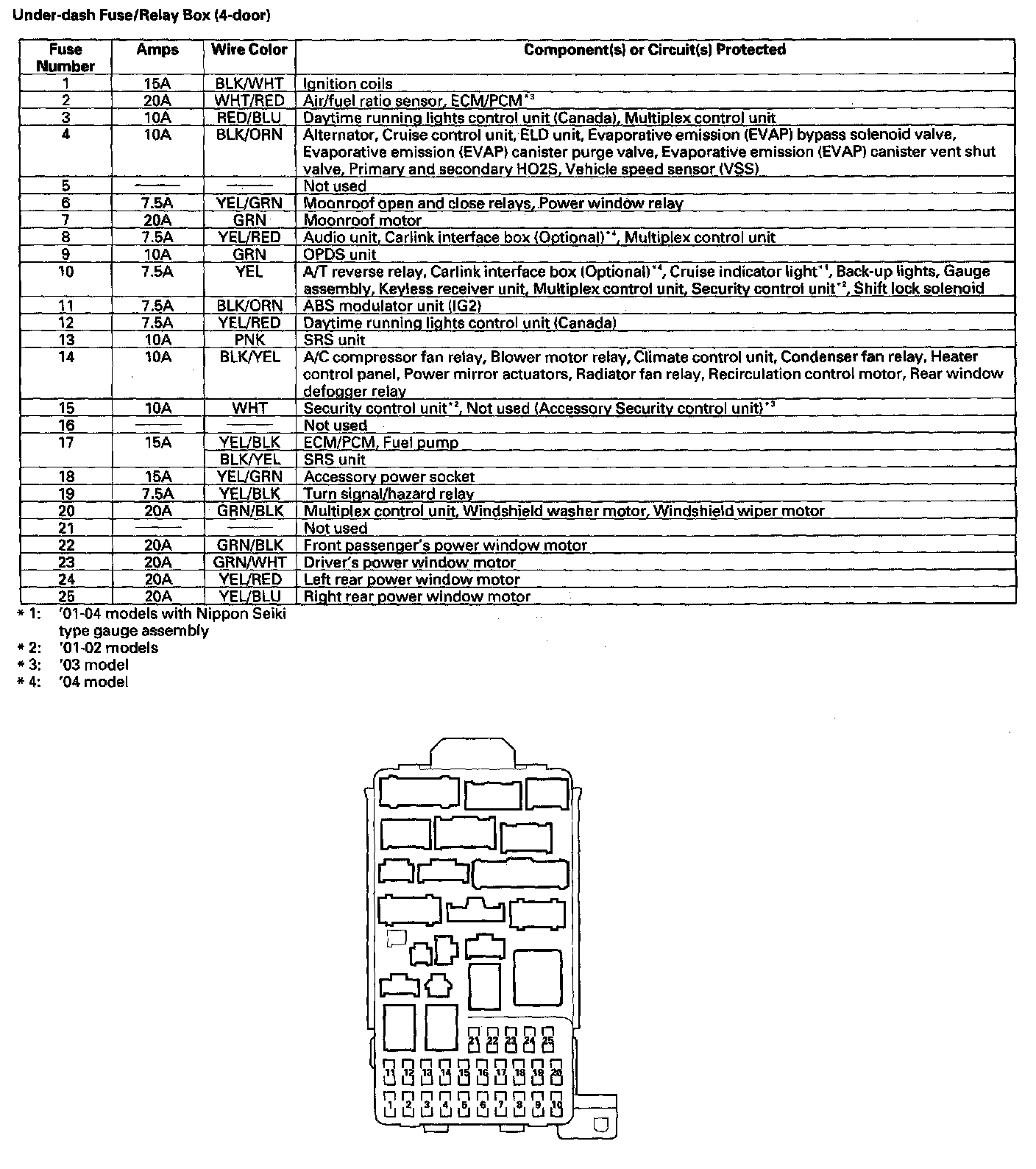

Under-dash Fuse/Relay Box (4-door):

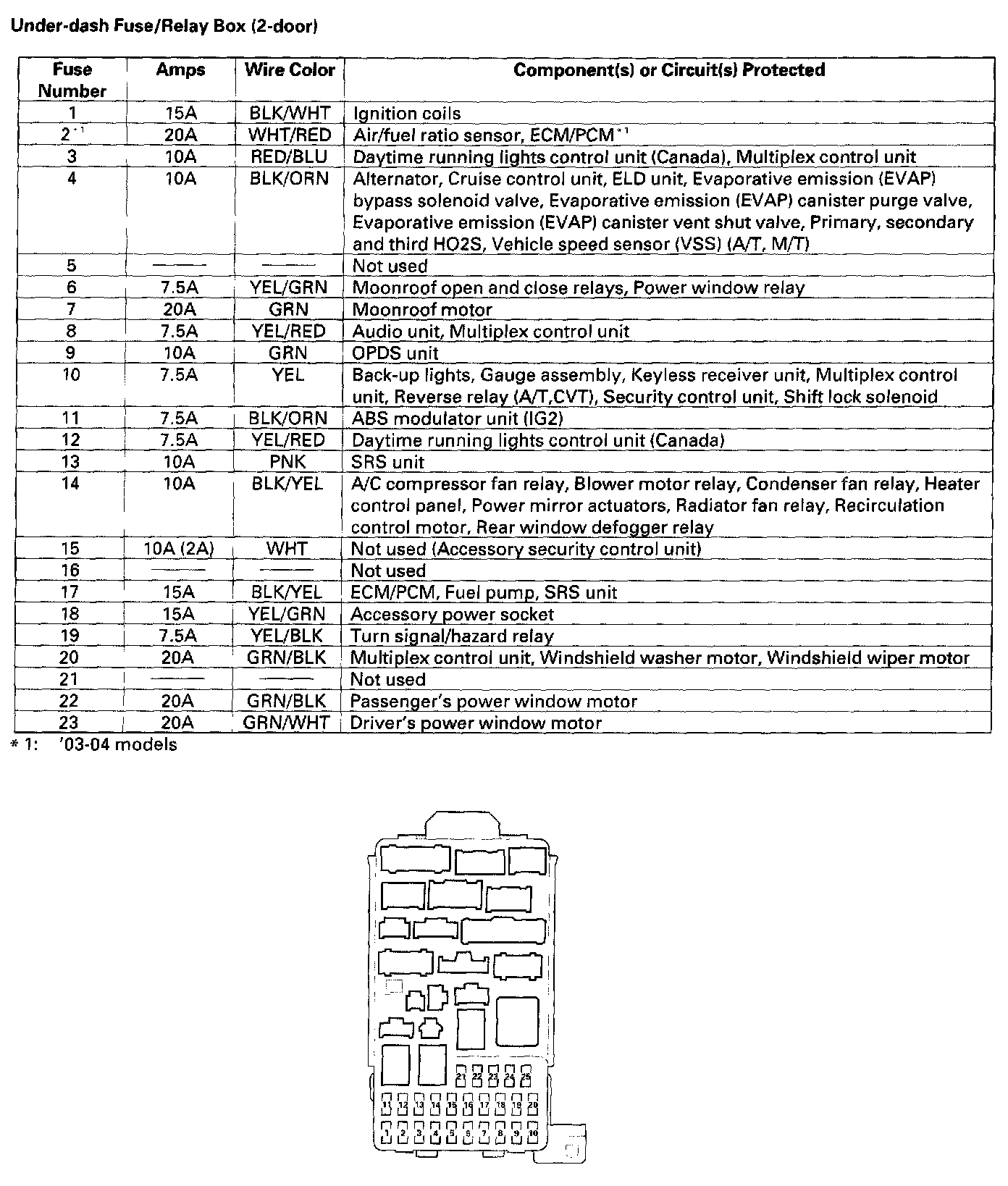

Under-dash Fuse/Relay Box (2-door):
