LEMON Manuals
: Even more car manuals for everyone
Home
>>
Honda
>>
2004
>>
CR-V 4WD L4-2.4L
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Body and Frame
>>
Frame
Frame

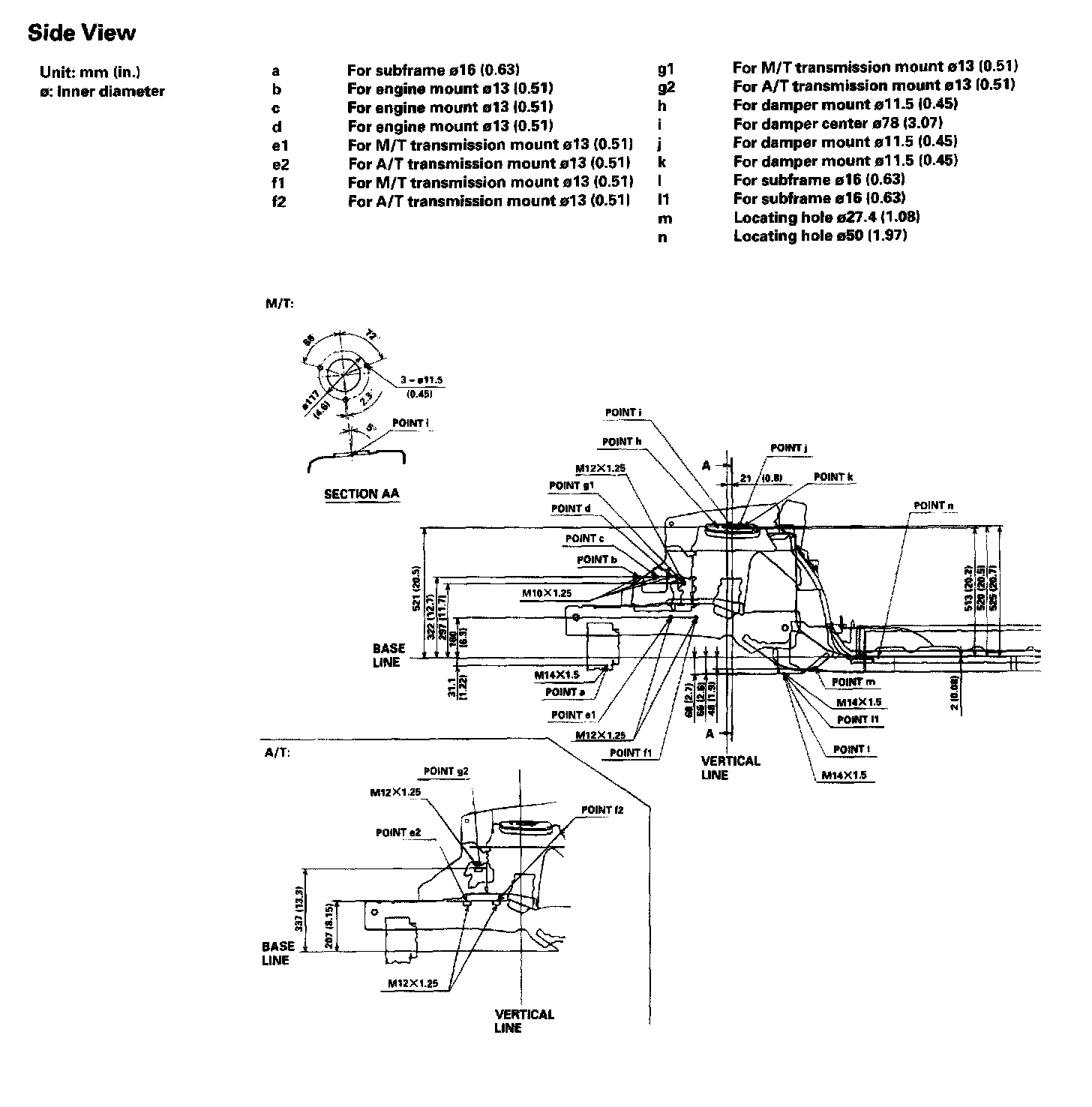

Frame Repair Chart Part 1:

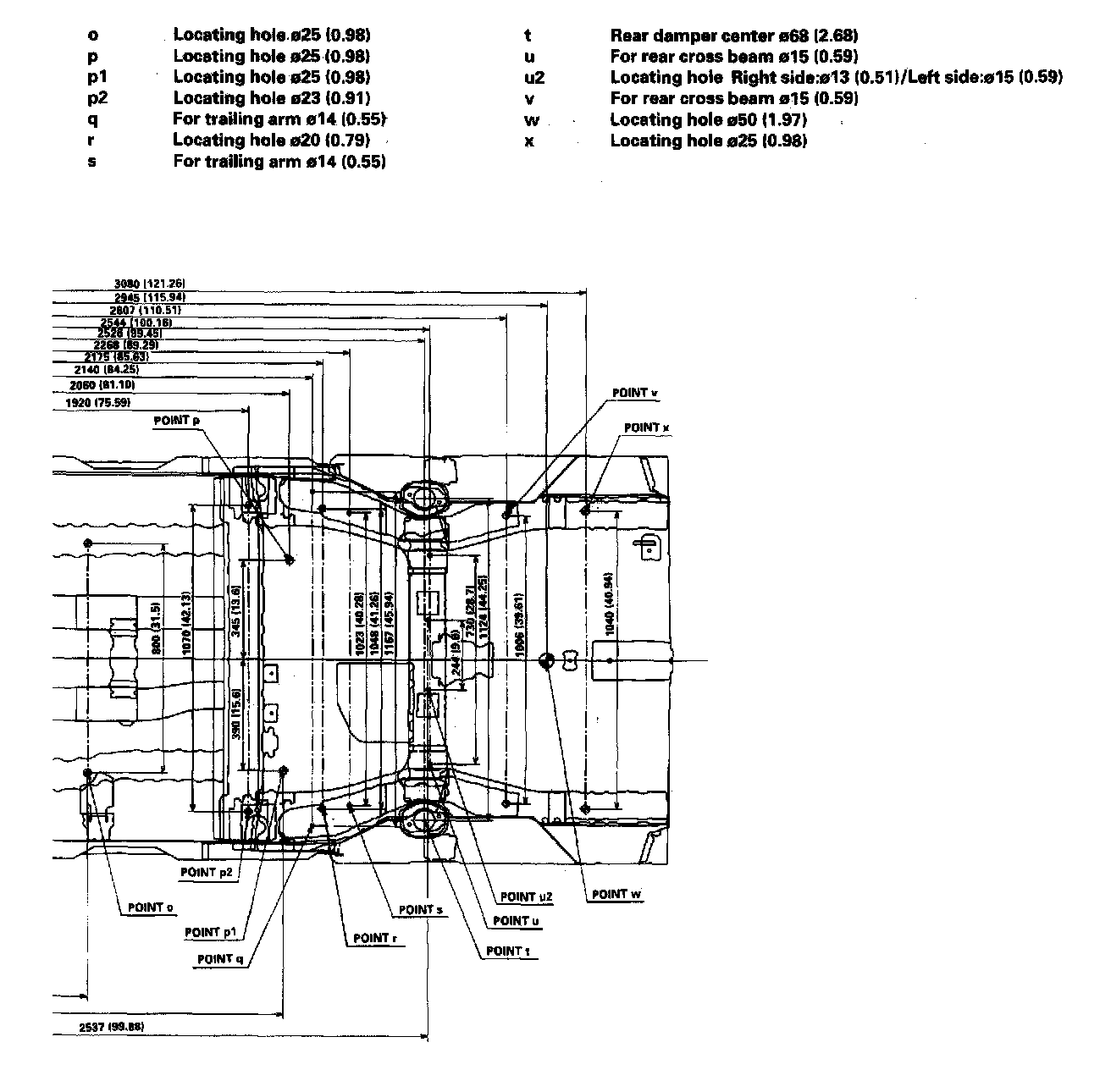

Frame Repair Chart Part 2:

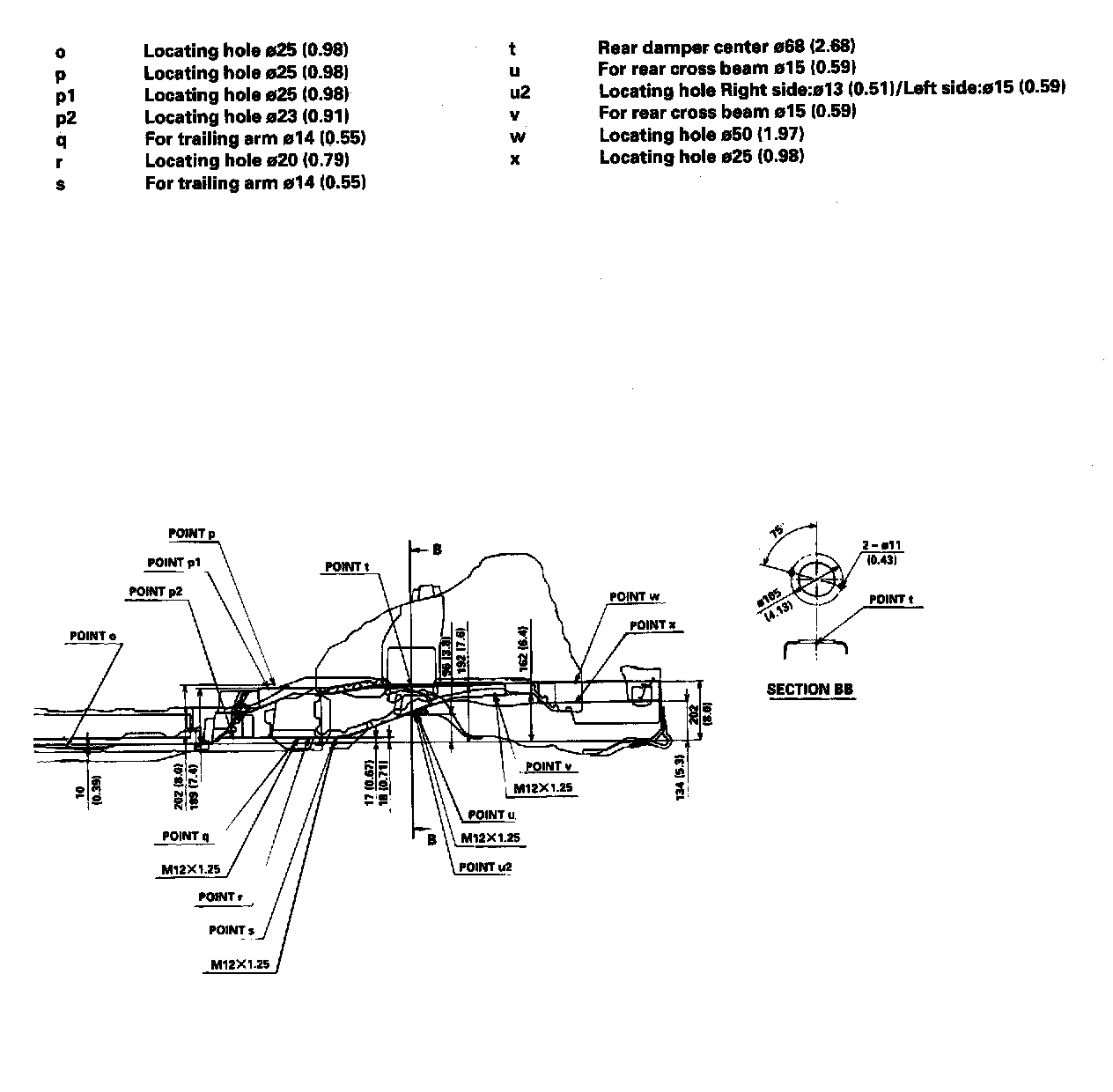

Frame Repair Chart Part 3:

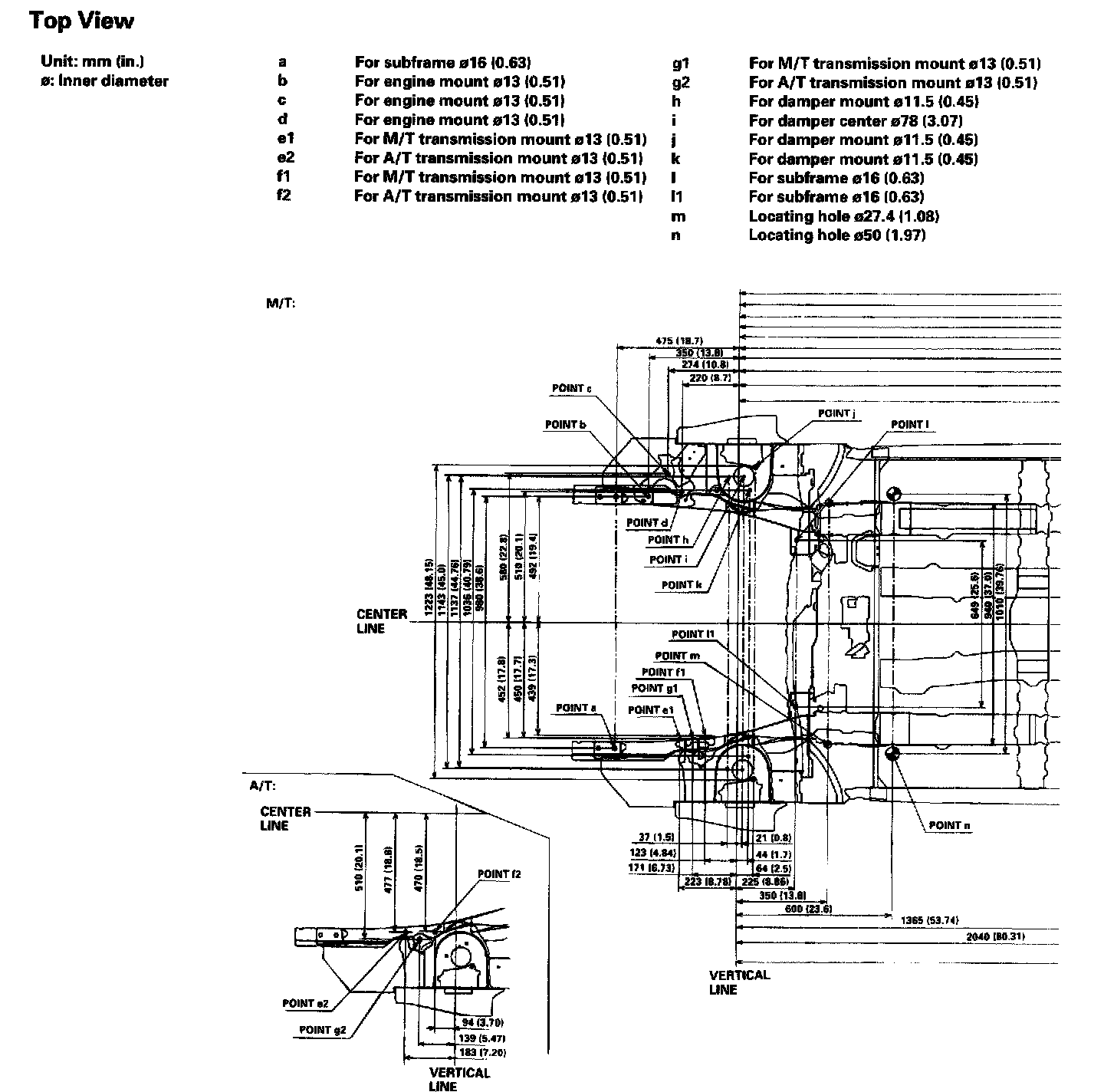

Frame Repair Chart Part4:
