LEMON Manuals: Even more car manuals for everyone
Home >> Honda >> 2004 >> CR-V 4WD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Relay Box

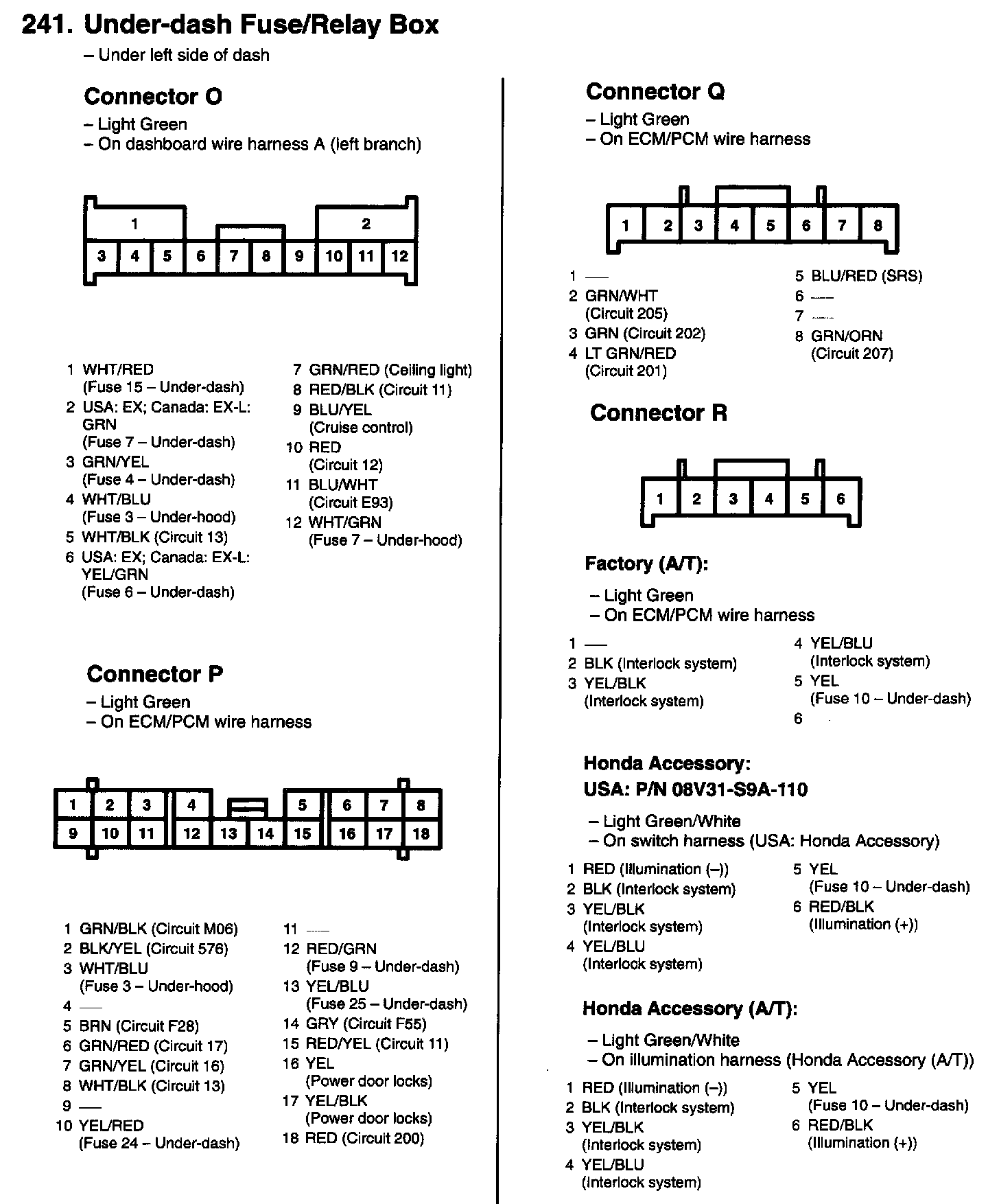

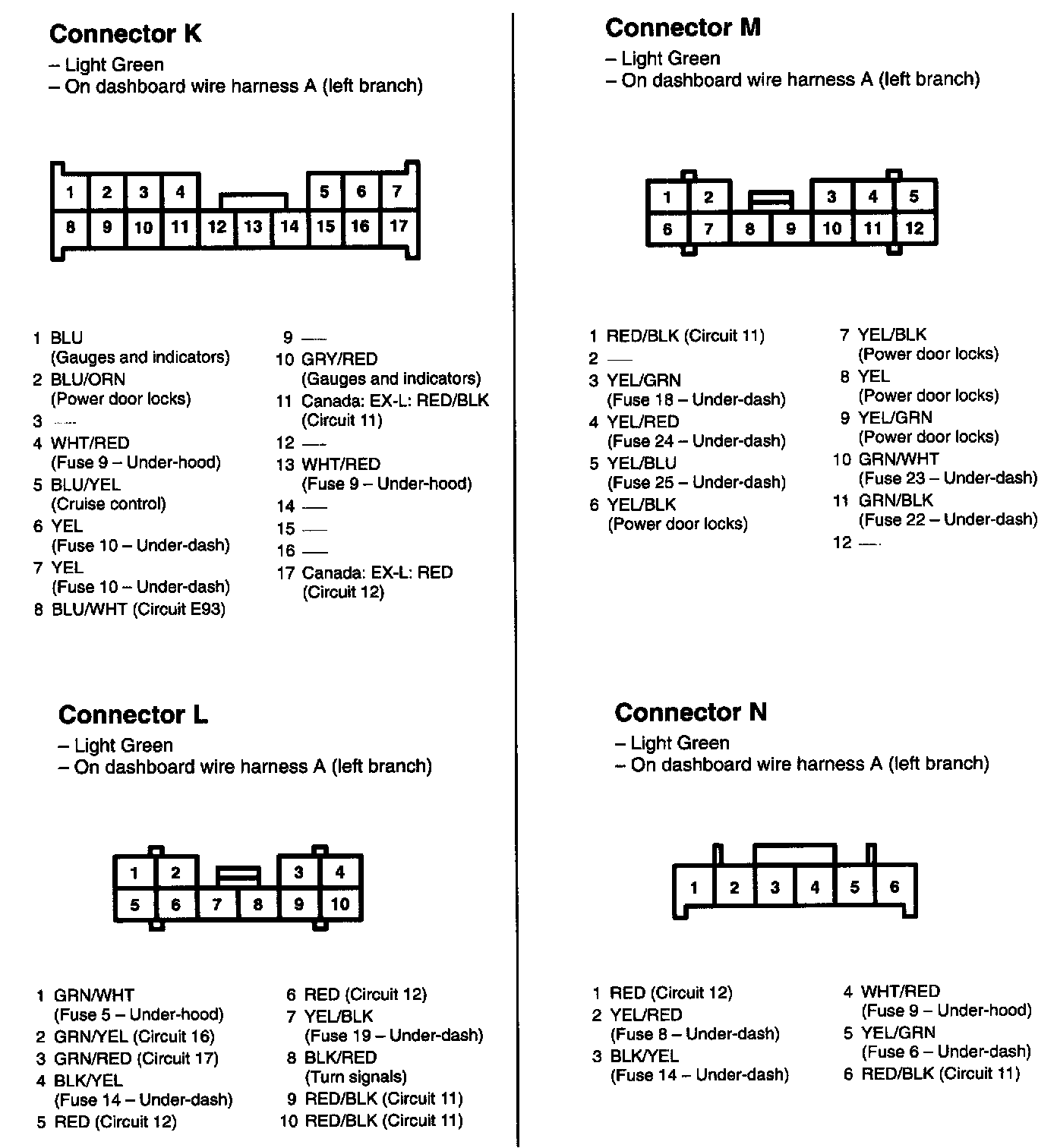

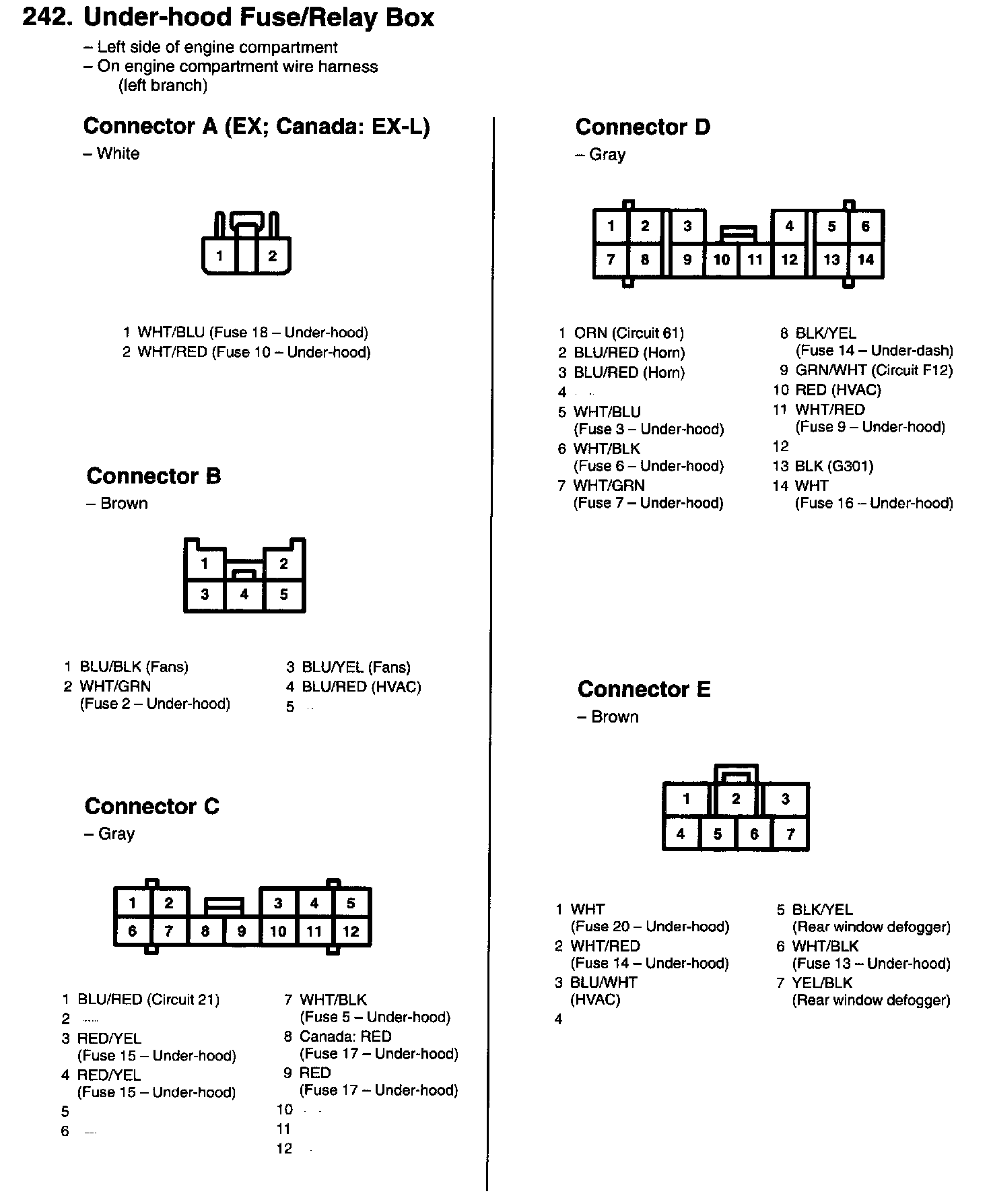

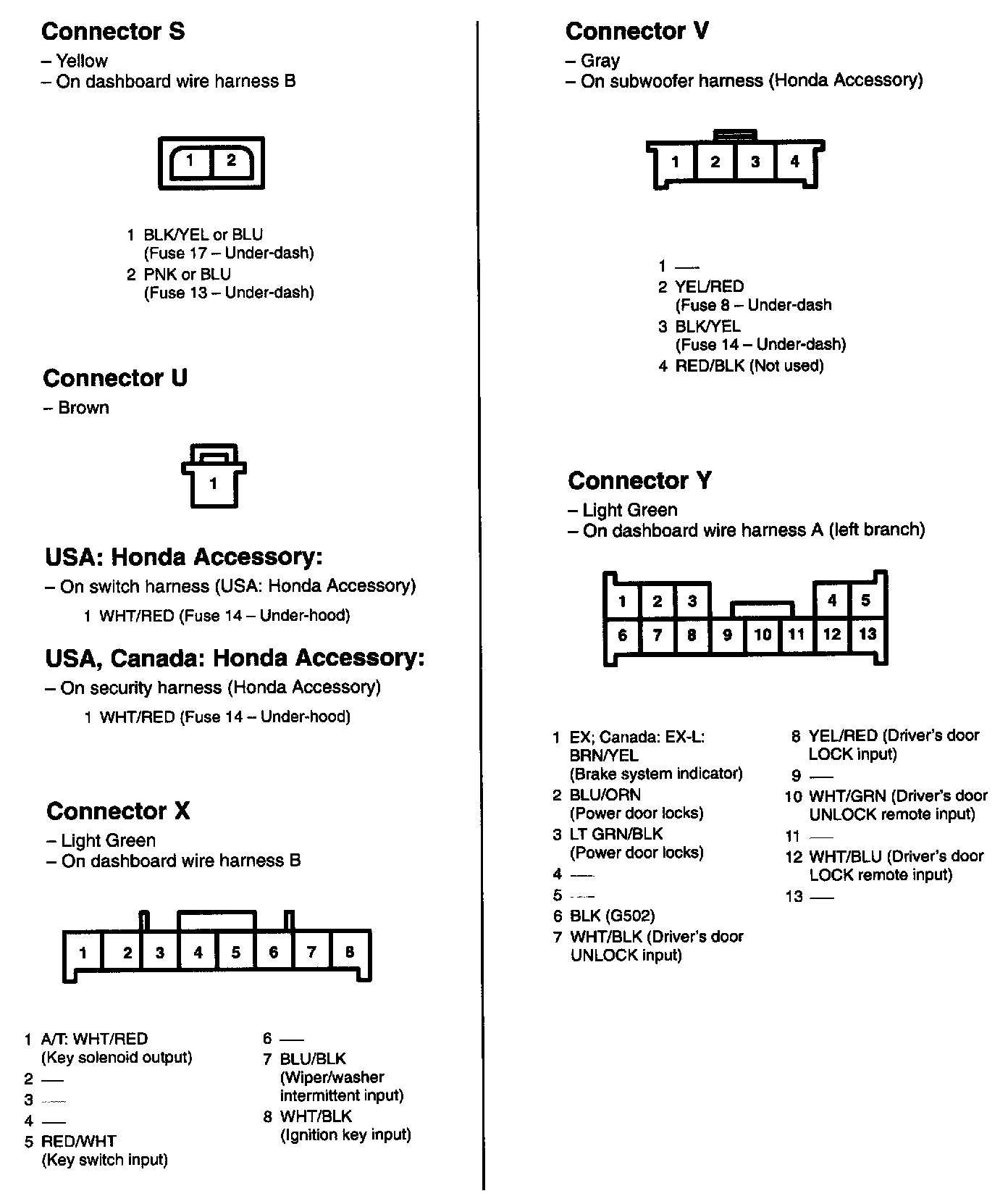

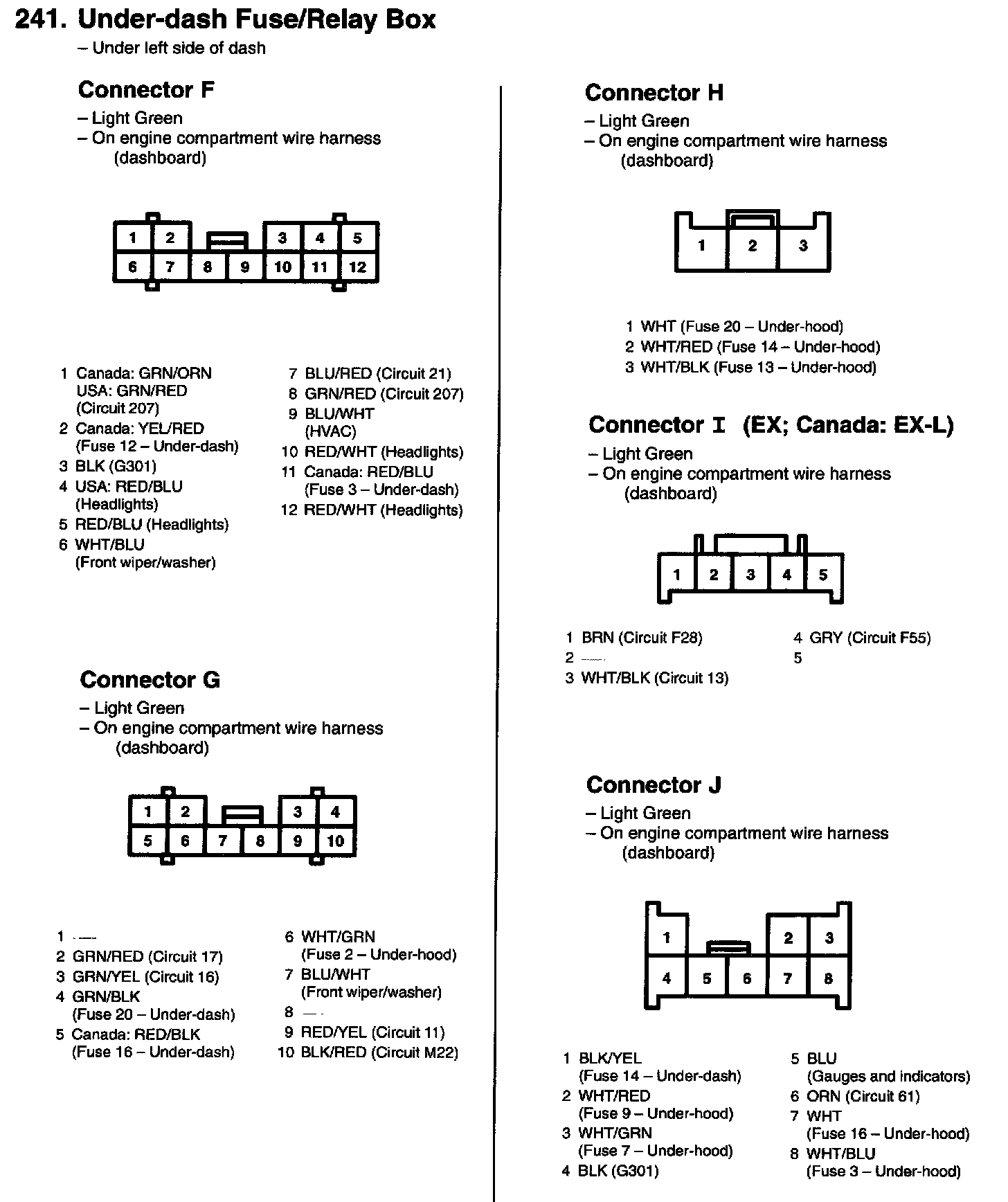

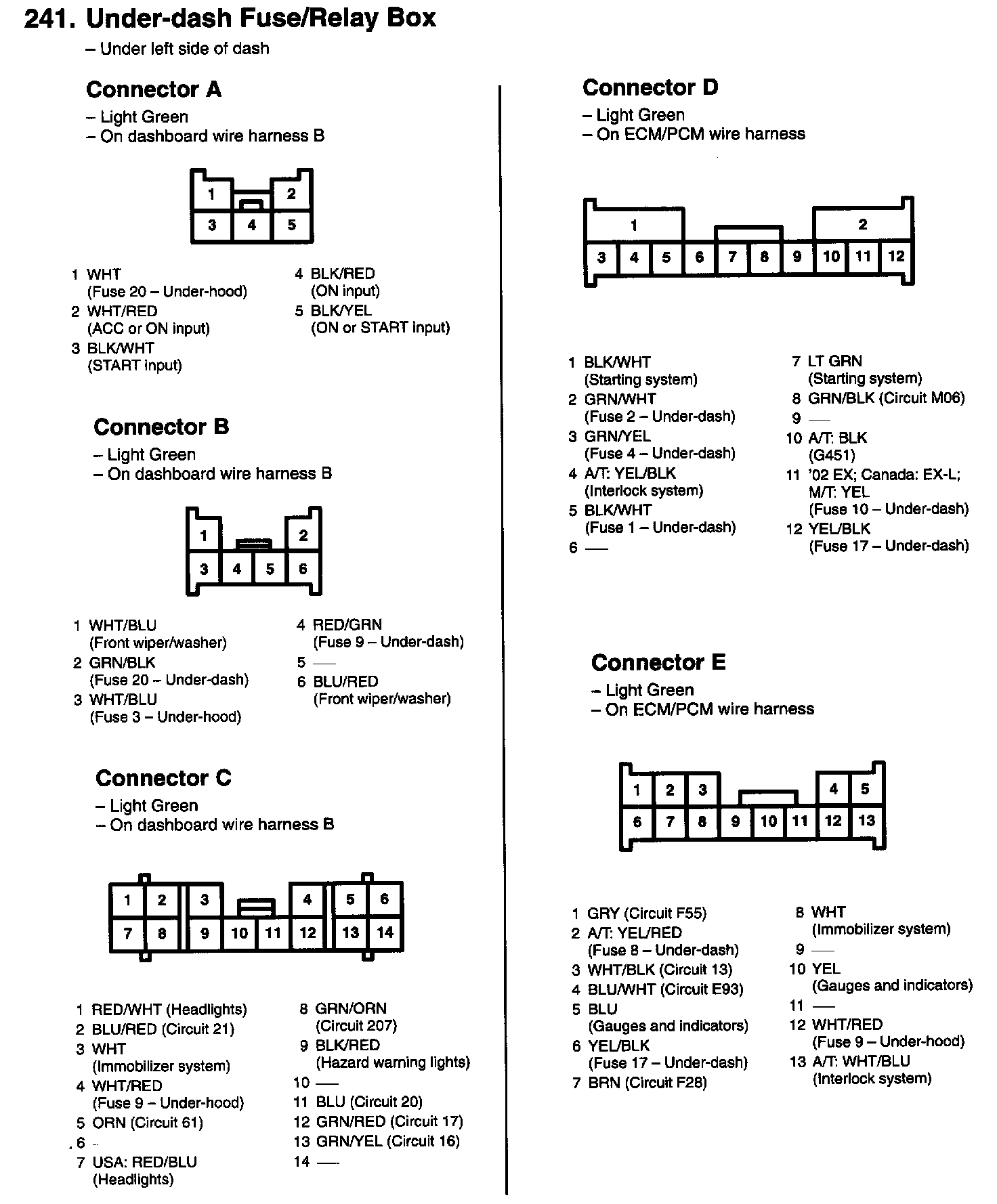

Relay Box
