Home >> Honda >> 2004 >> Accord L4-2.4L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Cylinder Head Assembly

Cylinder Head Assembly

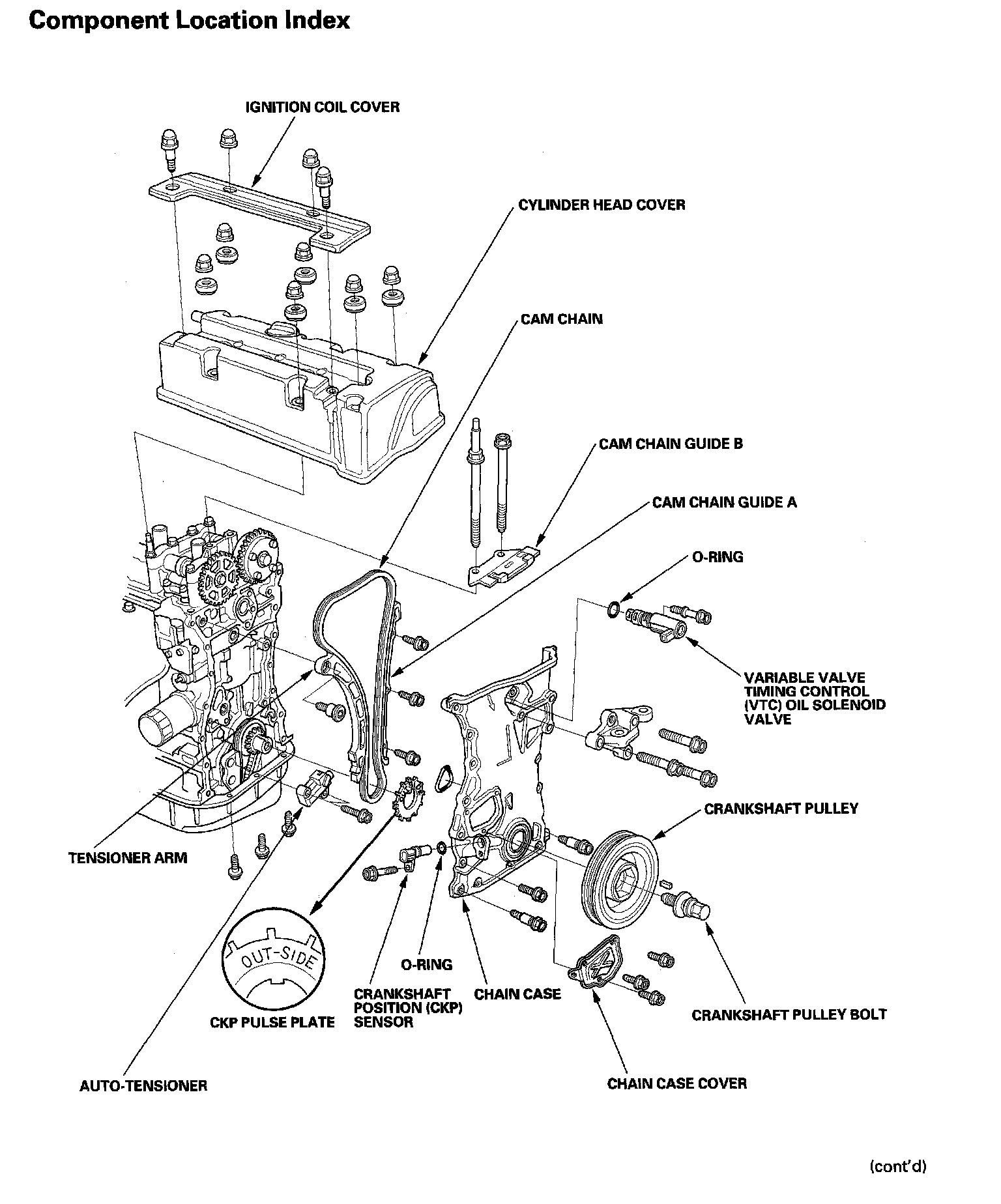

Cylinder Head Component Location Index:

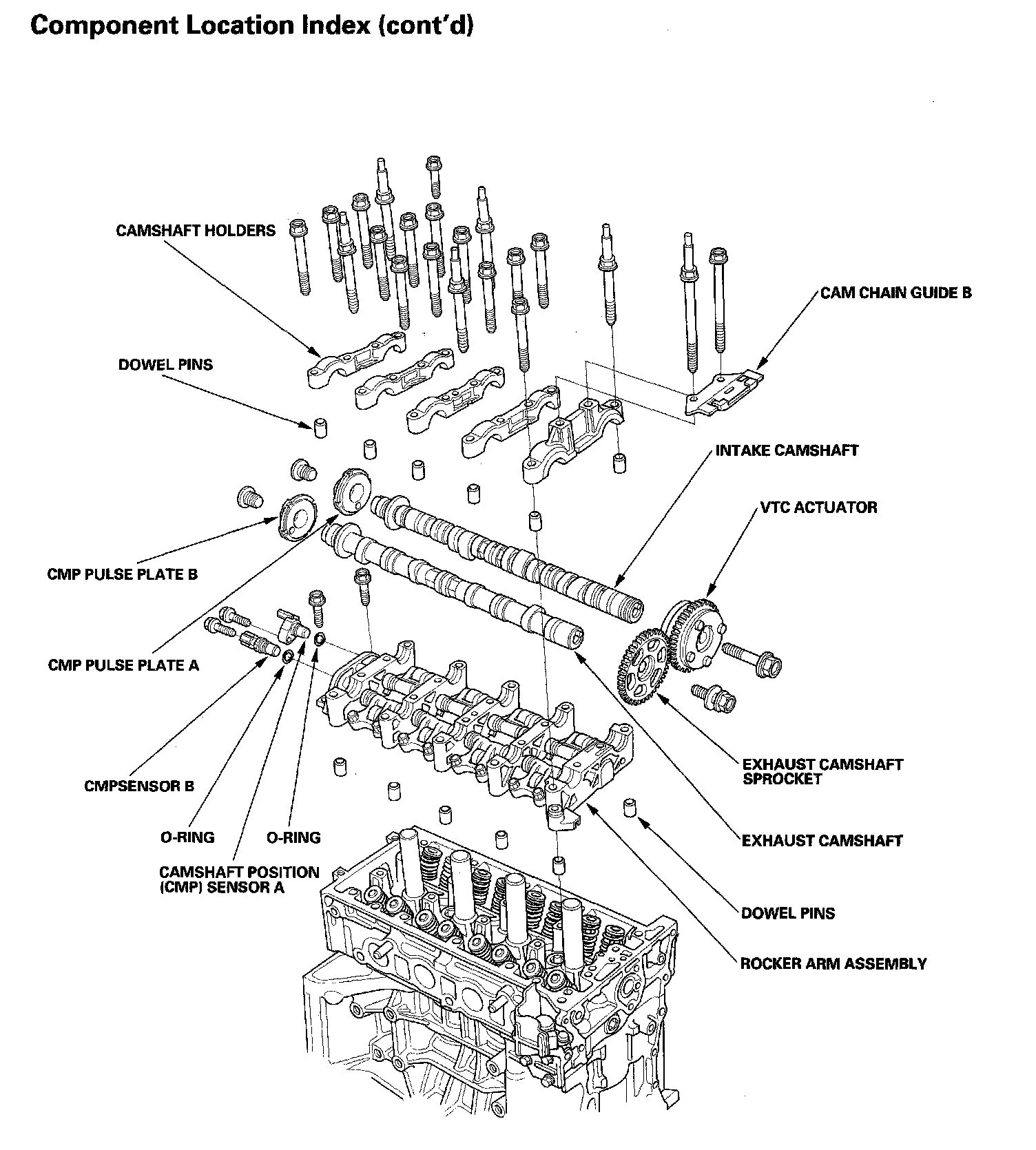

Cylinder Head Component Location Index:

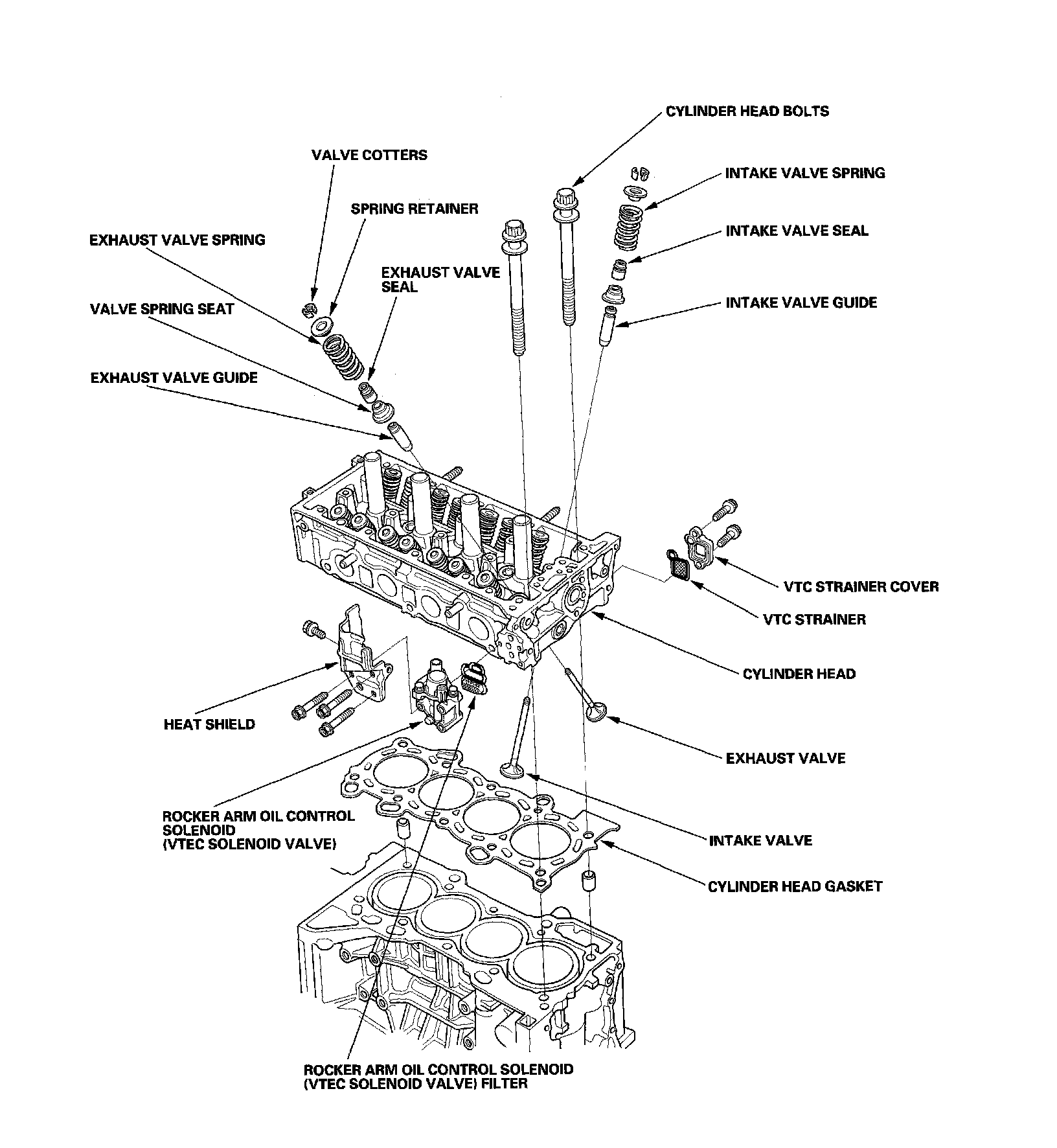

Cylinder Head Component Location Index:
