Under-Hood Fuse/Relay Box

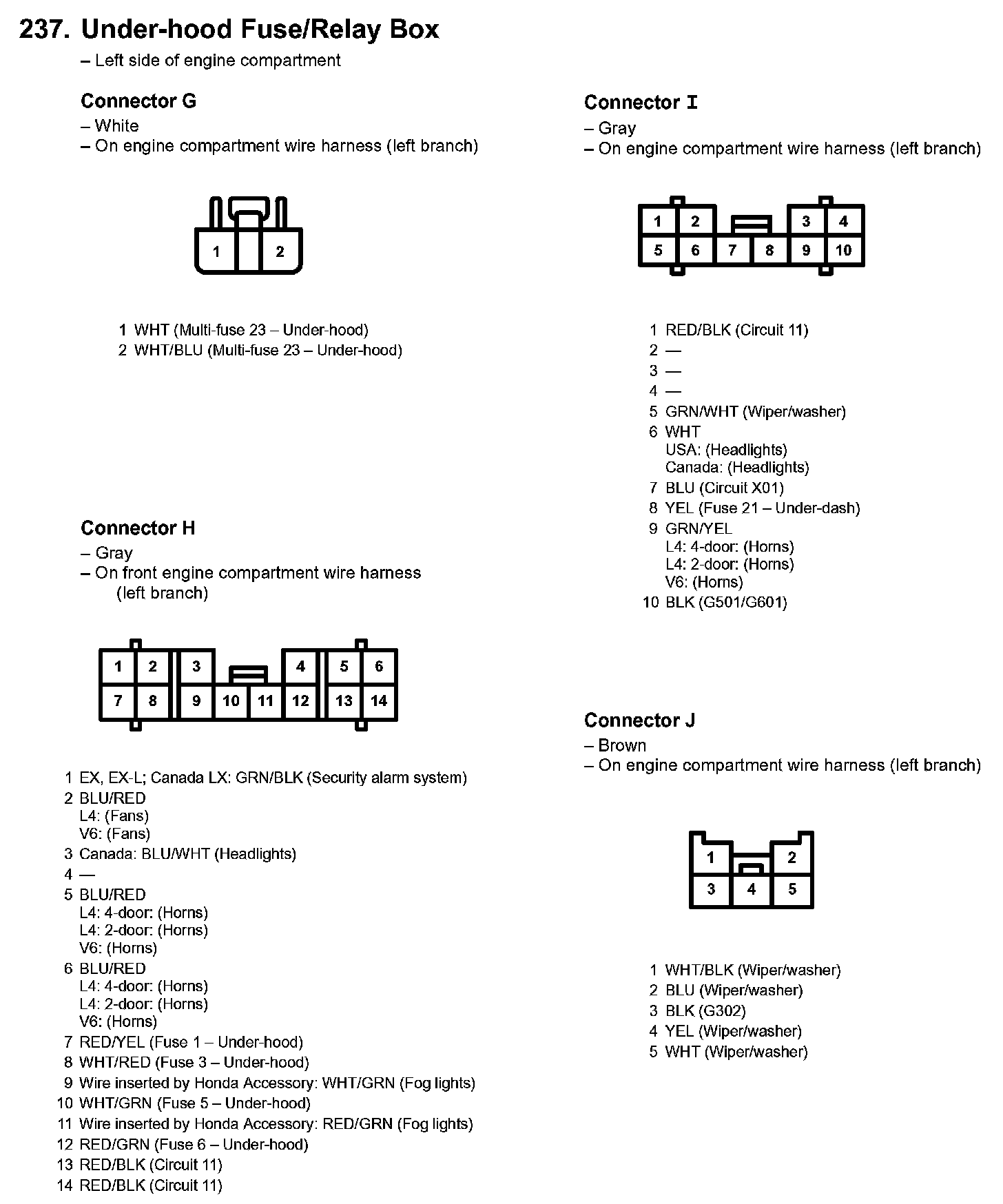

237. Under-hood Fuse/Relay Box Part 1:

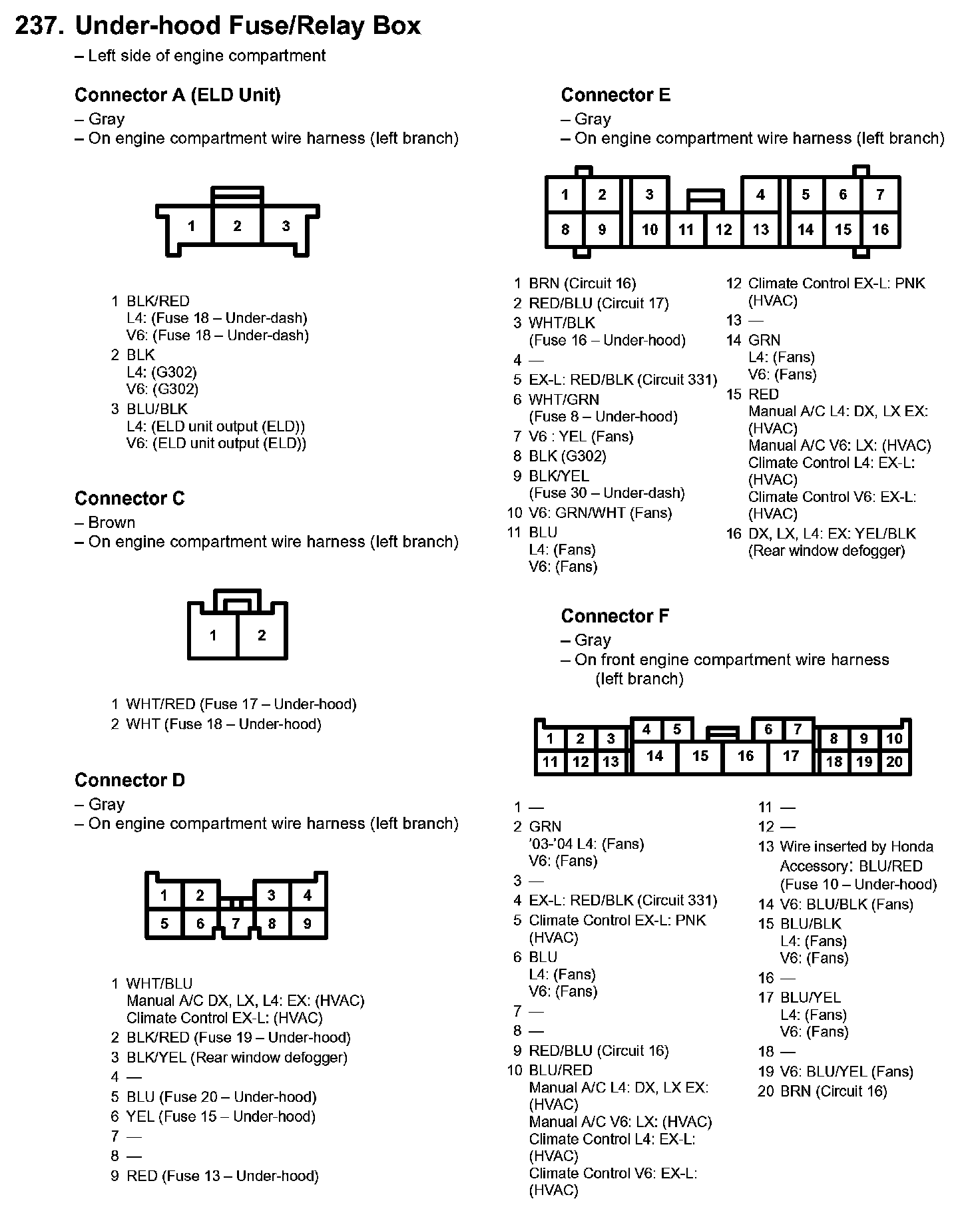

237. Under-hood Fuse/Relay Box Part 2:
