Home >> Honda >> 2003 >> Pilot V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Collision Avoidance and Parking Assist Systems >> Collision Avoidance Module

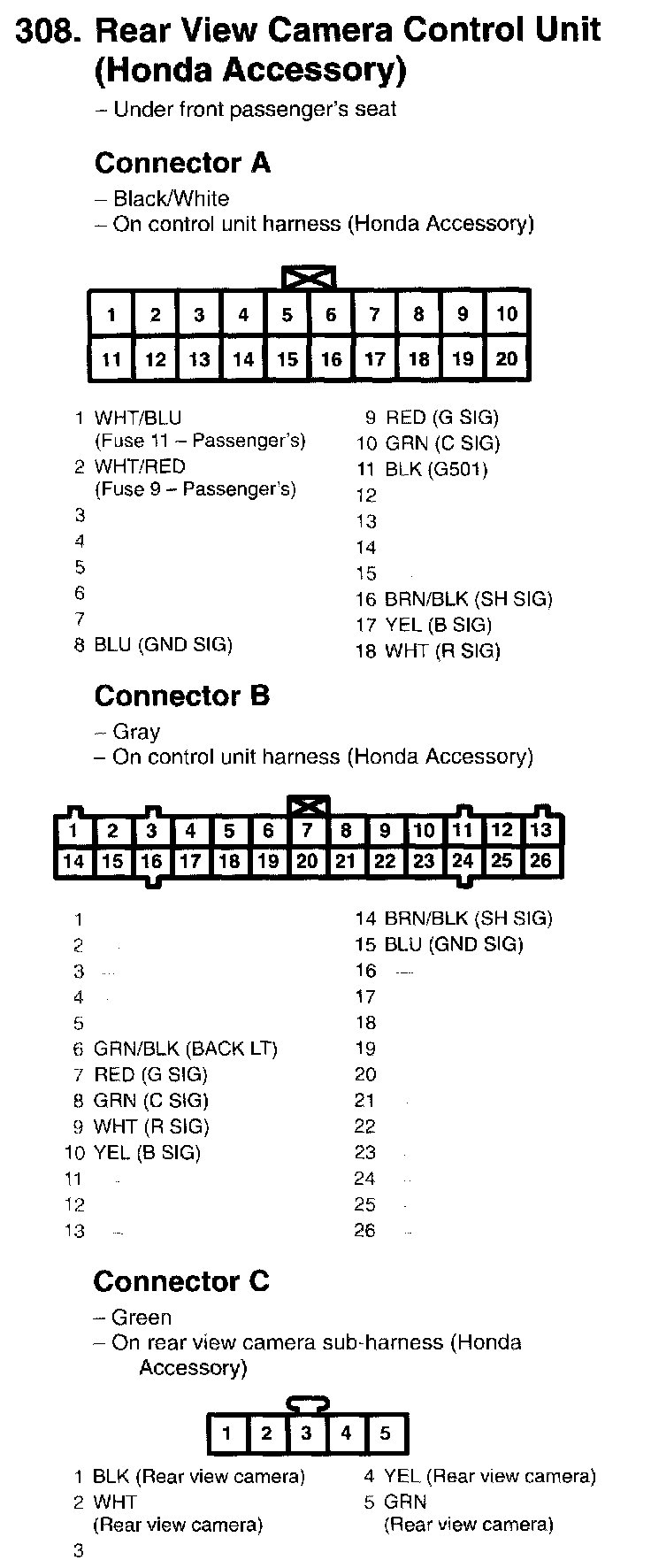

Collision Avoidance Module



(Honda Accessory):
