Honda
>>
2003
>>
Odyssey V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Entertainment Systems
>>

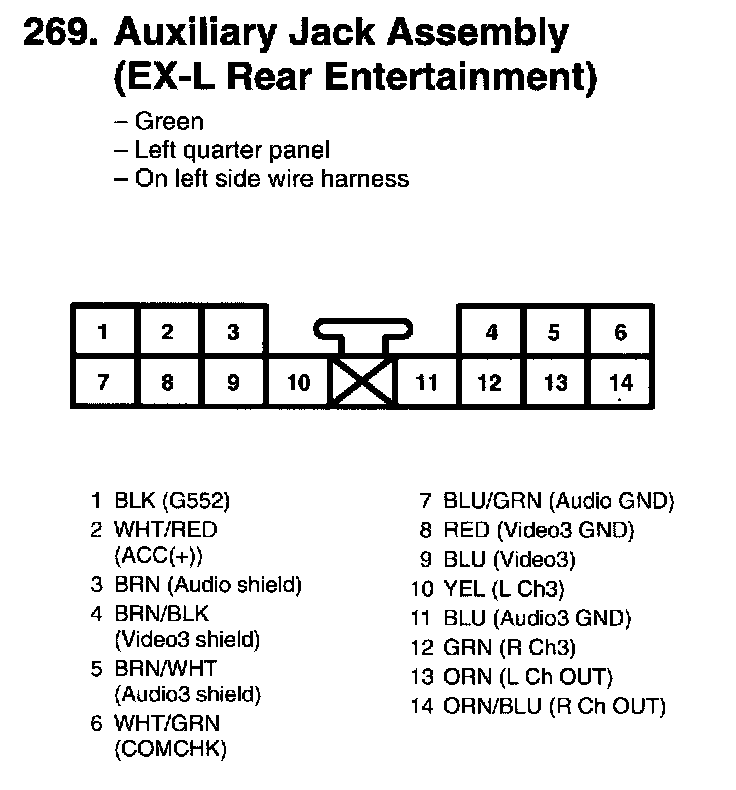

Auxiliary Input / Output Jack, Entertainment System
Auxiliary Input / Output Jack, Entertainment System
(EX-L Rear Entertainment):
