1999-2001 Models

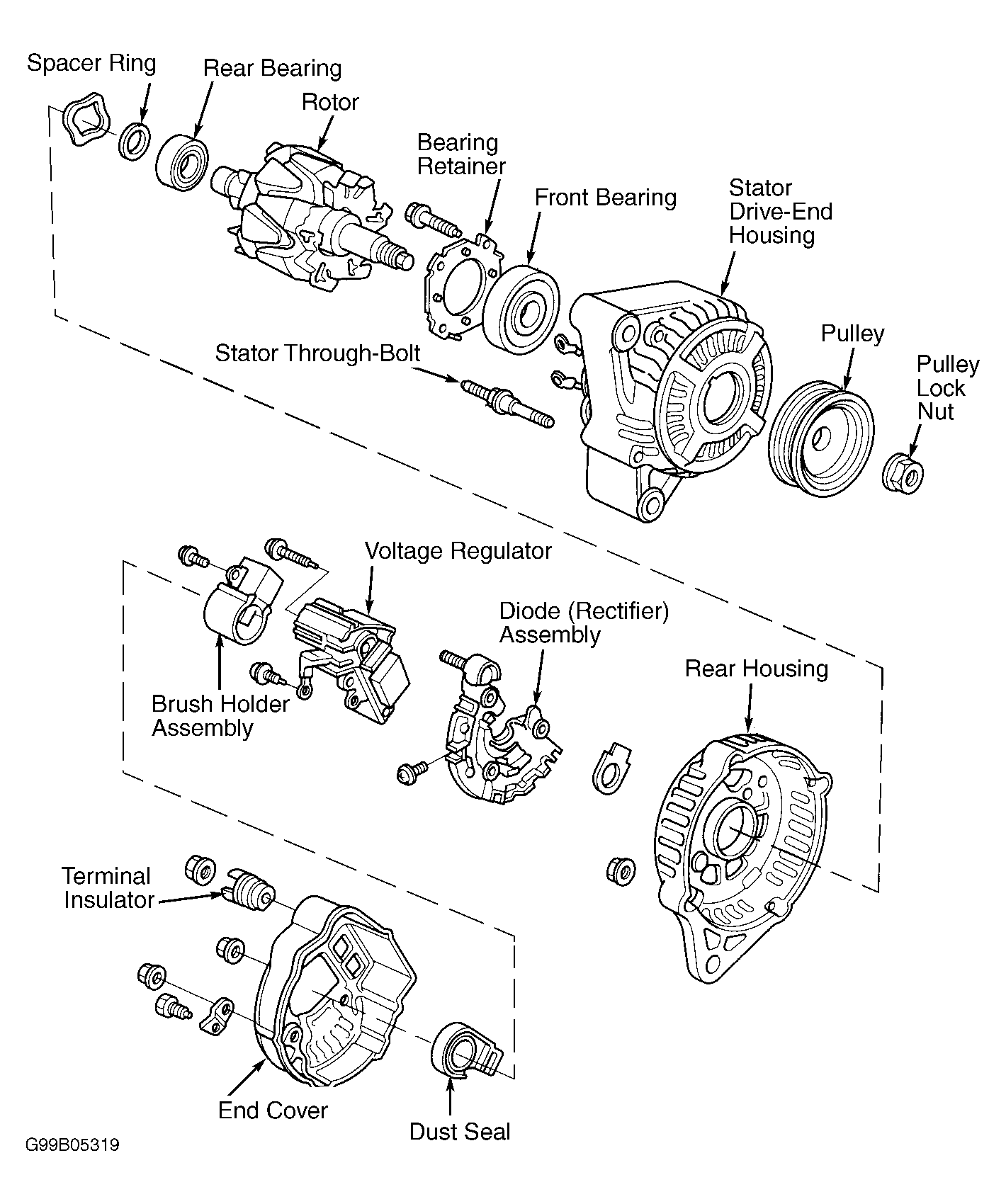

Fig 1: Exploded View Of Alternator (1999-2001 models)

G99B05319

Courtesy of AMERICAN HONDA MOTOR CO., INC.
